Industrial 3G WCDMA Modem (Asia Only)
Features
- Supports Tri-band WCDMA 2100/1900/850 MHz and Quad-band GSM 850/900/1800/1900 MHz.
- 4 KV ESD Protection.
- Designed for WCDMA, GPRS and SMS Applications.
- Supports TCP Server, TCP Client, UDP Client Connection stack from 3G or GPRS.
- Support Standard AT Commands.
- LED Indicators for Power, GSM and GPS(only I-8213W-3GWA) Indication.
- High Reliability in Harsh Environment.
- Support 32-channels GPS and NMEA v0183 v3.01(only I-8213W-3GWA).
- PPS: 100 ms pulse output/sec for precise timekeeping and time measurement(only I-8213W-3GWA).
- Support XP-8000, WinPAC-8000, LinPAC-8000, ViewPAC, iPAC-8000.
Introduction

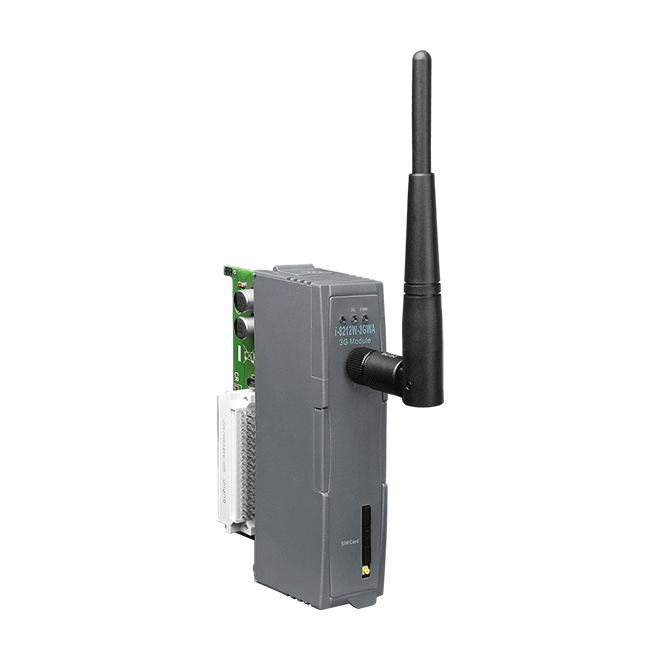

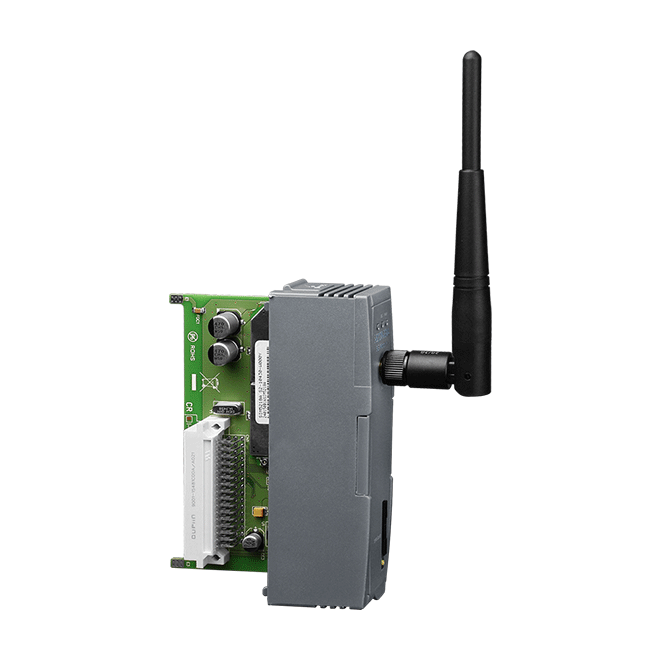

The I-8212W-3GWA/I-8213-3GWA is an industrial Tri-band 3G module with GPS function (only I-8213W-3GWA) that work on frequencies of WCDMA 2100/1900/850 MHz and GSM 850/900/1800/1900 MHz. These modules utilize the 2G/3G network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. These modules has the integrated TCP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of theirs, the systems can be SMS and GPRS or 3G connection applications with our PAC series like iPAC-8000, WinPAC-8000, LinPAC-8000 or XP-8000.

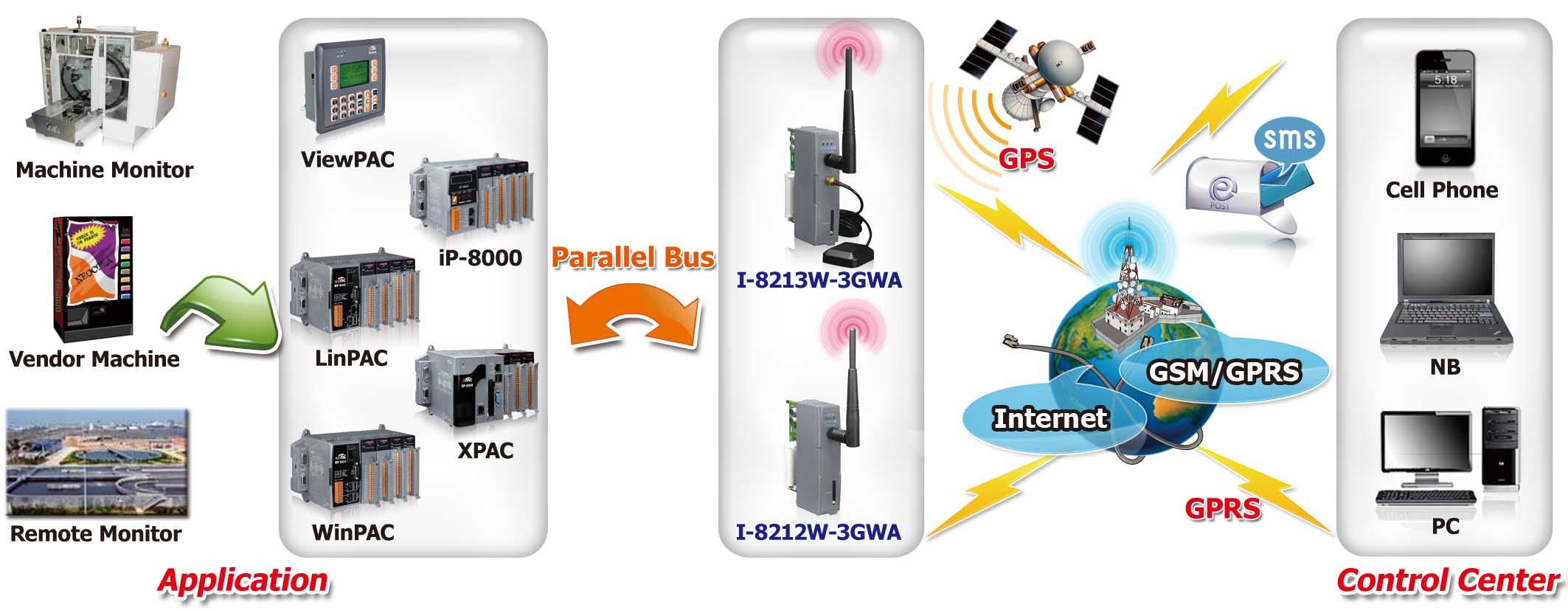

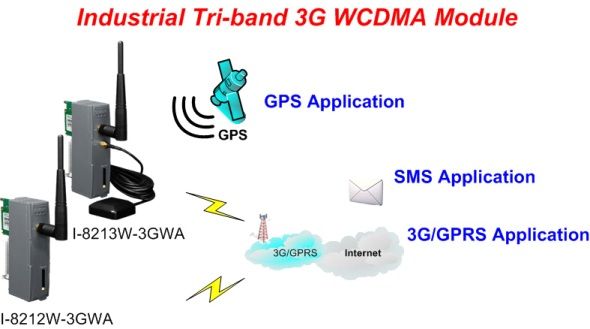

Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x 2G/3G |
| 2G System | |
|---|---|
| Data Transmission Rate | GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps |
| Frequency Band | 850/900/1800/1900 MHz |
| Coding Schemes | CS 1, CS 2, CS 3, CS 4 |
| GPRS Multi-slot | GPRS class 12/10; GPRS station class B |
| Power Class | Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 MHz) |
| 3G System | |
|---|---|
| Frequency Band | WCDMA 2100/1900/850 MHz |
| Power Class | Class 3 (250mW @ WCDMA/HSPA) |
| SMS Mode | MT, MO, CB, Text and PDU mode |
| Power | |
|---|---|
| Consumption | Idle: 0.16 A @ 5 VDC; Data Link: 0.2 ~ 1.64 A (peak) @ 5 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 30 x 85x 114 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25℃ to 70℃ |
| Storage Temperature | -30°C ~ +80 °C |
| Humidity | 5~95% RH, non-condensing |
| Support Software | |||
|---|---|---|---|
| Auto-dialer | Auto dial-up connection program | ||
