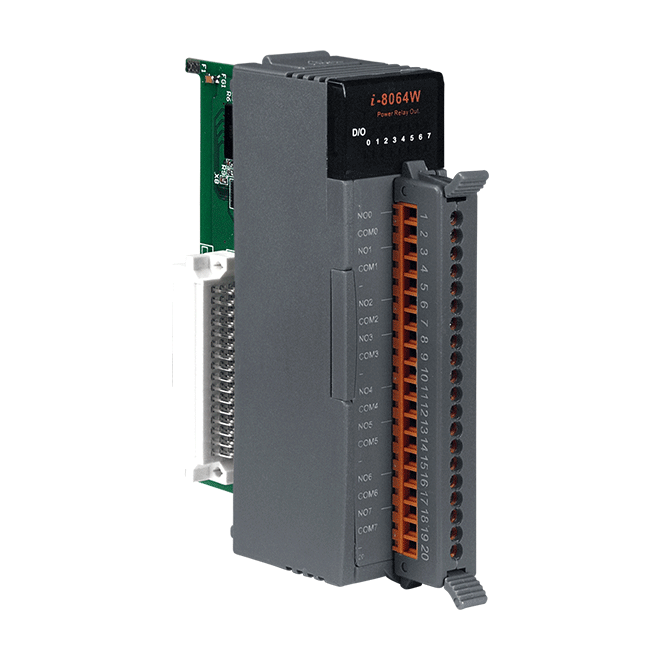

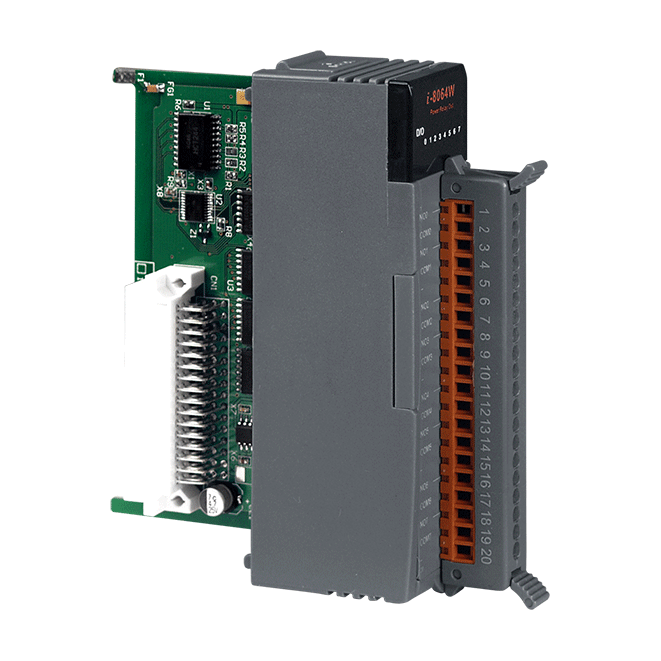

I-8064W-G
8-ch Power Relay Module
Features
• 8-channel Power Relay Output
• Form A Power Relay Output
• 500 VDC Intra-module Isolation
Introduction
The I-8064W module provides 8 Form A Relay Output channels, and is an ideal solution for highpower applications. The I-8064W includes 8 LED indicators that can be used to monitor the status of the Relay Output channels, 4 kV ESD protection and 500 VDC intra-module isolation are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 8 x I/O |
| Digital Output | |
|---|---|
| Load Current | 5.0 Arms |
| Relay Output | |
|---|---|
| Channels | 8 (Form A, Normal Open) |
| Type | Power Relay |
| Contact Rating | 5 A @ 250 VAC (47 ~ 63 Hz); 5 A @ 30 VDC |
| Operate Time | 6 ms Max. |
| Release Time | 3 ms Max. |
| Electrical Endurance | 100,000 Min. Resistive |
| Mechanical Endurance | 2 x 100,000,000 Min. |
| Power | |
|---|---|
| Consumption | 1.1 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 5 ~ 95 % RH, Non-condensing |
