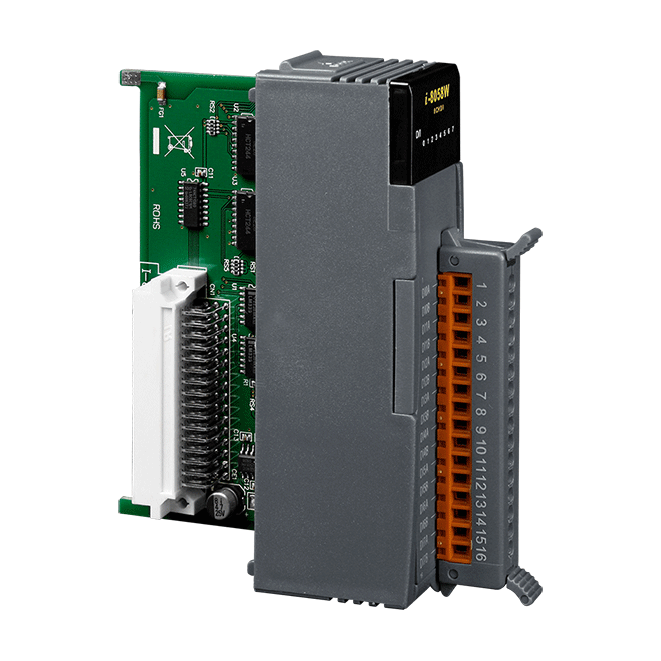

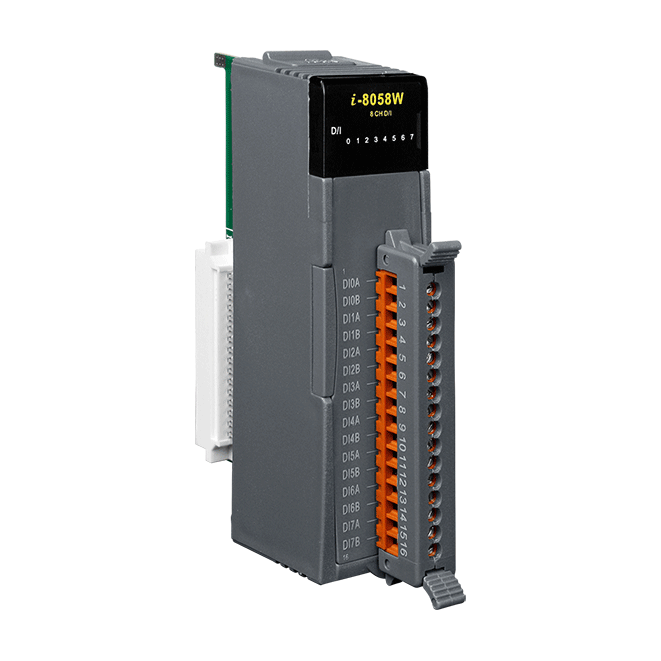

I-8058W-G
8-ch Isolated DI (80~250 VAC) Module
Features
• 8-channel AC Digital Input
• Photocouple Isolation
• 5000 Vrms Intra-module Isolation
Introduction
The I-8058W is an 8-channel AC/DC Digital Input module with high voltage isolation. The ON voltage level for the module range can be between 80 ~ 250 VAC/VDC. The I-8058W include 8 LED indicators that can be used monitor DI channel status. 4 kV ESD protection and 5000 Vrms intra-module isolation are standard.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | 5000 Vrms |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 8 x I/O |
| AC Current Input | |
|---|---|
| Frequency | 50 ~ 400 Hz |
| Digital Input | |
|---|---|
| Channels | 8 AC (Differential) |
| Type | Wet Contact |
| ON Voltage Level | +80 ~ +250 VAC |
| OFF Voltage Level | +30 VAC Max. |
| Input Impedance | 68 KΩ, 1 W |
| Power | |
|---|---|
| Consumption | 0.6 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 5 ~ 95 % RH, Non-condensing |
