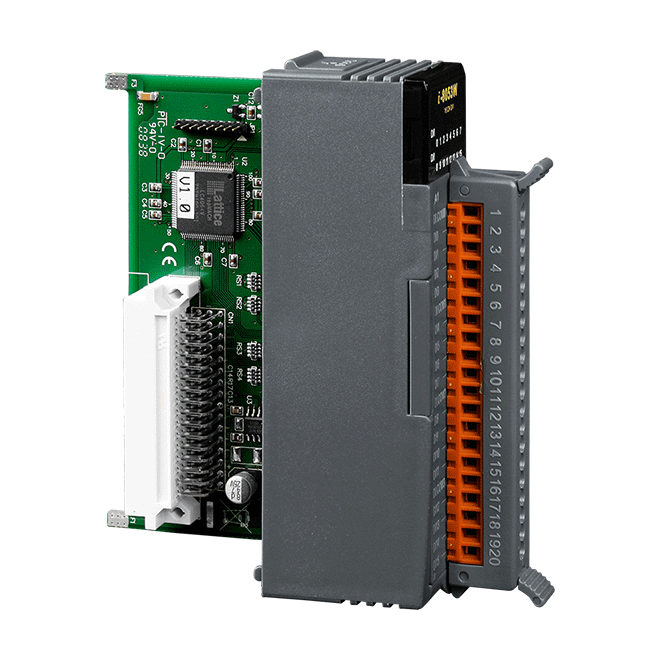

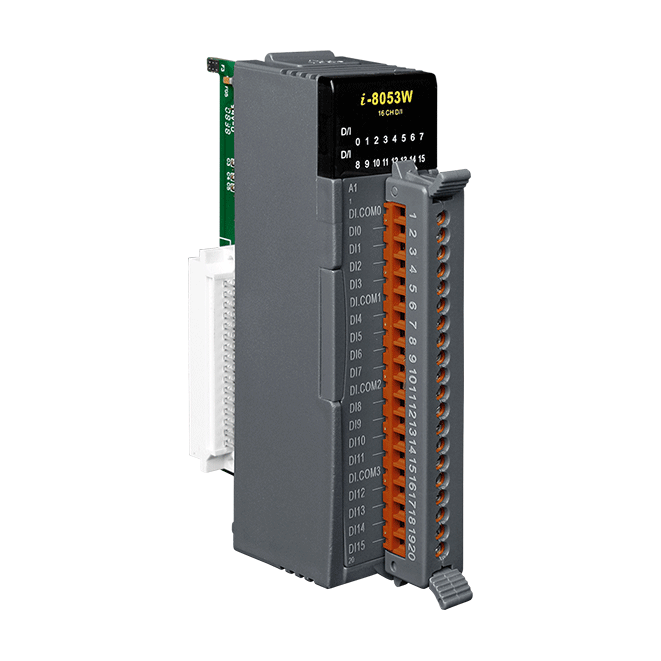

I-8053W-A1-G

16-channel Isolated DI (Wet, 3.5~30 VDC) Module

Features

• 32-Channel Digital Input
• Support Sink/Source Type Digital Input
• Photocouple Isolation Protection

Introduction

The I-8053W-A1 oﬀer 16 channels for Digital Input, catering for wet contact. The I-8053W-A1 provides 16 LED indicators that can be used to monitor the DI channel status. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise immunity capabilities in industrial environments.

Applications

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES I-8053W-A1-G CR	DESCRIPTION16-channel Isolated DI (Wet, 3.5~30 VDC) Module (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Isolation
Intra-module Isolation	3750 VDC

EMS Protection
ESD (IEC 61000-4-2)	± 4 kV Contact for Each Terminal

LED Indicators
Status	1 x Power and Communication 16 x I/O

Digital Input
Channels	16
Type	Wet Contact
Sink/Source (NPN/PNP)	Sink/Source
ON Voltage Level	+3.5 ~ +30 VDC
OFF Voltage Level	+1 VDC Max.
Input Impedance	10 kΩ, 1W

Power
Consumption	0.4 W Max.

Mechanical
Dimensions (mm)	30 x 102 x 115 (W x L x H)

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +85 °C
Humidity	5 ~ 95 % RH, Non-condensing
