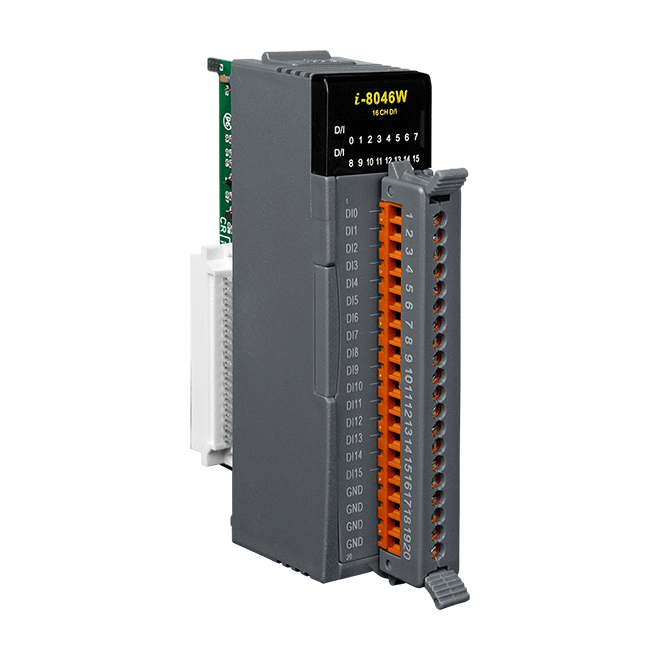

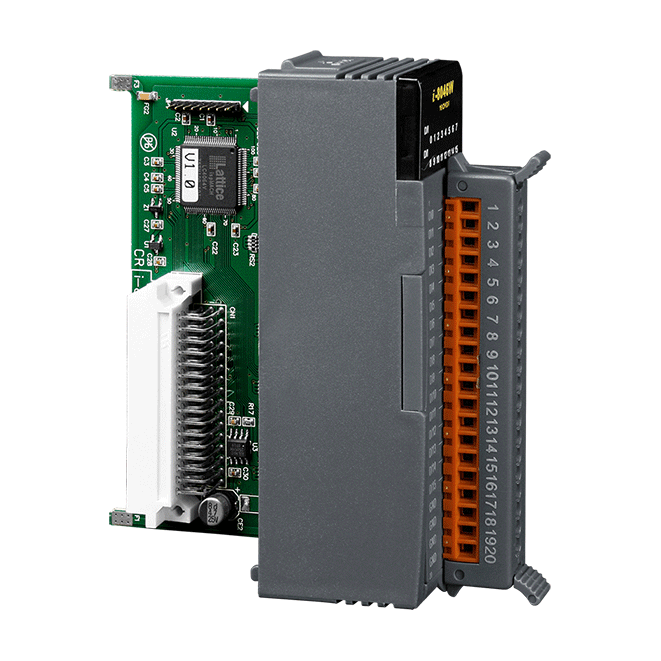

I-8046W-G
16-ch Isolated DI Module
Features
• Source Type Digital Input
• Photocouple-isolation protection
• Long-distance Measurement
Introduction
The I-8046W is a 16-channel Digital Input Module that can be used for long distance measurement, with an eff ective distance of up to 500 meters for Dry Contact connections. 16 LED indicators are provided for monitoring the status of the Digital Input channels. In addition to Photocouple-isolation, ±4 kV ESD protection are provided as well as 3750 VDC intra-module isolation to enhance noise immunity capabilities in industrial environments.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 16 x I/O |
| Digital Input | |
|---|---|
| Channels | 16 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Connect to GND |
| OFF Voltage Level | Open |
| Effective Distance | 500 m Max. |
| Power | |
|---|---|
| Consumption | 1.3 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
