32-ch Isolated DO Module
Features
• 32-channel Open Collector Output
• Sink Type Digital Output
• 3750 VDC Intra-module Isolation
• Each Digital channel has its own status LED
• Sink Type Digital Output
• 3750 VDC Intra-module Isolation
• Each Digital channel has its own status LED
Introduction

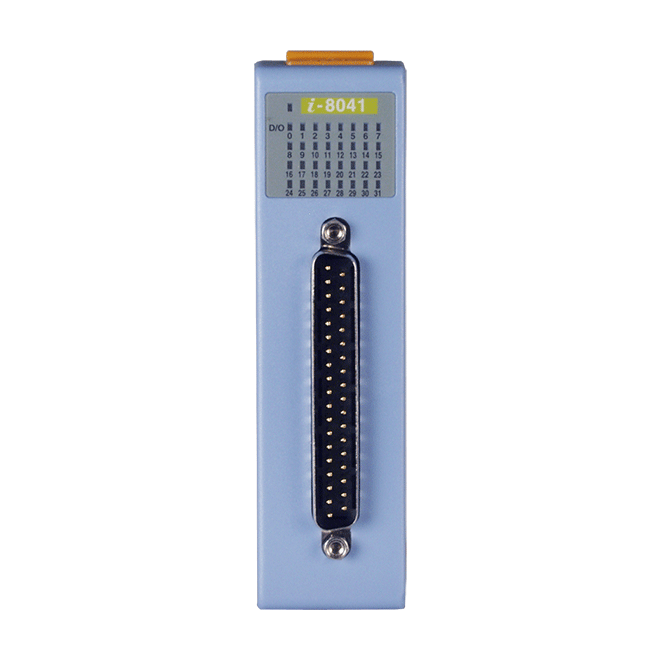

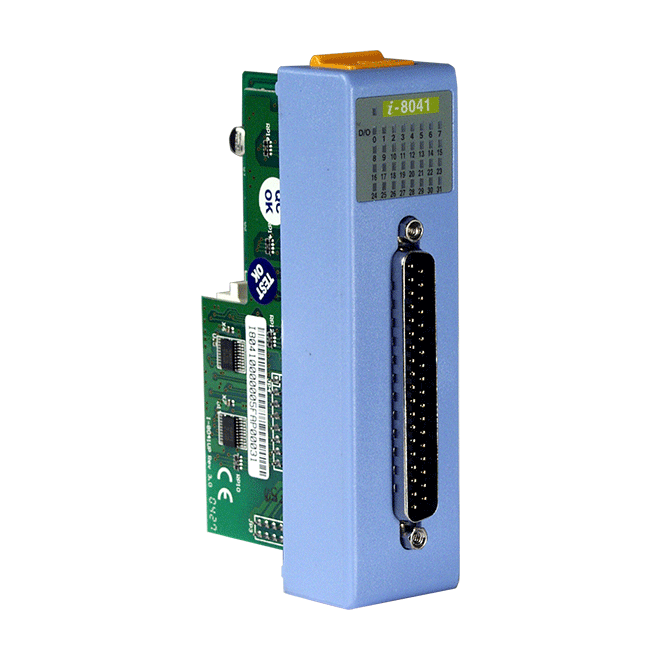

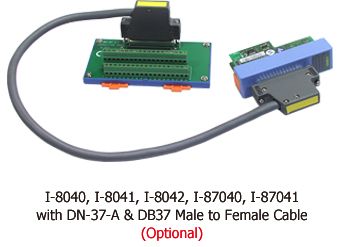

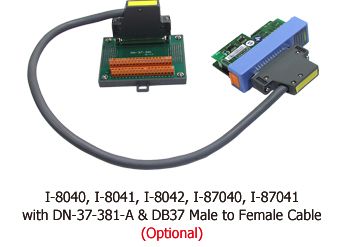

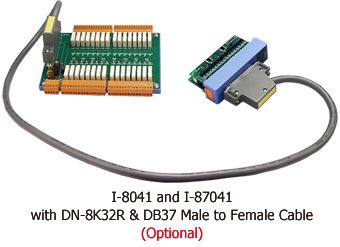

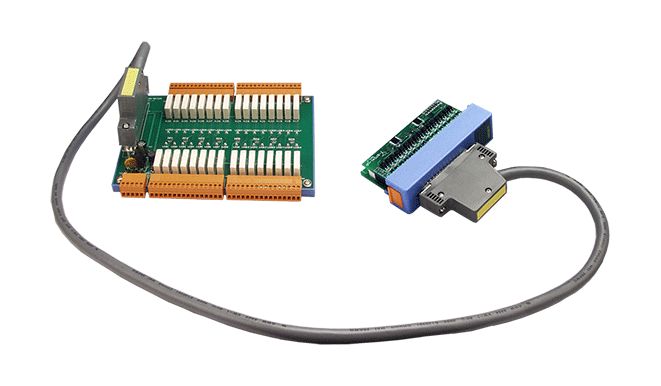

The I-8041 module offers 32 Digital Output channels, each of which features Photocouple isolation. The I-8041 supports Sink Type Output using an open collector. The I-8041 includes 32 LED indicators that can be used to monitor the status of the Digital Output channels. ±4 kV ESD protection and 3750 VDC intra-module isolation is provided as standard. The I-8041 can be paired with a daughterboard, such as the DN-37-381-A CR for easy wiring, or the DN-8K32R for Relay Output.
 |
 |
 |
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 32 x I/O |
| Digital Output | |
|---|---|
| Channels | 32 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +30 VDC |
| Load Current | 100 mA/Channel |
| Power | |
|---|---|
| Consumption | 1.5 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 114 x 66 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
