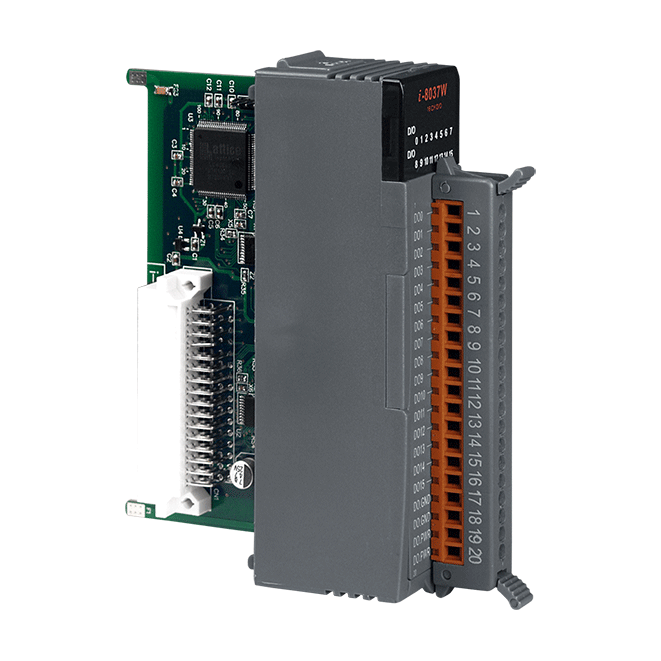

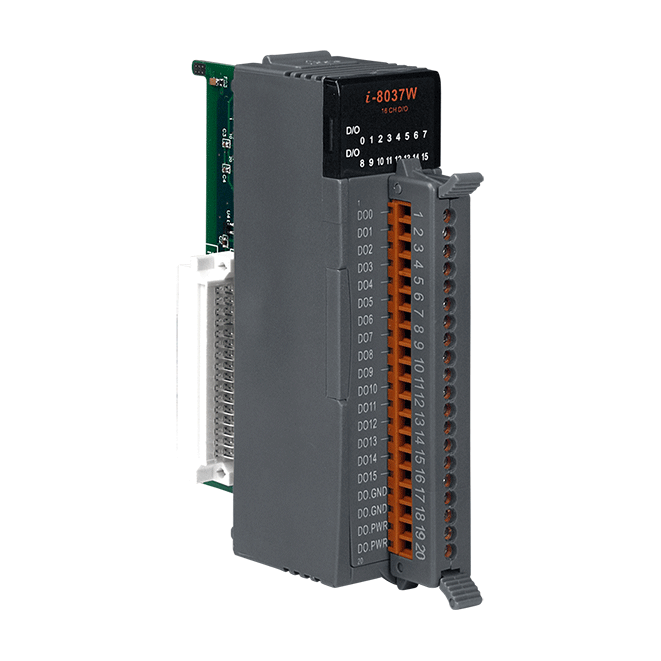

I-8037W-G
16-ch Isolated DO Module
Features
• Source Type Digital Output
• Photocouple-isolation protection
Introduction
The I-8037W provides 16 channels for Digital Output, each of which features Photocouple-isolation. The I-8037W supports Source Type output with short circuit protection and each channel can drive 100 mA load. There are options for confi guring power-on and safe digital output values. ±4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enrich the noise protection ability for industrial environment.
Applications
• Industry Automation
• Industrial Machinery
• Building Automation
• Food & Beverage
• Semiconductor
• Fabrication
• Control System
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 16 x I/O |
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | +5 ~ +30 VDC |
| Load Current | 100 mA/Channel |
| Power | |
|---|---|
| Consumption | 0.9 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
