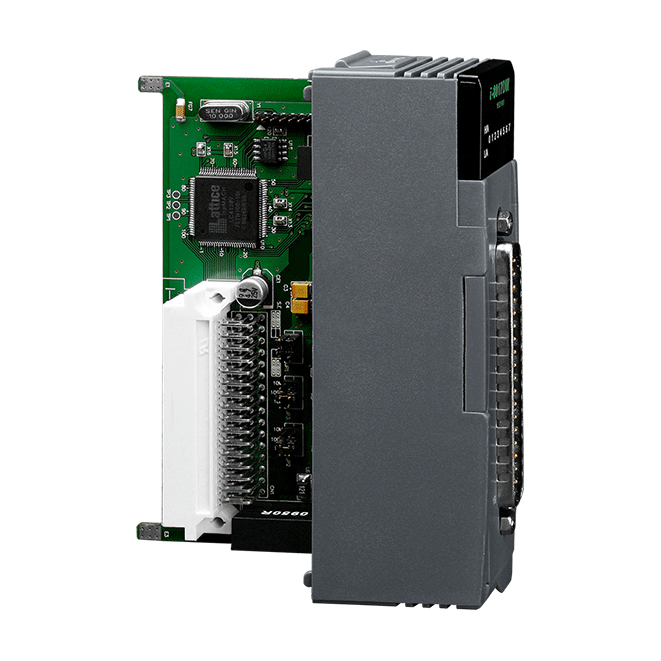

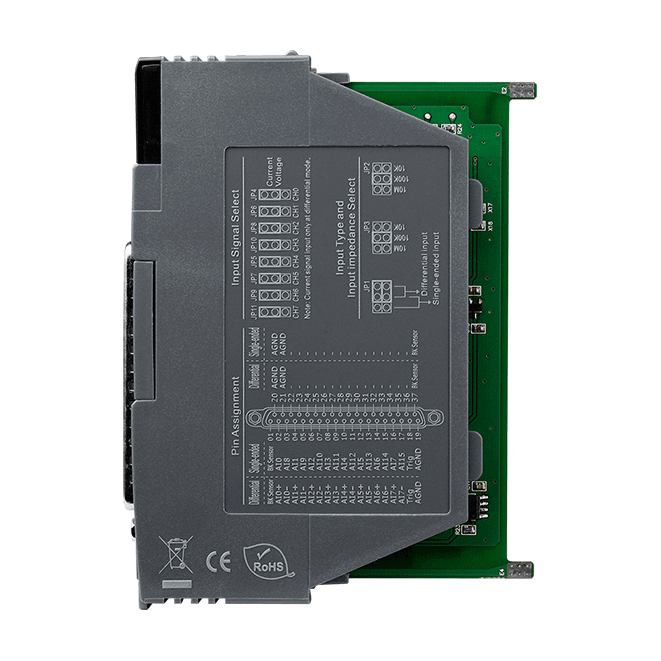

I-8017DW-G

8/16-ch AI Module

Features

• 8 Diﬀerential/16 Single-ended Analog Inputs
• Voltage or Current (Jumper Select) Input
• 14-bit 100 kHz AD Converter
• Internal Trigger
• Individual Channel Conﬁguration

Introduction

The I-8017DW is a high performance Analog Input Module. Up to 16 single-ended or 8 differential input channels are provided with 14-bit of resolution and 90 kS/s sampling rate. Each channel can be conﬁgured to an individual input range of ±10 VDC, ±5 VDC, ±2.5 VDC, ±1.25 VDC or ±20 mA. The modules also provide ±4 kV ESD protection as well as 2500 VDC intra-module isolation. All the three modules can be used to measure voltage and current source. On the I-8017DW, an internal resistor is jumper-selectable for diﬀ erential current input. The jumper is factory default setting for voltage measurement on the I-8017DW.

Applications

• High speed data acquisition system
• Process monitor and control
• Vibration analysis
• Digital pattern generator from digital I/O port

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY

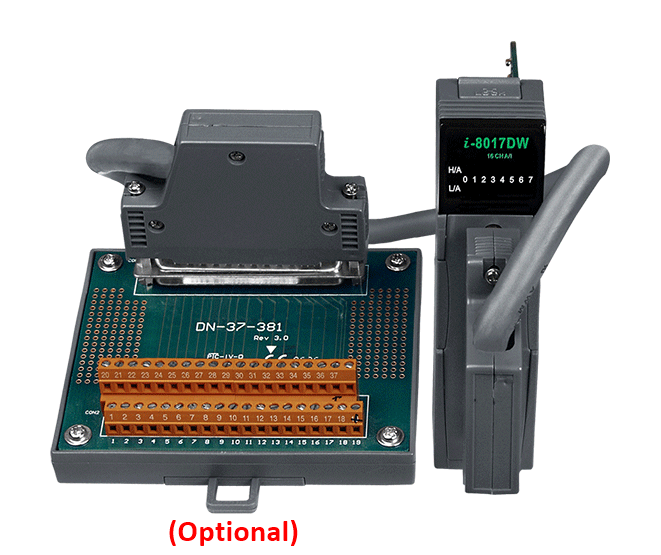

PRODUCT SERIES I-8017DW-G CR	DESCRIPTION8/16-ch Analog Input Module with DB37 Connector (Current Input Mode: Jumper Select) (RoHS) Includes CA-4002F (DB37 connector Female with plastic cover)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Isolation
Intra-module Isolation	2500 VDC

EMS Protection
ESD (IEC 61000-4-2)	± 4 kV Contact for Each Terminal

LED Indicators
Status	1 x Power and Communication 16 x I/O

Analog Input
Channels	16-ch Single-ended/8-ch Differential
Range	Voltage: ±10 VDC, ±5 VDC, ±2.5 VDC, ±1.25 VDC Current: ±20 mA, Jumper Selectable
Resolution	14-bit
Accuracy	±0.1% of FSR
Sampling Rate	Single Channel Polling Mode: 90 kS/s Single Channel Interrupt Mode: 50 kS/s 8 channel Scan Mode: 16 kS/s
Bandwidth	100 kHz
Input Impedance	20 K, 200 K, 20 M (Jumper Selectable)
Individual Channel Configuration	Yes
Zero Drift	±0.1 uV/°C
Span Drift	±10 ppm/°C
