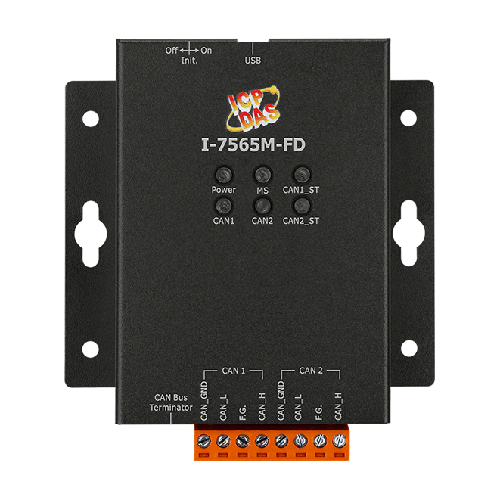

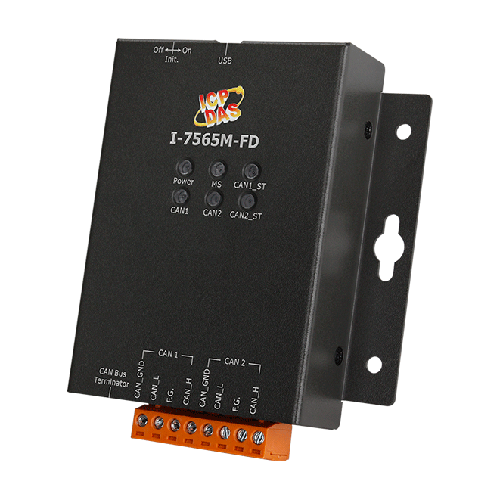

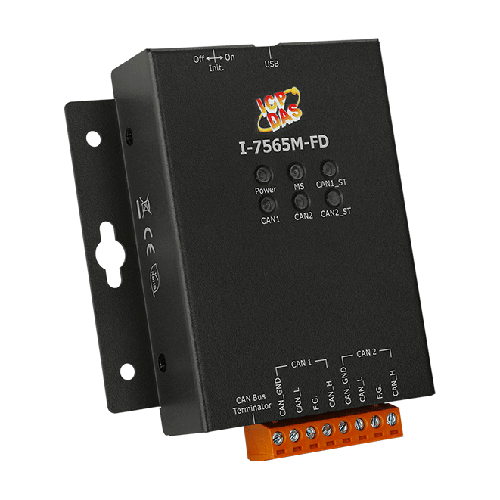

I-7565M-FD

USB to 2-port CAN/CAN FD Bus Converter
I-7565M-FD
I-7565M-FD
I-7565M-FD
I-7565M-FD
I-7565M-FD
I-7565M-FD
I-7565M-FD
I-7565M-FD
I-7565M-FD
I-7565M-FD

Features

  • Compatible with USB 2.0 (High Speed)
  • Compatible with the ISO 11898-2 standard
  • Compatible with CAN specification 2.0 A/B and FD
  • CAN FD support for ISO and Non-ISO (Bosch) standards switchable
  • CAN FD bit rates for data field from 100 kbps to 10000 kbps
  • Support CAN Bus message filter configuration
  • Time stamp resolution 1ms.
  • Voltage supply via USB
  • Watchdog inside
  • Built-in dip-switch to select 120 ohm terminal resister for CAN Bus
  • Support firmware update via USB
  • Provide utility tool for users module setting and CAN Bus communication testing conveniently
  • Provide API library for user program development
CE UKCA FCC RoHS WEEE

Introduction

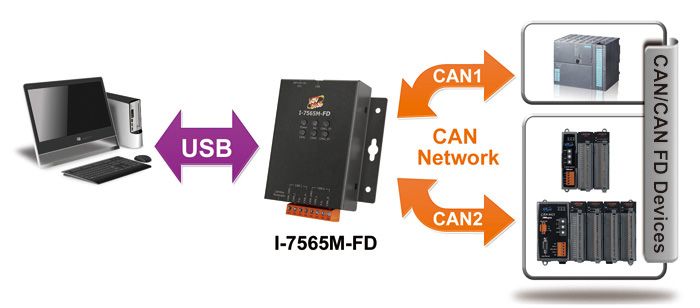

I-7565M-FD is a USB to CAN/CAN FD (CAN with Flexible Data-Rate) converter with two CAN channels. It allows transmitting/receiving CAN/CAN FD frames and supports CAN2.0A/2.0B and CAN FD (ISO/Bosch) specifications and different baud rates for CAN/CAN FD frame. (10 kbps to 1000 kbps for CAN arbitration phase and 100 kbps to 10000 kbps for CAN FD data phase). When connecting I-7565M-FD to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of CAN Bus network easier and quicker by applying I-7565M-FD. The application fields can be CAN Bus monitoring, building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc. The following is the application structure for the USB to CAN/CAN FD module. The PC can be the CAN host, monitor or HMI to access/control the CAN/CAN FD devices through the CAN network by the I-7565M-FD Converter. The module let users to communicate with CAN/CAN FD devices easily from PC with USB interface.

Applications


• Control System
• Building Automation
• Factory Automation
• Monitor System
• Vehicle Automation

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES I-7565M-FD     CR DESCRIPTIONUSB to 2-port CAN/CAN FD Converter (Metal Case) (RoHS)
This combination include other products.

Similar Products

Software
SDK C#.Net, VB.Net, VC++.Net
LED Indicators
Status 1 x Power
1 x Module status
4 x CAN status
USB
Specification USB 2.0 High Speed (480Mbps)

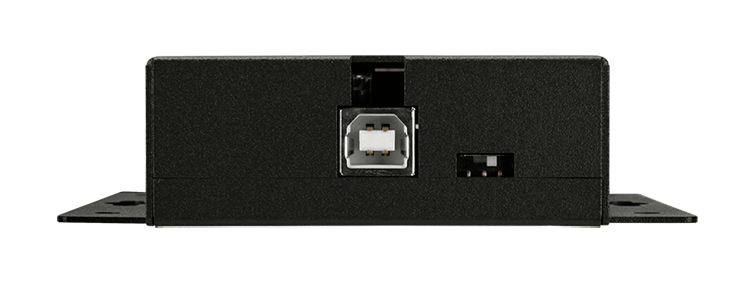

Connector 1 x USB (Type B)
Driver Built-in Windows 7/8.1/10/11
CAN
Ports 2
Baud Rate CAN bit rates: 10 k ~ 1 M bps,
CAN FD bit rates for data field: 100 k ~ 10M bps (*Note1)
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photocoupler
Terminal Resistor DIP switch for the 120 Ω terminal resistor
Specification ISO 11898-2, CAN 2.0 A/B and FD
Filter Yes
Receive Buffer 128 data frames
Data Flow 3000 fps for Tx/Rx (Total CAN ports)
Power
Input Range USB power delivery
Consumption 1.5 W
Mechanical
Casing Metal
Dimensions (mm) 111 x 102 x 27 (W x L x H)
Installation Wall Mount
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Specification Memo

Note1: The maximum CAN FD data rate can be exceeded depending on the concrete operating conditions (cable length, network topology, settings,...), but it can also not be reached.
  • Provide CAN Bus baud rate / acceptance filter configuration
  • Easily transmit/receive CAN/CAN FD messages for testing and display the time-stamp of each received CAN/CAN FD message
  • Provide saving the CAN/CAN FD message as “TXT” file for data log
  • Provide sending CAN/CAN FD message by using the internal timer of module for high precision transmission
  • Check / Reset module status remotely and get current CAN/CAN FD messages flow
