I-7565-G
USB to CAN Converter
Features
- Fully compliant with USB 1.1/2.0(Full Speed)
- Fully compatible with the ISO 11898-2 standard
- No external power supply is required as I-7565 takes it's power from the USB bus
- Transmission speed up to 1M bps for CAN and 921.6K bps for USB
- Support both CAN 2.0A and CAN 2.0B
- Built-in jumper to select 120 ohm terminal resister
- Power, data flow and error indicator for CAN and USB
- 1000 frames in CAN received buffer
- Watchdog inside
- Windows XP/7/10/11and Linux drivers support
- Able to configure the CAN baud rate for each channel using a rotary switch
- Extends the CAN transmission distance
Introduction
CAN (Controller Area Network) is a serial bus system especially suited to structure intelligent industry devices networks and build smart automatic control systems. The I-7565 is a cost-efficient device for coupling the CAN-bus to the PC using the standard USB interface by the MS-Windows XP, Win 7, Win 10, Win 11 and Linux operating systems. If you establish the connection between the I-7565 and the PC during the runtime of the computer, the PC automatically loads the relevant device driver (hot plug & play).
The following figure shows the application architecture for I-7565 modules. The PC can be the CAN host, monitor or HMI to access/control the CAN device through the CAN network by the I-7565 Converter. This module let you to communicate with CAN devices easily from PC with USB interface.

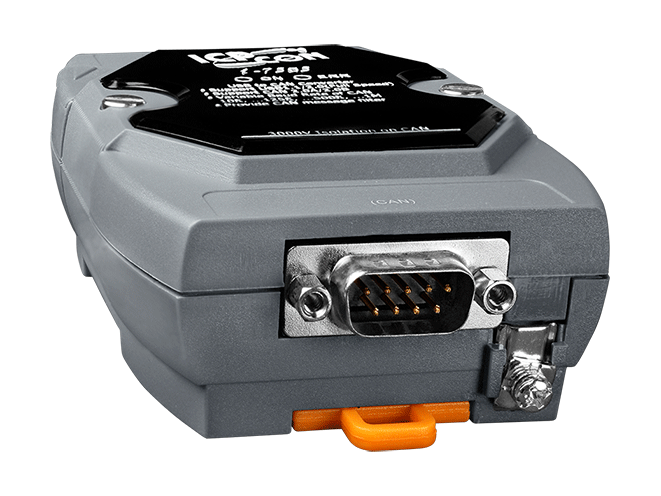

3000V isolation on CAN side
Watchdog inside
Power and Error indicator display
Applications
- Factory Automation
- Building Automation
- Home Automation
- Control System
- Monitor System
- Vehicle Automation
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
Similar Products
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x CAN status |
| USB | |
|---|---|
| Specification | USB 1.1 and 2.0 standard |

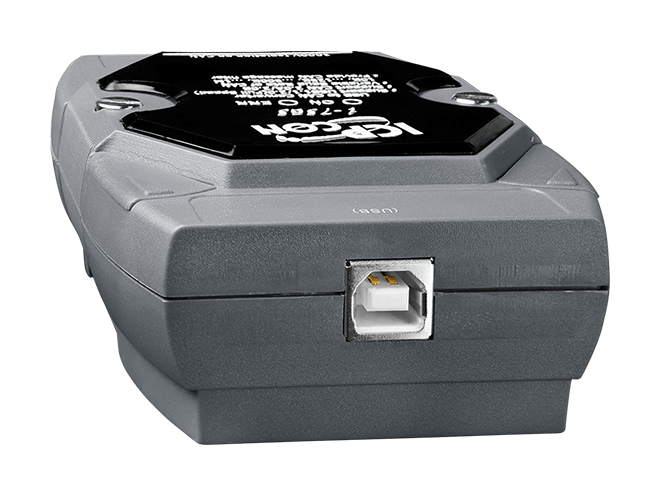

| Connector | 1 x USB (Type B) |
| Driver | Windows XP, Win 7, Win 10, Win 11 and Linux |
| Receive Buffer | 900 data frames |
| CAN | |
|---|---|
| Ports | 1 |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 3000 Vrms on the CAN side |
| Terminal Resistor | Selectable 120 Ω terminal resistor by jumper |
| Specification | CAN 2.0A/2.0B |
| Filter | Yes |
| Receive Buffer | 1000 data frames |
| Power | |
|---|---|
| Input Range | USB power delivery |
| Consumption | 1.5 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 72 x 112 x 33 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
- CAN bus Baud rate configuration
- CAN acceptance filter configuration
- CAN2.0A or 2.0B specific selection
- Checksum and Error Response settings
- Easy test to transmit/receive CAN messages

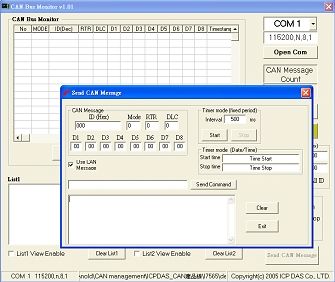

CAN Monitor & Datalog Tool
- It has a CAN message field which can display the receiving CAN messages in Decimal or HEX mode
- Can display the timestamp of each received CAN message
- Users can change the display mode, up-down, down-up or stop
- It can count the number of received CAN messages
- Data Log : It can save the CAN message as “ txt ” file
- Has CAN ID filter function
- Can send CAN message to CAN BUS according the defined interval time
Software Download
