Features

  • 80186-80 Embedded CPU, or compatible
  • Ethernet Protocols, TCP,UDP,IP,ICMP,ARP
  • COM driver support interrupt & 1K QUEUE Input & Output buffer
  • Provide 200 CAN frames buffer in CAN to Modbus Mode
  • NXP 82C 250 CAN Transceiver
  • Support both CAN specification 2.0A and 2.0B
  • Max transmission speed up to 1M bps for CAN and 115.2kbps for RS-232 & RS-485
  • Max transmission distance of CAN over 1000m (follow CAN specification)
  • 7-segment LED display to Module IP, RS-232 baud rate, CAN configuration…
  • Software configurable CAN and RS-232 communication parameters
  • Firmware updated from COM1 or Ethernet port
  • Support Web Configuration
  • Support maximum 24 Ethernet clients connection
  • Support function code 0x03/0x04/0x10 of Modbus TCP/RTU command for reading and writing CAN message
  • Provide the transparent communication between the CAN devices via Ethernet
  • Support 30 specific CAN IDs in the Modbus TCP/RTU mode
CE UKCA RoHS WEEE

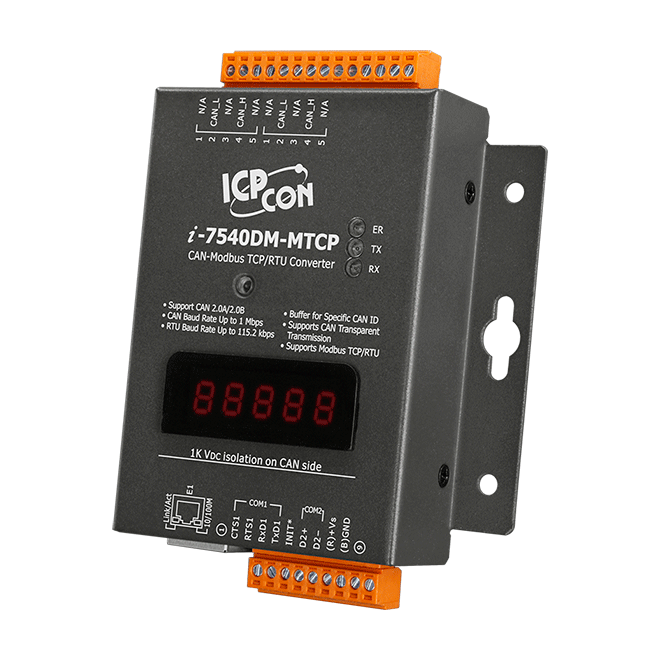

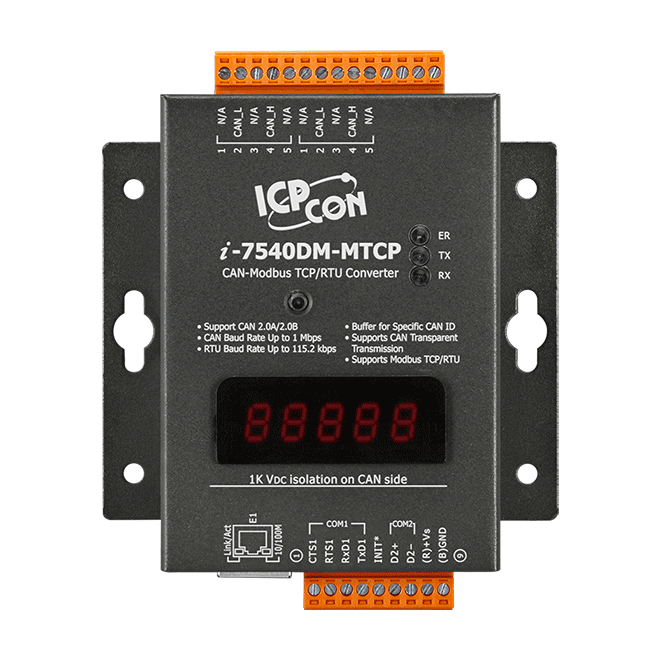

Introduction

The I-7540DM-MTCP is helpful for data exchanging between the Modbus devices and CAN devices. I-7540DM-MTCP is a Modbus TCP server and acts as slave device in Modbus RTU network. It supports four communication modes: Modbus TCP, Modbus RTU, CAN-Ethernet Convert and Pair connection.

The major function of the I-7540DM-MTCP is CAN to Modbus TCP/RTU gateway. It allows Modbus TCP/RTU device to communicate with CAN device on a CAN network. I-7540DM-MTCP supports the function codes 0x03/0x04/0x10 of Modbus TCP/RTU for reading and writing CAN messages.

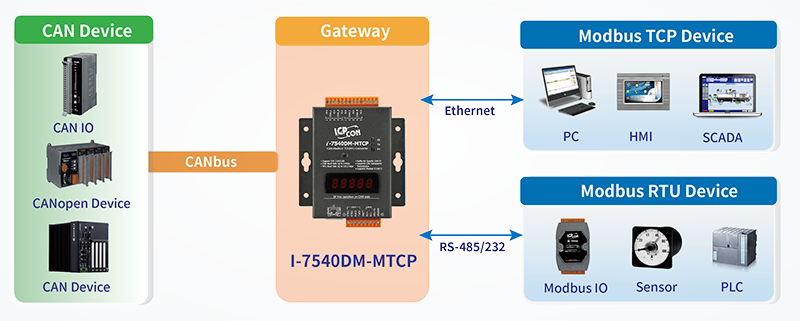

Furthermore, The device supports a transparent, protocol-independent transfer of the CAN messages, thus allowing its implementation into a wide range of possible applications. Furthermore, the CAN-Modbus Converter can be used with various higher layer CAN protocols (e.g. CANopen, DeviceNet or other proprietary protocols). The following figure shows the application architecture for CAN-Modbus Converter.



Applications

  • Factory Automation
  • Building Automation
  • Home Automation
  • Control System
  • Monitor System
  • Vehicle Automation

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES I-7540DM-MTCP     CR DESCRIPTIONCAN to Ethernet / Modbus TCP / Modbus RTU Converter (Metal Case) (RoHS)
This combination include other products.

Similar Products

LED Indicators
Status 1 x Power

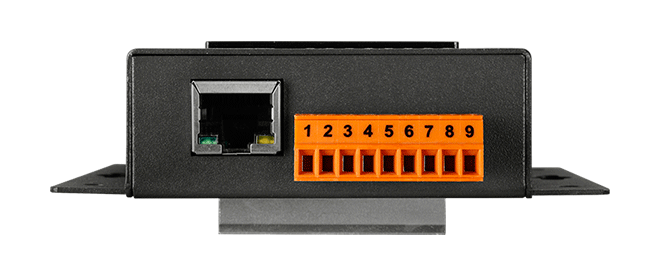

Ethernet
Ports 1 x RJ-45, 10/100Base-T(X)
COM Ports
Ports 1 x RS-232
1 x RS-485 (self-turner ASIC inside)
Baud Rate 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Parity None, Even, Odd
Data Bit 7, 8
Stop Bit 1
CAN
Controller NXP SJA1000T with 16 MHz clock
Ports 1
Baud Rate 10 k ~ 1 M bps
Isolation 1000 VDC for DC-to-DC, 2500 Vrms for photo-coupler
Terminal Resistor Jumper for 120 Ω terminal resistor
Specification ISO-11898-2, CAN 2.0A and CAN 2.0B
Filter Yes
Power
Input Range +10 VDC ~ +30 VDC
Consumption 2.5 W

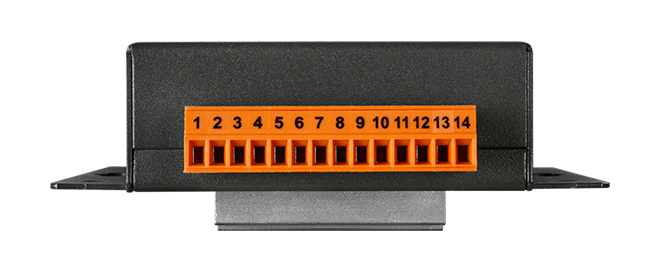

Mechanical
Casing Metal
Dimensions (mm) 72 x 122 x 33 (W x L x H)

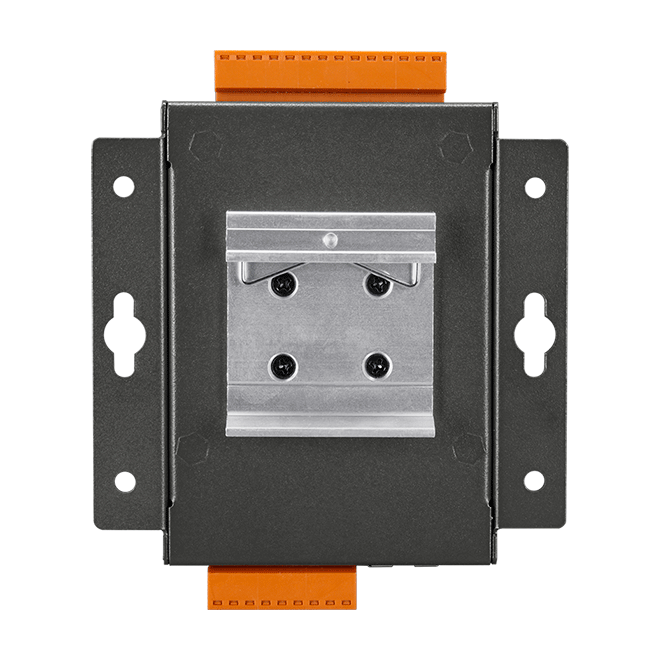

Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing
  • Operation mode configuration
  • IP 、 Gateway 、 Mask configuration
  • CAN bus Baud rate configuration
  • CAN BTR0 and BTR1 configuration
  • CAN acceptance filter configuration
  • CAN 2.0A or 2.0B specific selection
  • Error code Responded selection
  • Easy test to transmit/receive CAN messages
  • Easy test to Modbus TCP/Modbus RTU command

Performance Test

Test development:
OS:Windows XP SP 3
CPU:Intel Core 2 Duo 2.93 GHz
RAM:2GB
The test is the performance which transfer 8 bytes data frame from CAN to Ethernet (one TCP client).
CAN setting Transfer frames Transfer time(ms) Ethernet setting Receive frames Receive time (ms) The max frames/sec ASCII command length
2.0A 1Mbps 1,000,000 436,658 100M 1,000,000 436,781 2290 22 B
2.0B 1Mbps 1,000,000 472,153 100M 1,000,000 472,265 2118 27 B

The test is the performance which transfer 8 bytes data frame from Ethernet (one TCP client) to CAN.
CAN setting Transfer frames Transfer time(ms) Ethernet setting Receive frames Receive time (ms) The max frames/sec ASCII command length
2.0A 1Mbps 1,000,000 446,296 100M 1,000,000 446,574 2241 22 B
2.0B 1Mbps 1,000,000 465,843 100M 1,000,000 466,066 2147 27 B
