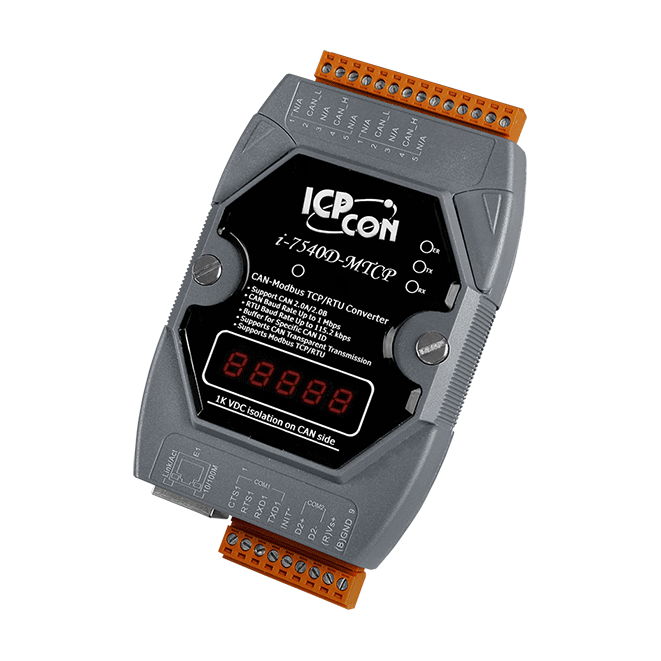

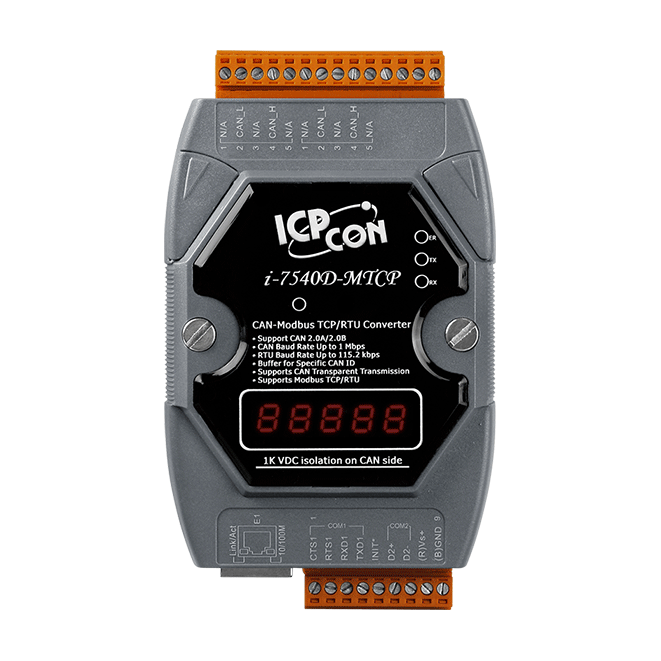

I-7540D-MTCP-G
CAN to Ethernet/ Modbus Converter
Features
- 80186-80 Embedded CPU, or compatible
- Ethernet Protocols, TCP,UDP,IP,ICMP,ARP
- COM driver support interrupt & 1K QUEUE Input & Output buffer
- Provide 200 CAN frames buffer in CAN to Modbus Mode
- NXP 82C 250 CAN Transceiver
- Support both CAN specification 2.0A and 2.0B
- Max transmission speed up to 1M bps for CAN and 115.2kbps for RS-232 & RS-485
- Max transmission distance of CAN over 1000m (follow CAN specification)
- 7-segment LED display to Module IP, RS-232 baud rate, CAN configuration…
- Software configurable CAN and RS-232 communication parameters
- Firmware updated from COM1 or Ethernet port
- Support Web Configuration
- Support maximum 24 Ethernet clients connection
- Support function code 0x03/0x04/0x10 of Modbus TCP/RTU command for reading and writing CAN message
- Provide the transparent communication between the CAN devices via Ethernet
- Support 30 specific CAN IDs in the Modbus TCP/RTU mode
Introduction
The I-7540D-MTCP is helpful for data exchanging between the Modbus devices and CAN devices. I-7540D-MTCP is a Modbus TCP server and acts as slave device in Modbus RTU network. It supports four communication modes: Modbus TCP, Modbus RTU, CAN-Ethernet Convert and Pair connection.

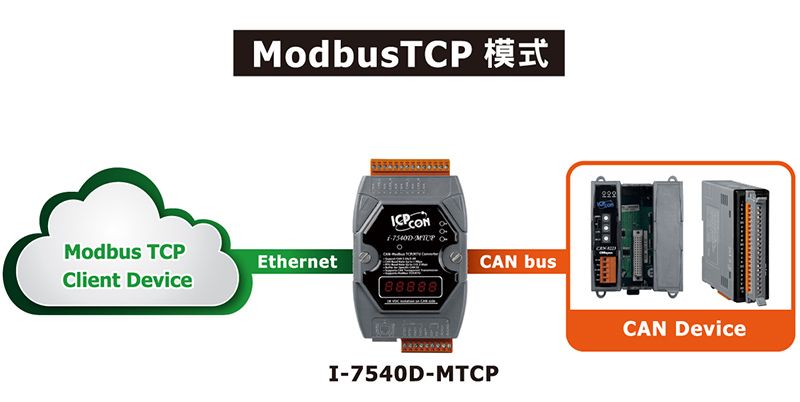

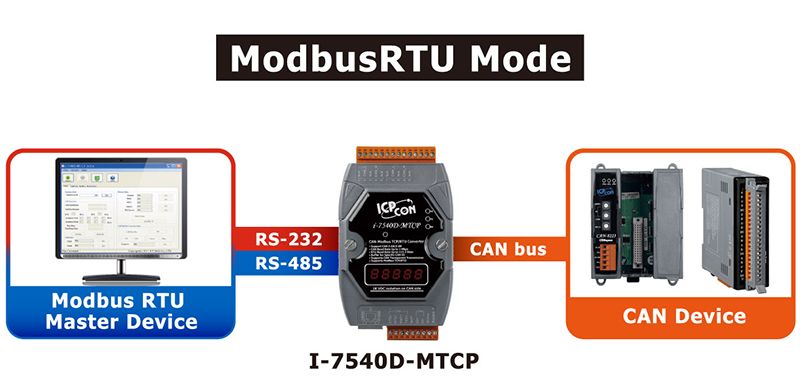

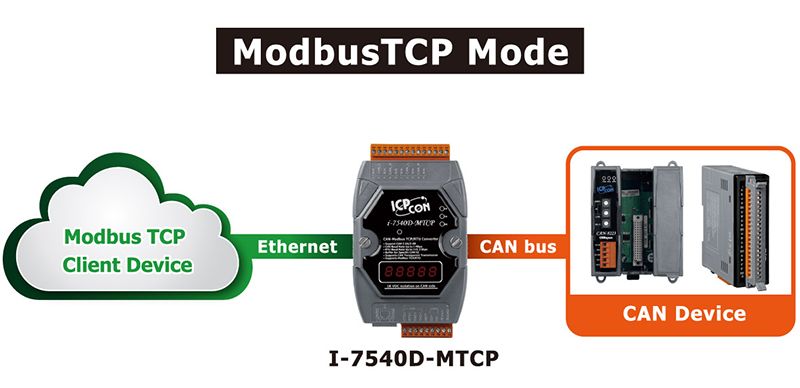

Modbus TCP / RTU
The major function of the I-7540D-MTCP is CAN to Modbus TCP/RTU gateway. It allows Modbus TCP/RTU device to communicate with CAN device on a CAN network. I-7540D-MTCP supports the function codes 0x03/0x04/0x10 of Modbus TCP/RTU for reading and writing CAN messages.

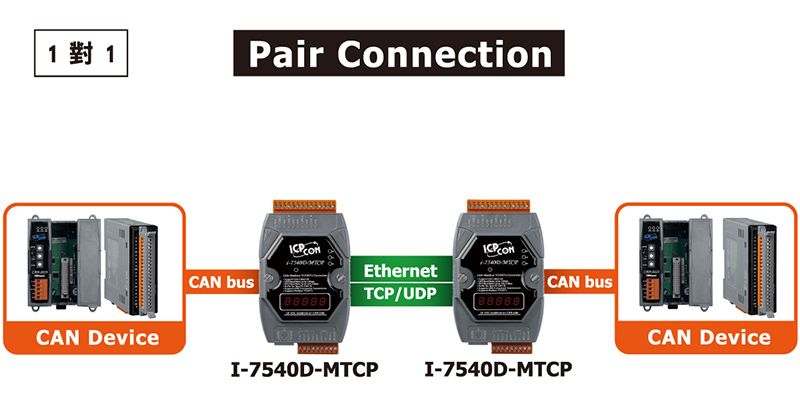

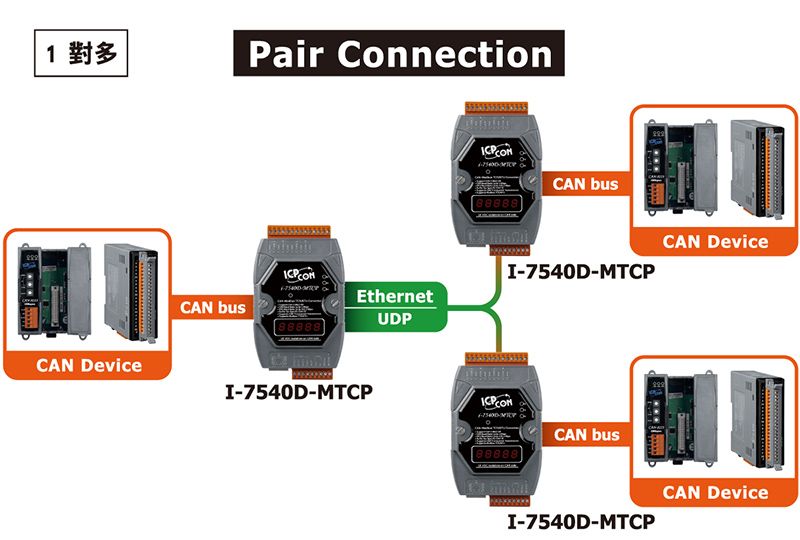

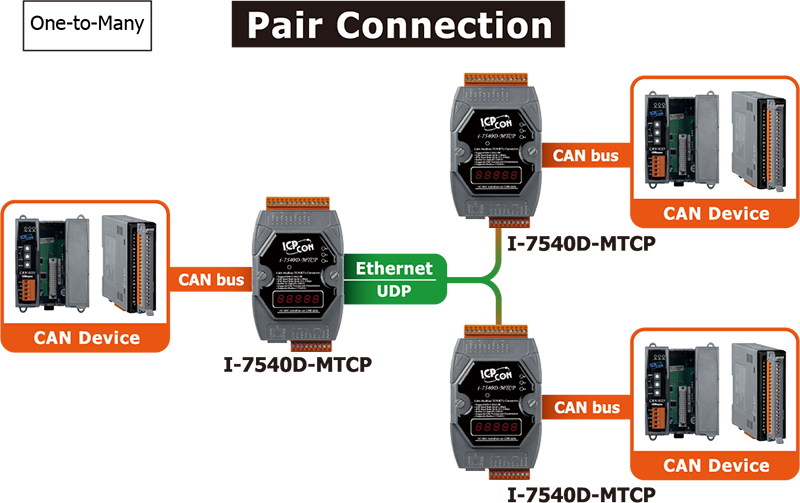

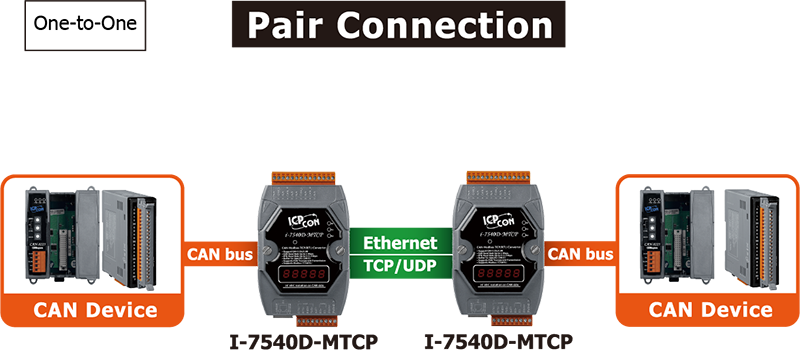

CAN Pair Connection Application:
The device supports a transparent, protocol-independent transfer of the CAN messages, thus allowing its implementation into a wide range of possible applications. Furthermore, the CAN-Modbus Converter can be used with various higher layer CAN protocols (e.g. CANopen, DeviceNet or other proprietary protocols).
Applications
- Factory Automation
- Building Automation
- Home Automation
- Control System
- Monitor System
- Vehicle Automation
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|

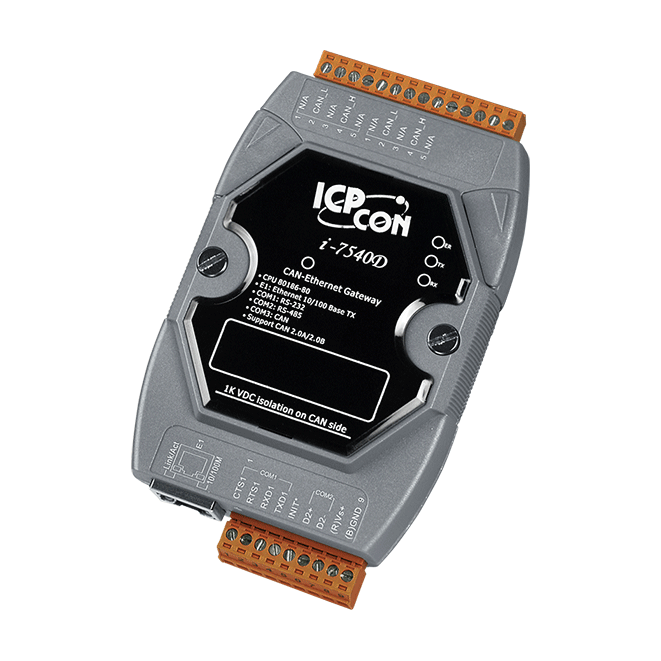

Similar Products
| LED Indicators | |
|---|---|
| Status | 1 x Power 3 x CAN status |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 1 x RS-485 (self-turner ASIC inside) |
| Baud Rate | 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Parity | None, Even, Odd |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| CAN | |
|---|---|
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 1000 VDC for DC-to-DC, 2500 Vrms for photo-coupler |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Filter | Yes |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 2.5 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 72 x 122 x 33 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
- Operation mode configuration
- IP 、 Gateway 、 Mask configuration
- CAN bus Baud rate configuration
- CAN BTR0 and BTR1 configuration
- CAN acceptance filter configuration
- CAN 2.0A or 2.0B specific selection
- Error code Responded selection
- Easy test to transmit/receive CAN messages
- Easy test to Modbus TCP/Modbus RTU command
Performance Test
Test development：OS：Windows XP SP 3
CPU：Intel Core 2 Duo 2.93 GHz
RAM：2GB
|
The test is the performance which transfer 8 bytes data frame from CAN to Ethernet (one TCP client).
|
|||||||
| CAN setting | Transfer frames | Transfer time(ms) | Ethernet setting | Receive frames | Receive time (ms) | The max frames/sec | ASCII command length |
|---|---|---|---|---|---|---|---|
| 2.0A 1Mbps | 1,000,000 | 436,658 | 100M | 1,000,000 | 436,781 | 2290 | 22 B |
| 2.0B 1Mbps | 1,000,000 | 472,153 | 100M | 1,000,000 | 472,265 | 2118 | 27 B |
|
The test is the performance which transfer 8 bytes data frame from Ethernet (one TCP client) to CAN.
|
|||||||
| CAN setting | Transfer frames | Transfer time(ms) | Ethernet setting | Receive frames | Receive time (ms) | The max frames/sec | ASCII command length |
|---|---|---|---|---|---|---|---|
| 2.0A 1Mbps | 1,000,000 | 446,296 | 100M | 1,000,000 | 446,574 | 2241 | 22 B |
| 2.0B 1Mbps | 1,000,000 | 465,843 | 100M | 1,000,000 | 466,066 | 2147 | 27 B |
