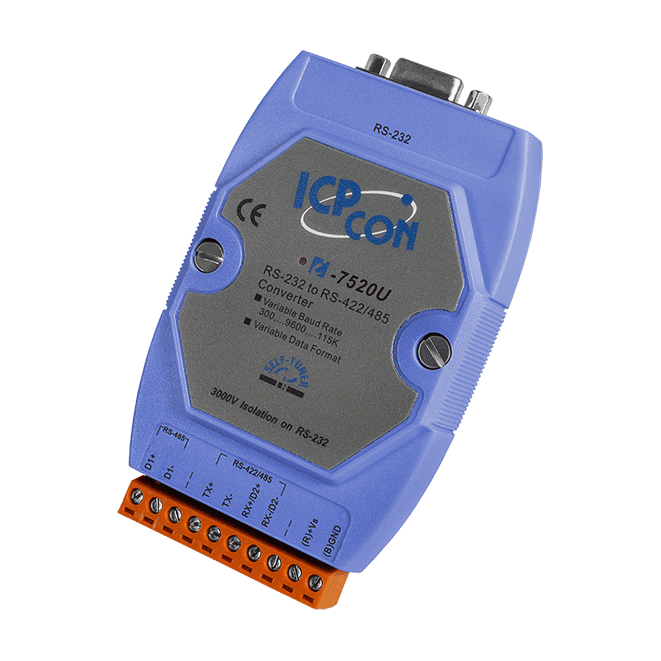

I-7520U

Isolated RS-232 to RS-485 Converter
I-7520U
I-7520U
I-7520U
I-7520U

Features


• 2-way 3000 VDC Isolation Protection
• ESD Protection for RS-485 Data Line
• Power Input, +10 ~ +30 VDC
• Low power consumption
• Long-cable application
• Power and data flow indicator for troubleshooting
• Easy-to-use switchable for baud rate setting, 1200 ~ 115200 bps
• Operating Temperatures, -25 °C ~ +75 °C
• Tiny packaging fits on your DIN-Rail
CE UKCA FCC RoHS WEEE

Introduction

Most industrial computer systems provide standard RS-232 serial ports with limited transmission speed, range, and networking capabilities. The RS-485 standards overcome these limitations by using differential voltage lines for data and control signals. The tM-7520U transparently converts RS-232 signals into isolated RS-485 signal with no need to change any hardware or software. This lets you easily build an industrial grade, long-distance communication system using standard PC hardware. The module provides 2500 VDC of optical isolation allowing you to separate and protect critical segments of the system from the rest of the RS-485 network. The tM-7520U provides 2 modes of baud rate setting, one is Self-Tuner mode and the other is Fixed baud rate mode. The Self-Tuner mode can support Multiple Baud Rate and Multiple Data Format. The Self-Tuner design is exactly the same as I-7520 series. The Fixed baud rate mode offers a better quality for data transmission over long or lossy lines or electrically noisy environments.

Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES I-7520U     CR DESCRIPTIONIsolated RS-232 to RS-485 Converter (RoHS)
This combination include other products.

Similar Products

Isolation
Intra-module Isolation 3000 VDC 2-way Isolated
EMS Protection
ESD (IEC 61000-4-2) Yes, Contact for Each Terminal
LED Indicators
Status 1 x Power
1 x Communication
COM Ports
Ports 1 x RS-232 Input (Master)
1 x RS-485 Output (Slave)
Baud Rate 300 ~ 115200 bps for Self-Tuner
1200 ~ 115200 bps for Fixed baud rate setting
Bias Resistor Yes, 1 KΩ
Node Address 254 (max.)
Power
Input Range +10 VDC ~ +30 VDC (Non-isolated)
Consumption 1.2 W
Mechanical
Casing Plastic
Dimensions (mm) 72 mm x 118 mm x 35 mm
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 10 ~ 90% RH, Non-condensing
