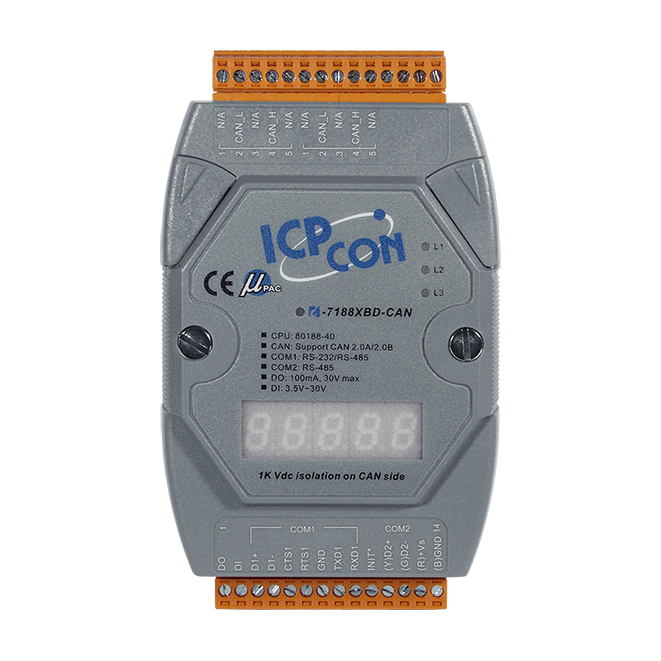

I-7188XBD-CAN-G

I-7188 CAN Programmable Controller

Features

2500Vrms photo-isolation protection
Compatible with CAN specification 2.0 parts A and B
Programmable transfer rate up to 1 Mbps
Jumper select 120Ω terminal resistor for CAN channel
64-bit hardware unique serial number inside
COM driver support interrupt & 1KB QUEUE input buffer
COM port: COM1, COM2
Built-in RTC, NVRAM, EEPROM
One digital Input channel and one open collector output channel
Built-in self-tuner ASIC controller on RS-485 port
7-segment LED display
Built-in ICP DAS’s MiniOS7
Program download port: COM1

Introduction

The I-7188XBD-CAN series PACs (Programmable Automation Controller) are powered by 80188-40 processor with 512K bytes of static RAM, and 512K bytes of Flash memory. All of them provide several communication interfaces to adapt to various applications, such as CAN port, RS-232 port and RS-485 port. Uses can program their application program flexibly with C/C++ language because of the built-in MiniOS7 operation system. Besides, the I-7188XBD-CAN series PACs have different I/O types for users to match their requirement. For I-7188XBD-CAN, it provides 1 open collector digital output channel and 1 digital input channel. It is useful for transfer the command from differential communication interface. Therefore, it can satisfy the applications with I/O demand. Therefore, the I-7188XBD-CAN series PACs are economic and convenient solution for diversification CAN application.

Applications

CAN bus communication application
Industry automation
Auto detecting CANopen slave devices
IO monitor
High speed data acquisition system
Process monitor and control
Factory automation
Laboratory automation
Communication switching

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES I-7188XBD-CAN-G CR	DESCRIPTIONI-7188 CAN Controller with Serial Port, 7-segment Display, DI and DO Channels (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

CPU Module
CPU	80188, 40 MHz or compatible
64-bit Hardware Serial Number	Yes, for Software Copy Protection
EEPROM	2048 Bytes (8 block, each block contains 256byte); Data retention > 100 years; 1,000,000 erase/write cycles
Flash	512 KB; Erase unit is one sector (64 KB); 100,000 erase/write cycles
NVRAM	31 bytes (battery backup, data valid for up to 10 years)
SRAM	512 KB
Real Time Clock	Yes
Watchdog Timer	CPU built-in

LED Indicators
Status	3 x Programmable

COM Ports
Ports	1 x RS-485/RS-232 (can’t be used simultaneously, screwed terminal block) 1 x RS-485 (Self-turner inside, screwed terminal block)
Baud Rate	110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps

CAN
Controller	NXP SJA1000T with 16 MHz clock
Ports	1
Baud Rate	10 k ~ 1 M bps
Isolation	1000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor	Jumper for 120 Ω terminal resistor
Specification	ISO-11898-2, CAN 2.0A and CAN 2.0B
