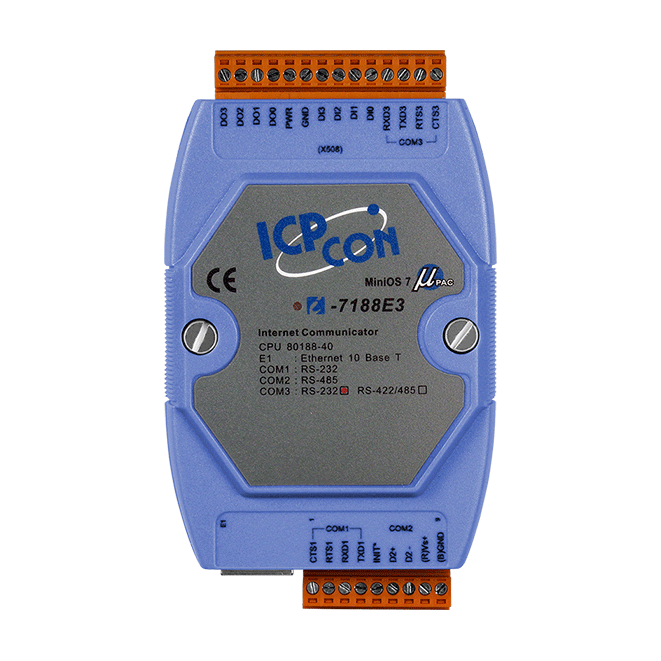

I-7188E3-232
Programmable Ethernet to 3x serial ports converter (2x RS-232, 1x RS-485)
Features
- Incorporates any RS-232/485 serial device in Ethernet
- Data transmission via Virtual COM or raw TCP connection
- VxComm Driver for 32-bit and 64-bit Windows 7 SP1/10/2012/2016
- Built-in High-Performance MiniOS7 from ICP DAS
- Watchdog Timer suitable for use in harsh environments
- Palm-Sized with multiple Serial Ports
- Power Reverse Polarity Protection
Introduction
The I-7188EN series is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the I-7188EN series into standard COM ports on a computer. By virtue of its protocol independence, a small-core OS and high flexibility, the I-7188EN series is able to meet the demands of every network-enabled application.
The I-7188EN series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in high-performance MiniOS7 boots the I-7188EN up in just one second and gives you the fastest responses.
The I-7188E3(D)-232 is equipped with 2 RS-232 ports and 1 RS-485 port. The removable on-board terminal block connector is designed for easy and robust wiring in industrial situations.
The I-7188EN series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in high-performance MiniOS7 boots the I-7188EN up in just one second and gives you the fastest responses.
The I-7188E3(D)-232 is equipped with 2 RS-232 ports and 1 RS-485 port. The removable on-board terminal block connector is designed for easy and robust wiring in industrial situations.
Applications
Factory Automation Building Automation Home Automation
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz 或 兼容 |
| EEPROM | 2K Bytes |
| Flash | 512K bytes |
| SRAM | 384K bytes |
| Watchdog Timer | 支持 |
| LED Indicators | |
|---|---|
| Status | 支持 |
| Digital Input | |
|---|---|
| Channels | 4 |
| Type | Wet Contact, Dry Contact |
| Sink/Source (NPN/PNP) | Wet:Sink Dry: Source |
| ON Voltage Level | Wet: +3.5 VDC ~ +30 VDC Dry: Close to GND |
| OFF Voltage Level | Wet: +1 VDC Max. Dry: Open |
| Digital Output | |
|---|---|
| Channels | 4 |
| Type | Open Collector |
| Load Voltage | +30 VDC Max. |
| Load Current | 100 mA |
| Ethernet | |
|---|---|
| Ports | 10BASE-T NE2000 兼容以太网路控制器 |
| COM Ports | |
|---|---|
| Ports | 2 x RS-232 (TXD, RXD, RTS, CTS, GND) 1 x RS-485 (Data+, Data-) |
| Baud Rate | 115200 bps Max. |
| Parity | Even, Odd, None |
| Data Bit | 7, 8 |
| Stop Bit | 1 |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +30 VDC (non-regulated) |
| Consumption | 2 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 123 mm x 72 mm x 33 mm |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
