I-7017 series

8-ch Analog Input Module

Features

8 Differential, or 6 Differential and 2 Single-ended Analog Inputs
Voltage and Current Inputs
High Resolution: 16-bit
Open Wire Detection for 4 ~ 20 mA
Built-in Dual Watchdog

Introduction

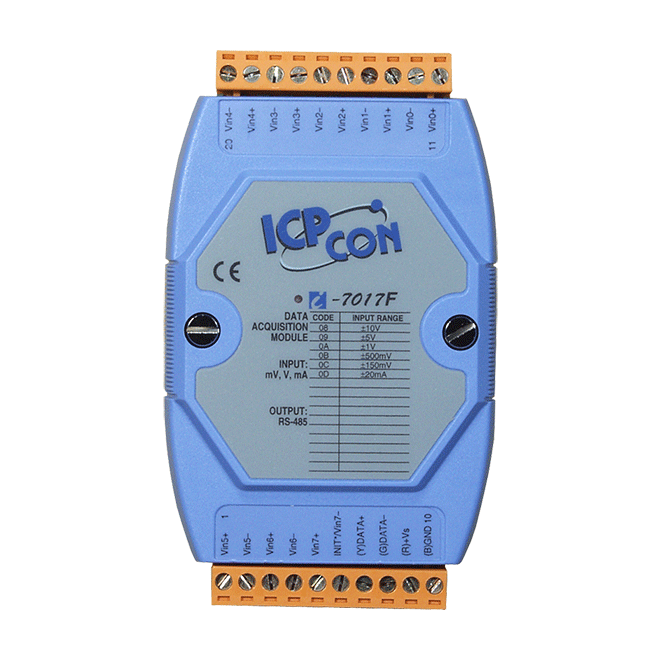

The I-7017 and I-7017F are analog input modules that offer either 8 differential input channels or 6 differential and 2 single-ended input channels, selectable via a jumper. The input type includes both voltage and current, and all channels are available for the same input range. An optional external 125 Ω resistor is required for current input. The modules also feature 3000 VDC intra-module isolation as well as +/-120 VDC overvoltage protection. The sampling rate of the I-7017F is adjustable, meaning that either fast mode or normal mode can be selected.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES I-7017F-G CR	DESCRIPTION8-ch AI (Fast Sampling Version) Module using DCON Protocol (Gray Cover) (RoHS)

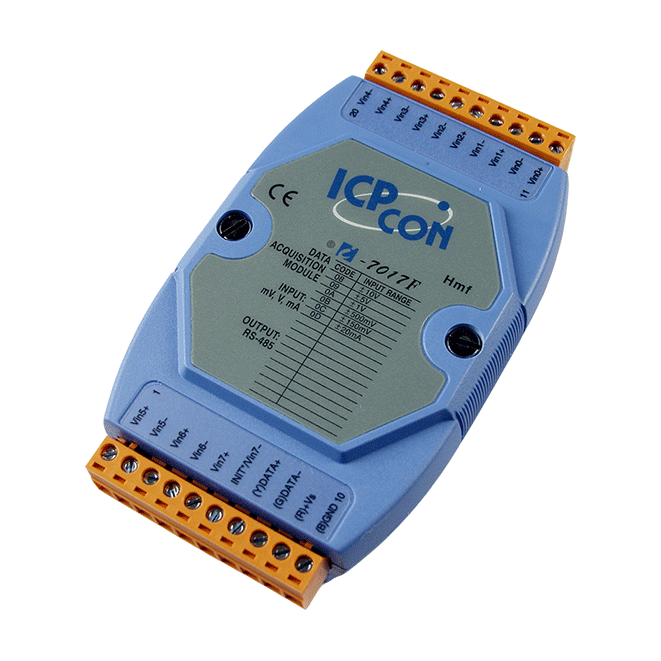

PRODUCT SERIES I-7017F CR	DESCRIPTION8-ch AI (Fast Sampling Version) Module using DCON Protocol (Blue Cover) (RoHS)

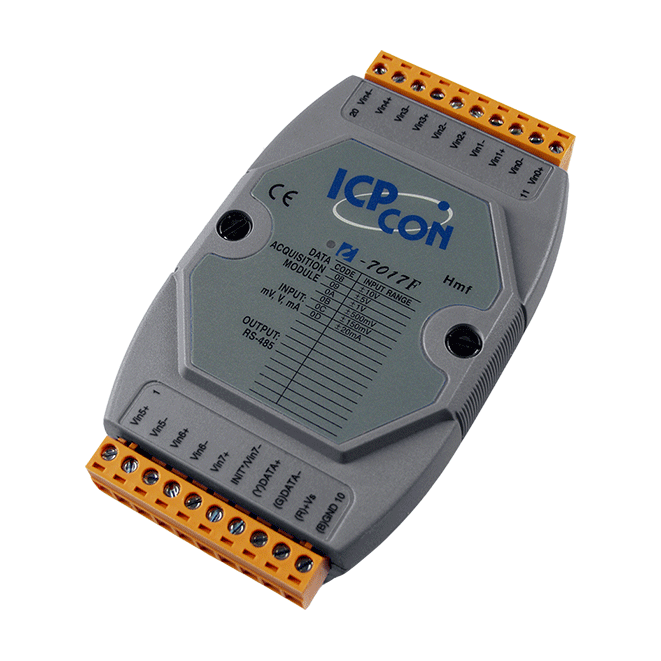

PRODUCT SERIES I-7017-G CR	DESCRIPTION8-ch AI Module using DCON Protocol (Gray Cover) (RoHS)
PRODUCT SERIES I-7017 CR	DESCRIPTION8-ch AI Module using DCON Protocol (Blue Cover) (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

CPU Module
Watchdog Timer	Module, Communication (Programmable)

Isolation
Intra-module Isolation	3000 VDC

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±2 kV Contact for Each Terminal

LED Indicators
Status	1 x Power and Communication

Analog Input
Channels	6 Differential and 2 Single-ended, or 8 Differential
Type	Voltage Current
Range	Voltage: ±150 mV, ±500 mV, ±1V, ±5 V, ±10 V Current: ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (requires an optional external 125 Ω resistor)
Resolution	16-bit
Accuracy	Normal Mode: ±0.1% of FSR Fast Mode: ±0.5% of FSR (Only for I-7017F)
Sampling Rate	Normal Mode: 10 Hz Fast Mode: 60 Hz (Only for I-7017F)
Input Impedance	20 MΩ
Common Voltage Protection	±15 VDC
Overvoltage Protection	±120 VDC

COM Ports
Ports	1 x RS-485
Baud Rate	1200 ~ 115200 bps
Data Format	(N, 8, 1)
Protocol	DCON

Power
Reverse Polarity Protection	Yes
Input Range	+10 ~ +30 VDC
Consumption	1.3 W

Mechanical
Dimensions (mm)	72 x 123 x 35 (W x L x H)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 95% RH, Non-condensing
