I-2533CS-FD-AB series
CAN/CAN FD to Single-mode Fiber Bridge
Features
- Compatible with the ISO 11898-2 standard
- Compatible with CAN specification 2.0 A/B and FD
- CAN FD support for ISO and Non-ISO (Bosch) standards switchable
- CAN FD bit rates for data field from 100 kbps to 10000 kbps
- CAN bit rates from 10 kbps to 1000 kbps
- Fiber broken line detection
- Support CAN Bus message filter configuration
- Support firmware update via USB
- Basic CAN message routing function via Group ID settings.
- Built-in switchable 120 ohm terminal resistor for CAN Bus
- Dip switch for CAN/CAN FD baud rate configuration
Introduction

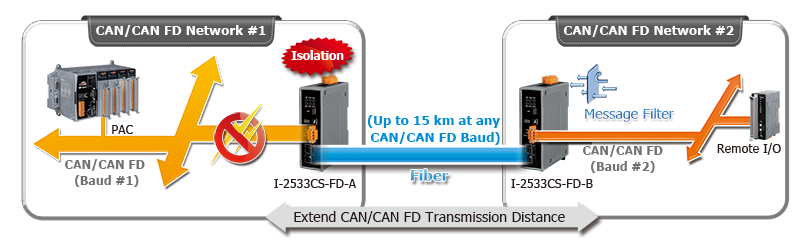

The I-2533CS-FD-AB series is local CAN bridges used to establish a connection between two CAN bus system via single mode fiber optic transmission medium. In order to solve the problem between CAN and fiber transmission medium, the I-2533CS-FD-AB series is specially designed for converting the electrical CAN bus signal to fiber optic cables. The I-2533CS-FD-AB series supports Wavelength Division Multiplexing (WDM) technology so that only a single fiber cable is needed for transmitting bi-directional CAN data. As the I-2533CS-FD-AB series must be paired because of hardware limitations, this means that the cost of deploying fiber cable can be effectively reduced. I-2533CS-FD-AB series has three more important features. First, the transmission distance limitation of the CAN bus system will not affected due to the different CAN baud rate. It means that the total CAN bus working distance can be extended. Second, the bus error on one CAN network will not affect the operation of another CAN network. Finally, the two CAN network can communication with each other by using different CAN baud rate for highly flexibility.
Applications
- Control System
- Building Automation
- Factory Automation
- Distributed data acquisition
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
Similar Products
| LED Indicators | |
|---|---|
| Status | 1 x Power, 3 x CAN status, 2 x Fiber status |
| Fiber | |
|---|---|
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 μm |
| Wavelength | I-2533CS-FD-A: TX: 1310, RX: 1550 nm I-2533CS-FD-B: TX: 1550, RX: 1310 nm |
| TX Output | -14 dBm Min. , -8 dBm Max. |
| Transmission Distance | 15 km (9/125 μm recommended) |
| RX Sensitivity | -31 dBm Max. |
| RX Overload | 0 dBm Max |
| Budget | 17 dBm |
| Propagation Delay | 190 us (*Note1) |
| USB | |
|---|---|
| Specification | USB 2.0 High Speed (480Mbps) |
| Connector | USB Type B, Mini-B |
| Driver | Built-in Windows 7/8.1/10 |
| CAN | |
|---|---|
| Ports | 1 |
| Specification | ISO 11898-2, CAN 2.0 A/B and FD |
| Baud Rate | CAN bit rates: 10 k ~ 1 M bps, CAN FD bit rates for data field: 100 k ~ 10M bps (*Note2) |
| Terminal Resistor | Switch for 120Ω terminal resistor |
| Filter | Yes |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 3 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 101 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specification Memo
Note2: The maximum CAN FD data rate can be exceeded depending on the concrete operating conditions (cable length, network topology, settings,...), but it can also not be reached.
Note3: The I-2533CS-FD-A and I-2533CS-FD-B is a couple. Users must use pair in the applications.
