I-2533CS-A

CAN to Single-mode Fiber Bridge
I-2533CS-A
I-2533CS-A

Features

  • Fiber Type: SC ; Single mode ; 100 Base-FX
  • Maximum transmission distance up to 15km at any CAN baud rate
  • NXP TJA1042 CAN transceiver
  • 2500 Vrms isolation on the CAN side
  • Supports both CAN 2.0A and CAN 2.0B
  • Fully compatible with the ISO 11898-2 standard
  • Rotary switch for CAN baud rate configuration
  • Build-in switch for 120 Ω terminal resistor
  • Removable terminal block, Mount easily on DIN-Rail
  • Allows user-defined CAN baud rate
  • Fiber broken line detection
  • Utility tool for CAN message filter configuration
  • The CAN port with the same Group ID can communicate with each other
CE UKCA FCC RoHS WEEE

Introduction

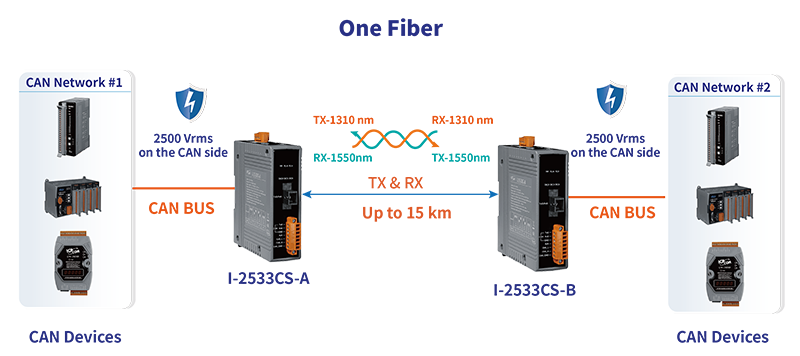

The I-2533CS-A and I-2533CS-B are local CAN bridges used to establish a connection between two CAN bus system via single mode fiber optic transmission medium. In order to solve the problem between CAN and fiber transmission medium, the I-2533CS-A/B are specially designed for converting the electrical CAN bus signal to fiber optic cables. The I-2533CS-A/B supports Wavelength Division Multiplexing (WDM) technology so that only a single fiber cable is needed for transmitting bi-directional CAN data. As the I-2533CS-A and I-2533CS-B must be paired because of hardware limitations, this means that the cost of deploying fiber cable can be effectively reduced. I-2533CS-A/B have three more important features. First, the transmission distance limitation of the CAN bus system will not affected due to the different CAN baud rate. It means that the total CAN bus working distance can be extended. Second, the bus error on one CAN network will not affect the operation of another CAN network. Finally, the two CAN network can communication with each other by using different CAN baud rate for highly flexibility.


Important Note: You must purchase both I-2533CS-A and I-2533CS-B since these products work as a pair.

Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES I-2533CS-A     CR DESCRIPTIONCAN to Single-mode Fiber Bridge ; 1 (15 km) single-mode, SC connector, TX 1310 nm, RX 1550 nm (RoHS)
This combination include other products.

Similar Products

LED Indicators
Status 1 x Power
3 x CAN status
2 x Fiber status
COM Ports
Ports 1 x RS-232 (Utility Port)
Fiber
Ports Single-Mode; SC connector x 1; 100 Base-FX
Fiber Cable 8.3/125, 8.7/125, 9/125 or 10/125 μm
Wavelength TX: 1310, RX: 1550 nm
TX Output -14 dBm Min. , -8 dBm Max.
RX Sensitivity -31 dBm Max.
RX Overload -5 dBm Max.
Budget 17 dBm
Propagation Delay 190 us (*Note2)
Distance Between Stations 15 km (9/125 μm recommended)
CAN
Ports 1
Baud Rate 10 k ~ 1 M bps
Isolation 500 Vrms on the CAN side
Terminal Resistor Switch for 120Ω terminal resistor
Specification ISO 11898-2, CAN 2.0A and CAN 2.0B
Filter Yes
Power
Input Range +10 VDC ~ +30 VDC
Consumption 3 W
Mechanical
Casing Plastic
Dimensions (mm) 33.0 x 126 x 101 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Specification Memo

Note1: The I-2533CS-A and I-2533CS-B is a couple. Users must use pair in the applications. Due to this characteristic, the Group ID of the I-2533CS-A and I-2533CS-B is not used.
Note2: The propagation delay depends on the CAN Bus baud rate and the CAN message format. This value has been tested using a CAN baud rate of 1 Mbps, the CAN ID 0x12345678 and 8 bytes of data with a value of 0xFF.

CAN Baud rate [bit/sec] Ideal Fiber Length [km]
1M 30
800K 30
500K 30
250K 30
125K 30
50K 30
20K 30
10K 30
