GW-7553-CPM-M

PROFIBUS to CANopen Gateway
GW-7553-CPM-M
GW-7553-CPM-M
GW-7553-CPM-M
GW-7553-CPM-M
GW-7553-CPM-M
GW-7553-CPM-M
GW-7553-CPM-M
GW-7553-CPM-M

Features

  • Protocol & Hierarchy : DP-V0 Slave
  • Transmission Rate Setting : detected automatically
  • Max Input Data Length : 240 Bytes
  • Max Output Data Length : 240 Bytes
  • PROFIBUS Address Setting : 0~126 set by DIP switch
  • Supports CANopen Standard : CiA CANopen Standard DS-301 v4.02
  • Supports CANopen Consumer protocol : Node Guarding and Heartbeat Consumer protocol
  • Number of CANopen Commands : Support 110 CANopen SDO/PDO commands
  • Network Isolation Protection : 2500 Vrms High Speed iCoupler
  • DC Isolation Protection : 3000VDC on PROFIBUS side
CE UKCA RoHS WEEE

Introduction

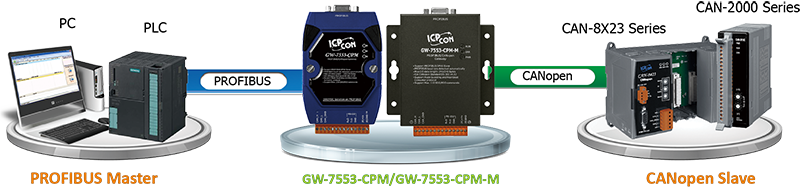

The GW-7553-CPM Gateway is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access the CANopen slave devices. We also provide the utility software for users to configure the GW-7553-CPM. By using this module, users can put their CANopen devices into PROFIBUS network very easily.

Applications

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc…

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES GW-7553-CPM-M     CR DESCRIPTIONPROFIBUS to CANopen Gateway (Metal Case) (RoHS)
This combination include other products.

Similar Products

CPU Module
CPU 80186, 80 MHz or compatible
EEPROM 16 KB
Flash 512 KB
SRAM 512 KB
Watchdog Timer Watchdog IC
CPU built-in
LED Indicators
Status PWR LED, RUN LED, ERR LED
COM Ports
Ports RS-232 (For updating firmware and configuration)
3-pin screwed terminal block (RxD, TxD, GND)
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Parity None, Even, Odd
Data Bit 7, 8
Stop Bit 1, 2
CAN
Controller NXP SJA1000T with 16 MHz clock
Isolation 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Specification CANopen DS-301 ver4.02
PROFIBUS
Controller Profichip VPC3+C
Transceiver ADI ADM2486
Baud Rate 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol DP-V0
Power
Consumption 2.5 W
Mechanical
Casing Metal
Dimensions (mm) 96 x 33 x 119 (W x L x H)
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75℃
Storage Temperature -30 ~ +85 ℃
Humidity 5 ~ 95% RH, Non-condensing

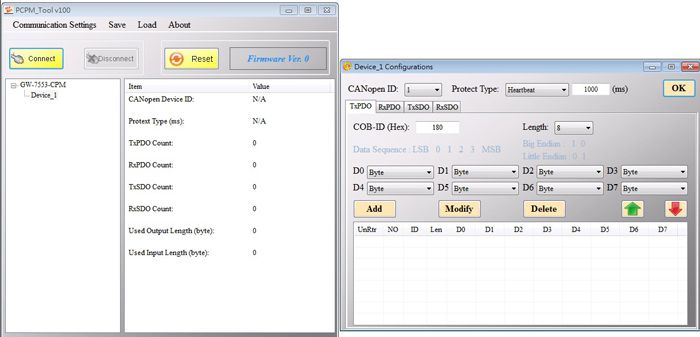

The GW-7553-CPM Utility helps users to configure the devices, and has following features:

  • Add/remove CANopen slaves via RS-232
  • Show diagnostic messages
  • Provide test function for CANopen slave devices

Modules Support

Only the following CANopen commands are supported by the gateway.
Communication objecte COB-ID(s) hex Slave nodes
NMT node control 000 Receive only
Sync 080 Receive only
Emergency 080 + NodeID Transmit
TimeStamp 100 Receive only
PDO 180 + NodeID
200 + NodeID
280 + NodeID
300 + NodeID
380 + NodeID
400 + NodeID
480 + NodeID
500 + NodeID
1. Transmit PDO
1. Receive PDO
2. Transmit PDO
2. Receive PDO
3. Transmit PDO
3. Receive PDO
4. Transmit PDO
4. Receive PDO
SDO 580 + NodeID
600 + NodeID
Transmit
Receive
NMT node monitoring (node guarding/heartbeat) 700 + NodeID Transmit
LSS 7E4
7E5
Transmit
Receive
