GTP-542M-UDR

Available soon

4G Multi-Function Controller (Asia only)

Features

I/O Trigger SMS/Voice Alarm Function
Modbus RTU Trigger SMS/Voice Alarm Function
Serial to 4G Gateway Function
Remote terminal unit (RTU) Function
Supports VoLTE
Support Untethered Dead Reckoning (UDR)

Introduction

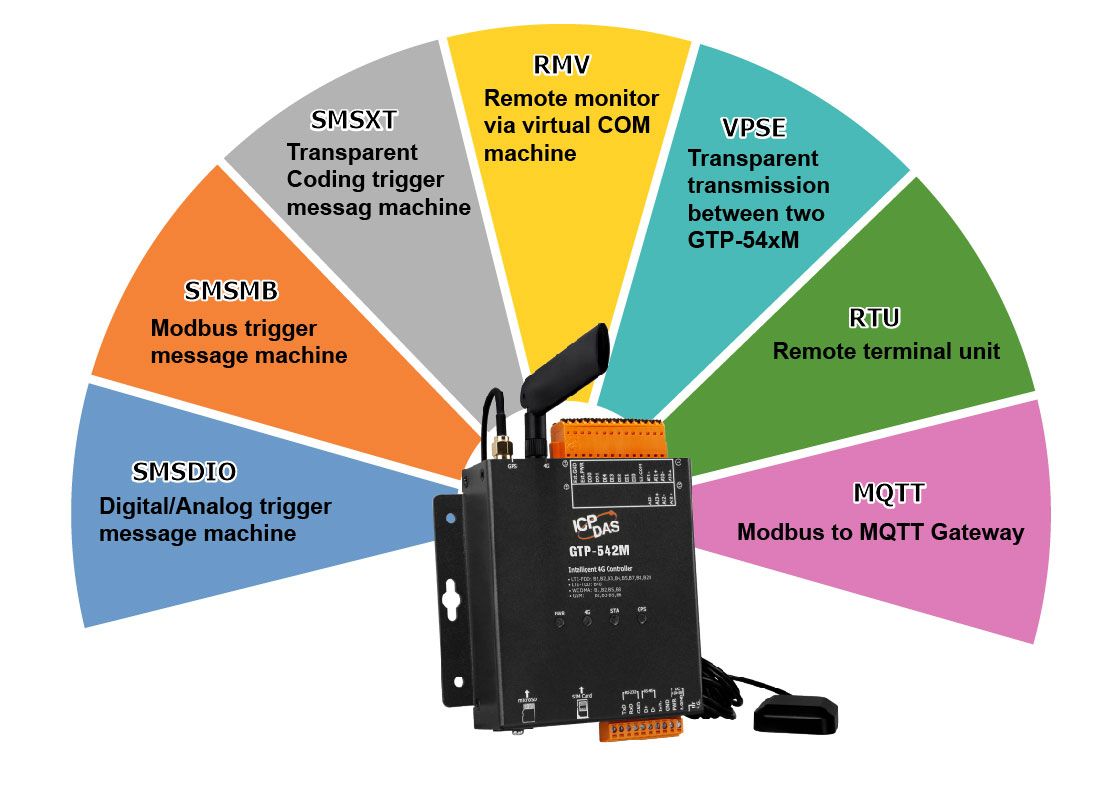

GTP-542M is smart 4G multi-functional controller developed by ICP DAS specifically for IoT applications. Its features include SMS/voice alarms, gateway, and remote terminal unit (RTU). Users can switch between different types of firmware using an SD card, depending on their application needs. ICP DAS also provides related software solutions, such as SMSDBS, VxServer, and RTU Center, to help users quickly build application platforms and reduce development costs.

※ Only one function can be selected and switched according to the firmware.

Applications

Modbus SMS Function (SMSMB Firmware)

Support Modbus slave communication to trigger SMS, voice alarm or built-in DO. 127 groups of alarm can be customized, each group can be set according to ON/OFF 2 kinds of SMS content and voice. 16 groups of phone books can be customized, each group can set 16 phone numbers. Each group of alarm can specify more than one phone book. The SMS content is up to 70 Unicode characters. The SMS content and the phone number can be dynamically specified through Modbus RTU commands.

IO SMS Function (SMSDIO Firmware)

9 trigger conditions through the build-in AI/DI to trigger SMS or voice alarm. Each trigger condition can set 10 phone numbers. Trigger conditions through the build-in AI can be set for range detection Trigger conditions through the build-in DI can be set to Normal Close, Normal Open or Counter. Report DI, AI and Counter values regularly. The SMS content is up to 70 Unicode characters of 160 ASCII characters Send SMS through mobile phone to inquire about I/O status or set DO

Text SMS Function (SMSTXT Firmware)

Support ASCII command communication to trigger SMS or voice alarm. 127 groups of alarm can be customized, each group can be set 2 kinds of SMS content and voice. 16 groups of phone books can be customized, each group can be set 16 phone numbers. Each alarm can specify more than one phone book. The SMS content is up to 70 Unicode characters of 140 ASCII characters. The SMS content and the phone number can be dynamically specified through ASCII commands

Remote Terminal Unit Function (RTU Firmware)

Support Modbus slave communication, up to 3 Modbus devices can be connected.
Up to 32x DI, 32x DO, 16x AI and 16x AO status can be inquired for each Modbus device.
Report I/O status of Modbus device, I/O status of GTP-541M and GPS data to M2M RTU Center software on PC regularly.

RTU Mode
-Report I/O status of Modbus device, I/O status of GTP-541M and GPS data to M2M RTU Center software on PC regularly.
-Data received by M2M RTU Center can be saved to MS SQL, MySQL or MariaDB database.
-Application on PC can set build-in DO through M2M RTU Center.
E-Mail, FTP Mode
-Periodically log Modbus device I/O status, built-in I/O status, and GPS data
-Log files are uploaded via E-Mail attachment or FTP

Remote Maintain Function(RMV, VSPE Firmware)

RMV Firmware Mapping RS-232/485 of GTP-541M to virtual COM port on PC Transparent transmission between physical COM port (GTP-541M) and virtual COM port (PC). PC need to provide a fixed IP address. PC need to install VxServer and VxComm software. VxServer and VxComm software support Windows XP/7/10, 32-bit, 64-bit operating system.

VSPE Firmware Mapping RS-232/485 of GTP-541M to virtual COM port on PC Transparent transmission between physical COM port (GTP-541M) and virtual COM port (PC). PC need to provide a fixed IP address. Support Windows and Linux operating system. Support pair connection of 2 GTP-541M.

Modbus to MQTT Gateway (MQTT Firmware)

Support Modbus slave communication to configure message, publish message, and query message. 5 Publish Topic can be customized 5 Subscribe Topic can be customized

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES GTP-542M-UDR CR	DESCRIPTION4G Multi-Function Controller (Asia only, RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Software
Function	SMS, Gateway, RTU

CPU Module
Storage Expansion	microSDHC 32GB
Real Time Clock	Yes

LED Indicators
Status	1 x PWR<br>1 x 4G<br>1 x STA<br>1 x GPS

2G System
Frequency Band	B2, B3, B5, B8

3G System
Frequency Band	B1, B2, B5, B8

4G System
Frequency Band	FDD: B1, B2, B3, B4, B5, B7, B8, B28<br>TDD: B40

GPS/GNSS
Frequency	GPS: 1574.39~1576.44 MHz<br>GLONASS: 1597.5~1605.8 MHz<br>BD: 1559.05~1563.14 MHz<br>GALILEO: 1574.39~1576.44 MHz
Position Accuracy	Open Sky: 2.5m CEP
Protocol	Data Format: NMEA 0183

Analog Input
Channels	4 Channels
Type	Voltage
Range	-10~+10 V
Resolution	16-bit

Digital Input
Type	Wet Contact
Sink/Source (NPN/PNP)	Sink/Source, Isolated channel with common power or ground
ON Voltage Level	+5~+24 V
OFF Voltage Level	+1 V

Digital Output
Load Voltage	+24 V DC
Load Current	100 mA

COM Ports
Ports	1 x RS-232/RS-485, Non-isolated
Baud Rate	9600, 19200, 38400, 57600, 115200 bps

Power
Consumption	4.8W ( 200 mA @ 24 V DC)

Mechanical
Casing	Metal
Dimensions (mm)	113 x 125 x 34 (W x L x H)
Installation	DIN-Rail/Screw

Environment
Operating Temperature	-25~+75 °C
Storage Temperature	-40~+80 °C
Humidity	5~95% RH, Non-condensing
