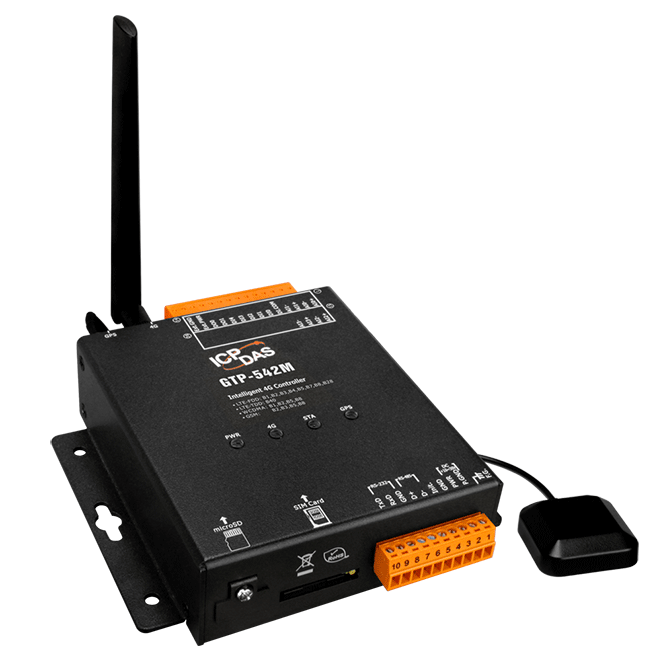

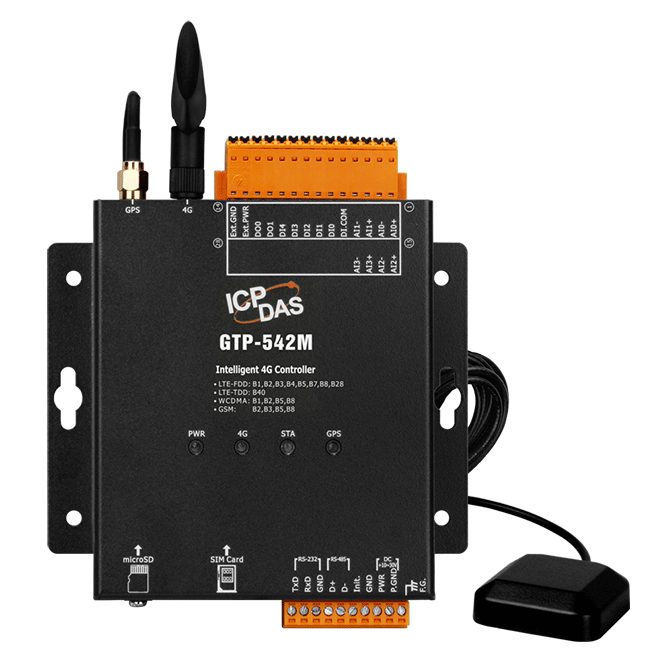

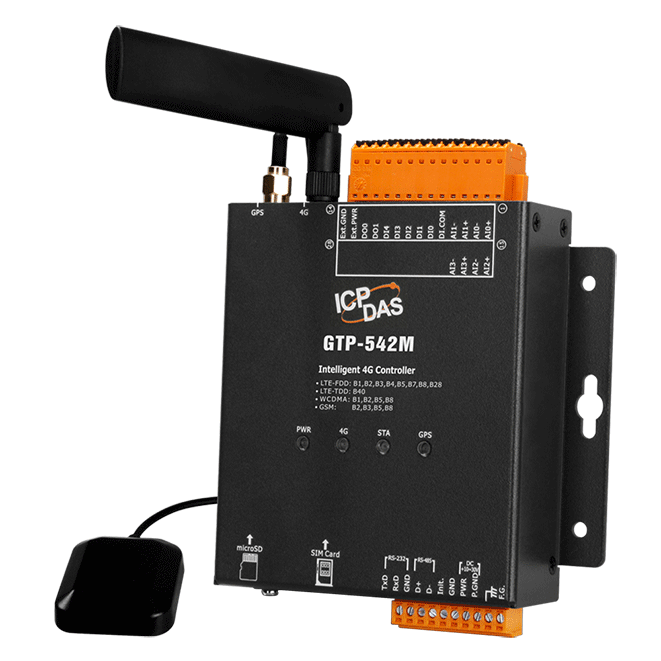

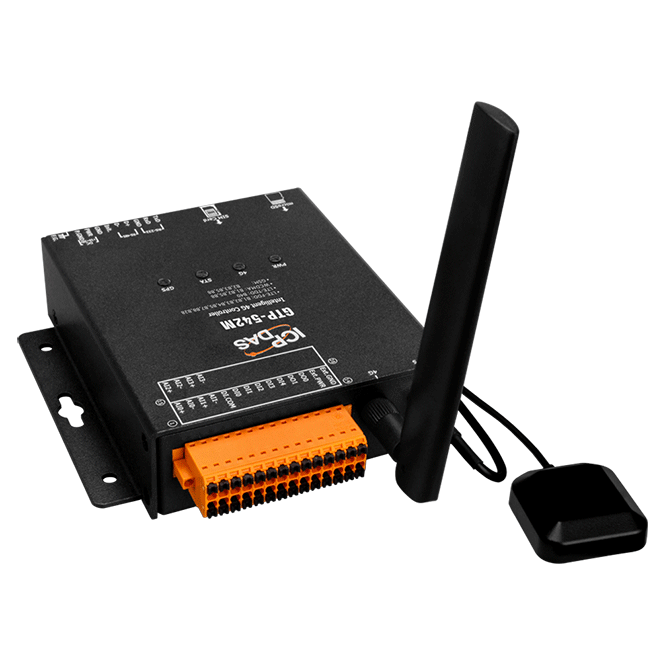

4G Multi-Function Controller (Asia only)

Features

I/O Trigger SMS/Voice Alarm Function
Modbus RTU Trigger SMS/Voice Alarm Function
Serial to 4G Gateway Function
Remote terminal unit (RTU) Function
Supports VoLTE

Introduction

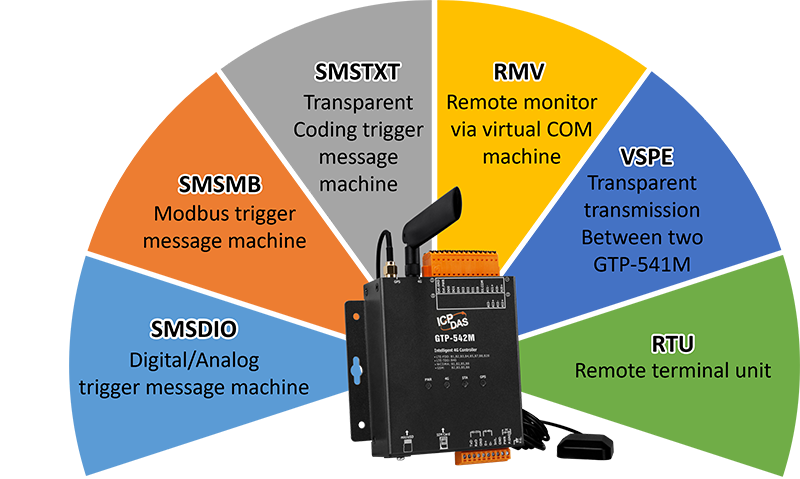

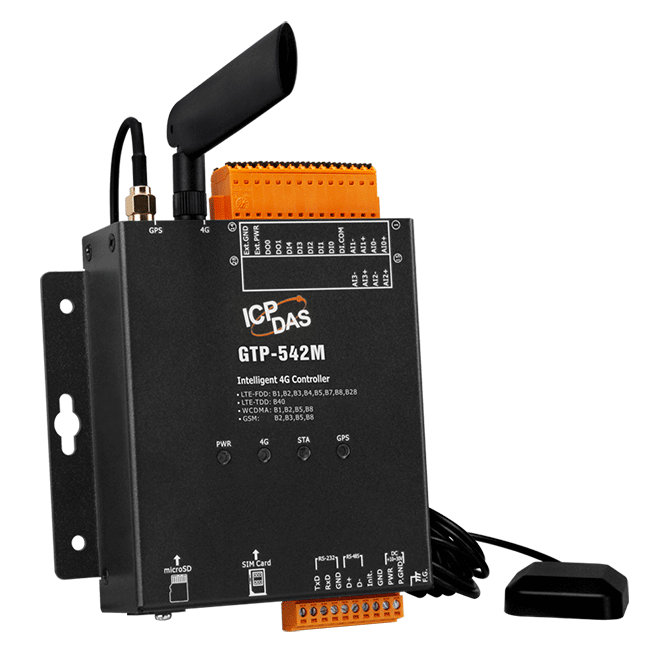

GTP-542M is smart 4G multi-functional controller developed by ICP DAS specifically for IoT applications. Its features include SMS/voice alarms, gateway, and remote terminal unit (RTU). Users can switch between different types of firmware using an SD card, depending on their application needs. ICP DAS also provides related software solutions, such as SMSDBS, VxServer, and RTU Center, to help users quickly build application platforms and reduce development costs.

※ Only one function can be selected and switched according to the firmware.

Applications

Modbus SMS Function (SMSMB Firmware)

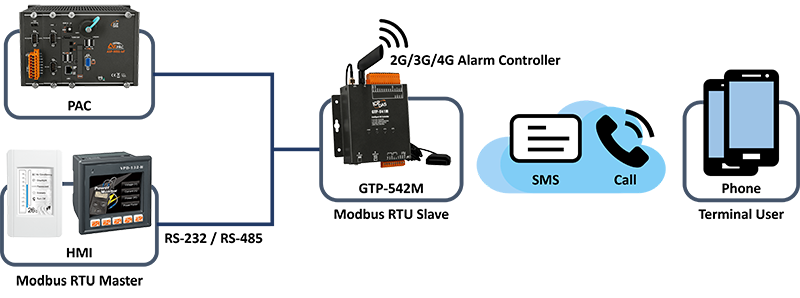

Send short messages and make voice calls through Modbus RTU protocol. 127 trigger conditions, with each condition consisting of two messages. 16 phone books, with each phone book consisting of 16 phone numbers. The short message content and the target phone number can be dynamically specified through Modbus RTU protocol. The short message content supports up to 70 Unicode characters.

IO SMS Function (SMSDIO Firmware)

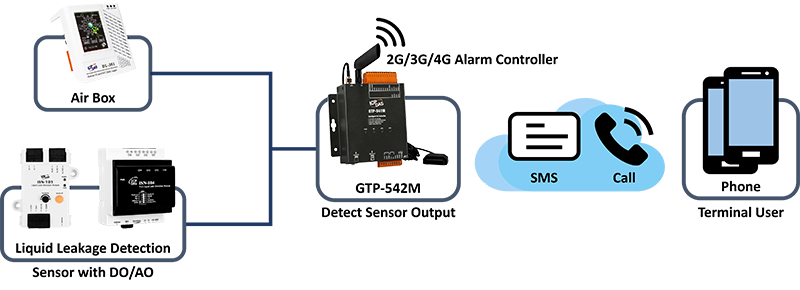

Send short messages and make voice calls through the built-in 5 × DI and 4 × AI. Each trigger condition can set 10 phone numbers. Send short message to the device to query I/O status or control DO. The short message content supports up to 70 Unicode characters or 160 ASCII characters.

Remote Terminal Unit Function (RTU Firmware)

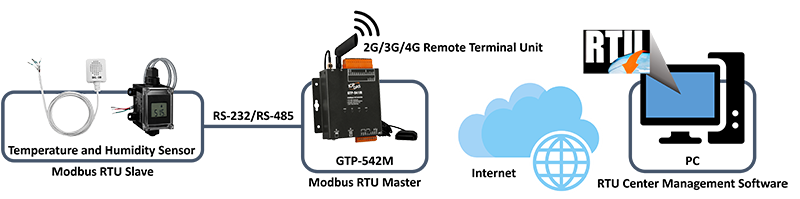

Supports up to three Modbus RTU slaves. Supports up to 32 x DI, 32 x DO, 16 x AI, and 16 x AO data acquisition for each Modbus RTU slave.

Gateway Function

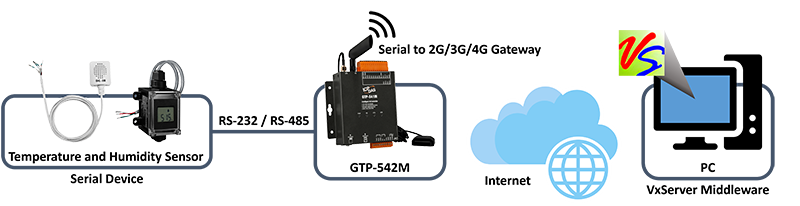

Map the built-in RS-232 / RS-485 to a TCP socket or a virtual COM port.

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES GTP-542M CR	DESCRIPTION4G Multi-Function Controller (RoHS)(Asia only)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Software
Function	SMS, Gateway, RTU

Main Unit
Storage	microSDHC 32GB
Real Time Clock	Yes

LED Indicators
Status	1 x PWR 1 x 4G 1 x STA 1 x GPS

2G System
Frequency Band	B2, B3, B5, B8

3G System
Frequency Band	B1, B2, B5, B8

4G System
Frequency Band	FDD: B1, B2, B3, B4, B5, B7, B8, B28 TDD: B40

GPS/GNSS
Frequency	GPS: 1574.39~1576.44 MHz GLONASS: 1597.50~1605.80 MHz BD: 1559.05~1563.14 Hz GALILEO: 1574.39~1576.44 MHz
Position Accuracy	Open Sky: 2.5m CEP
Protocol	Data Format: NMEA 0183

Analog Input
Channels	4 Channels
Type	Voltage
Range	-10~+10 V
Resolution	16-bit

Digital Input
Type	Wet Contact
Sink/Source (NPN/PNP)	Sink/Source, Isolated channel with common power or ground
ON Voltage Level	+5~+24 V
OFF Voltage Level	+1 V

Digital Output
Load Voltage	+24 V DC
Load Current	100 mA

COM Ports
Ports	1 x RS-232/RS-485, Non-isolated
Baud Rate	9600, 19200, 38400, 57600, 115200 bps

Power
Consumption	4.8W ( 200 mA @ 24 V DC)

Mechanical
Casing	Metal
Dimensions (mm)	113 x 125 x 34 (W x L x H)
Installation	DIN-Rail/Screw

Environment
Operating Temperature	-25~+75 °C
Storage Temperature	-40~+80 °C
Humidity	5~95% RH, Non-condensing
