GTP-541M

4G Multi Function Controller with GPS (Asia Only)(Does not support VoLTE)

Features

Support LTE-FDD Band B1/B3/B8
Support LTE-TDD Band B38/B39/B40/B41
Support WCDMA/HSPA+ Dual-band 900/2100 MHz
Support GSM/GPRS Dual-band 900/1800 MHz
1 x RS-485 and 1 x RS-232 for general COM port
Power Reverse Polarity Protection
Power supply +10 VDC ~ +30 VDC
I/O Trigger SMS/Voice Alarm Function
Modbus Trigger SMS/Voice Alarm Function
4G RTU Function with GPS
4G/Serial gateway function

Introduction

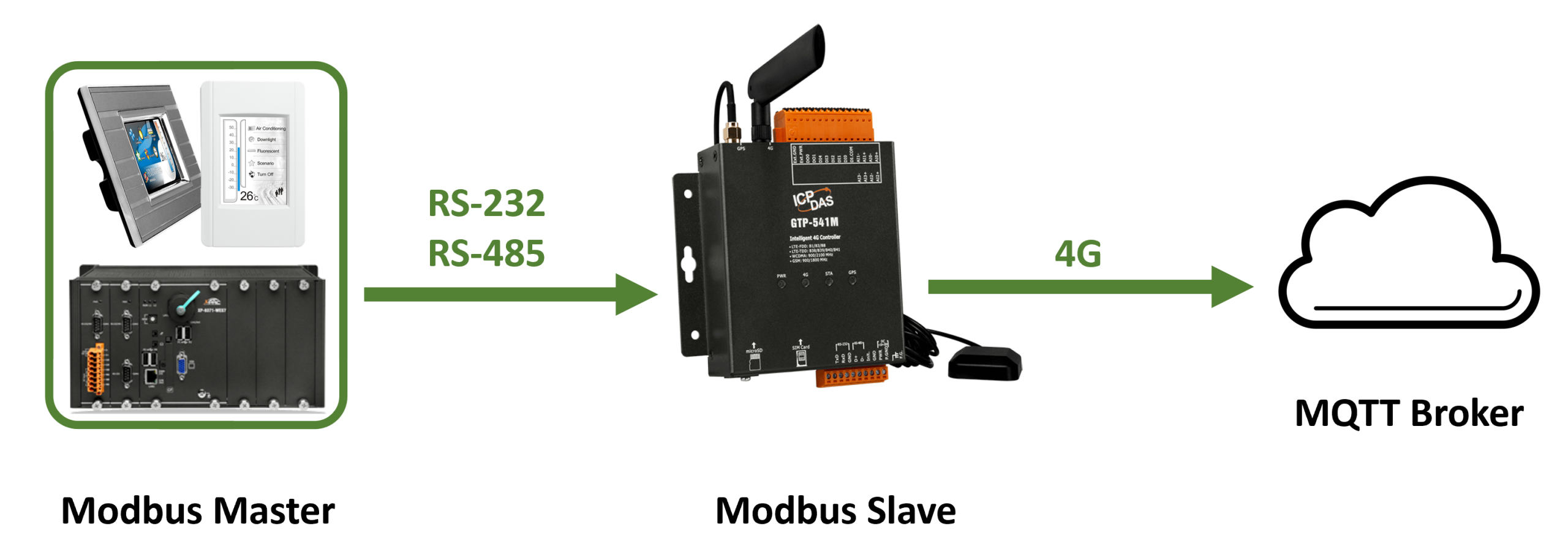

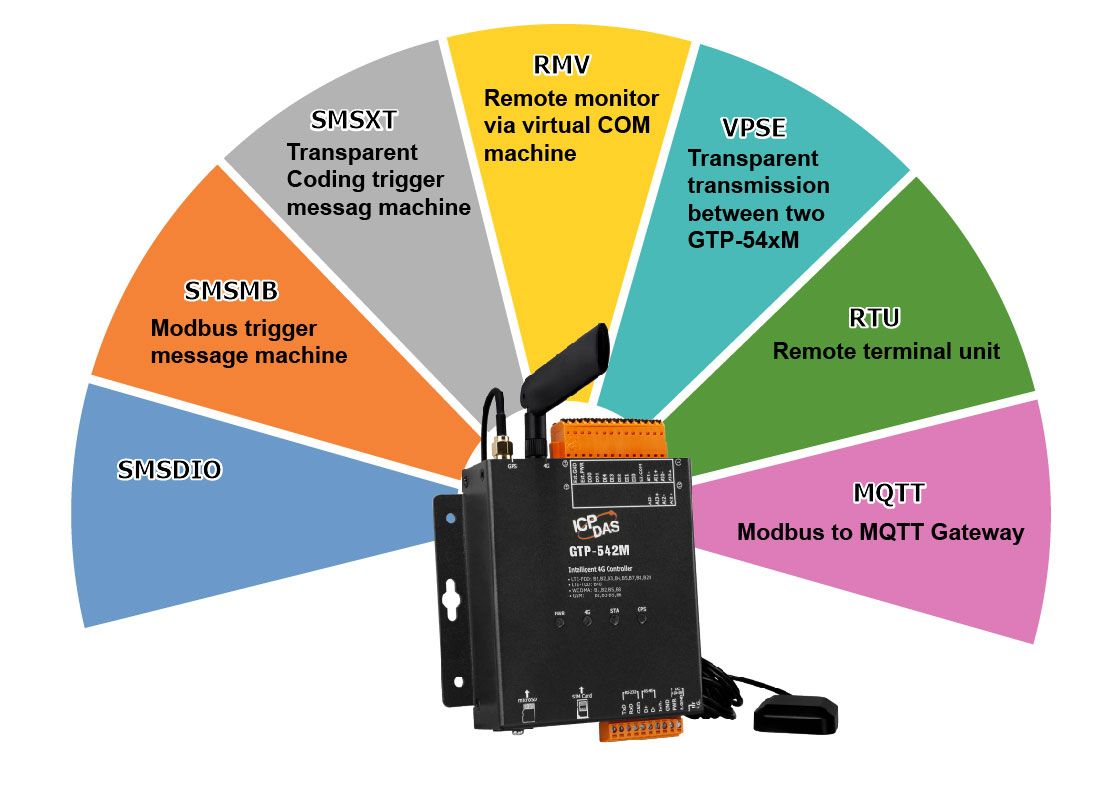

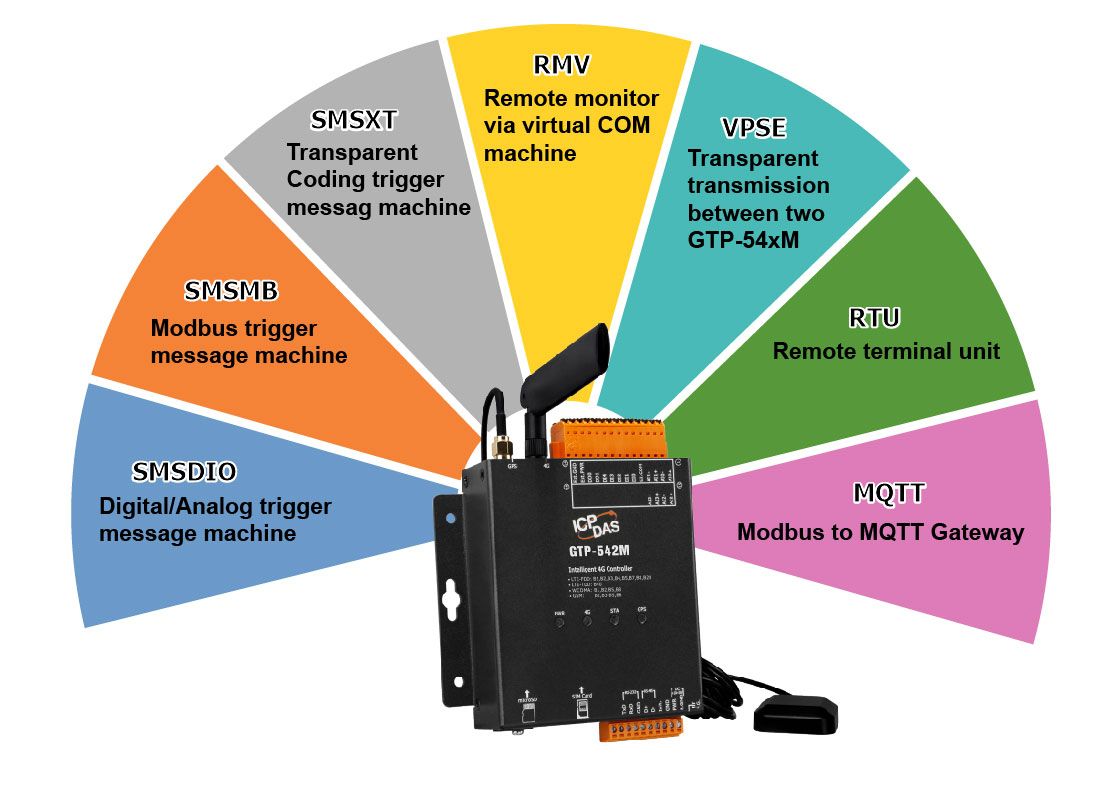

The GTP-541M is an industrial smart 4G remote terminal device that is backward compatible with the 2G/3G frequency band and can be used with different software interfaces to meet user needs. 4G remote terminal equipment transmits I/O signals to the remote management platform through LTE/WCDMA/GPRS. ICP also provides related software support to facilitate customers to quickly establish monitoring programs. These softwares include VxServer. Virtual COM software such as VxComm. In addition, users can switch GTP-541M different functions such as ModBusSMS, DIOSMS and RMV through SD card replacement firmware to meet different application requirements. The powerful features of the GTP-541M reduce user development costs and time, making it ideal for IoT applications.

※ Only one function can be selected and switched according to the firmware.

Applications

Modbus SMS Function (SMSMB Firmware)

Support Modbus slave communication to trigger SMS, voice alarm or built-in DO. 127 groups of alarm can be customized, each group can be set according to ON/OFF 2 kinds of SMS content and voice. 16 groups of phone books can be customized, each group can set 16 phone numbers. Each group of alarm can specify more than one phone book. The SMS content is up to 70 Unicode characters. The SMS content and the phone number can be dynamically specified through Modbus RTU commands.

IO SMS Function (SMSDIO Firmware)

9 trigger conditions through the build-in AI/DI to trigger SMS or voice alarm. Each trigger condition can set 10 phone numbers. Trigger conditions through the build-in AI can be set for range detection Trigger conditions through the build-in DI can be set to Normal Close, Normal Open or Counter. Report DI, AI and Counter values regularly. The SMS content is up to 70 Unicode characters of 160 ASCII characters Send SMS through mobile phone to inquire about I/O status or set DO

Text SMS Function (SMSTXT Firmware)

Support ASCII command communication to trigger SMS or voice alarm. 127 groups of alarm can be customized, each group can be set 2 kinds of SMS content and voice. 16 groups of phone books can be customized, each group can be set 16 phone numbers. Each alarm can specify more than one phone book. The SMS content is up to 70 Unicode characters of 140 ASCII characters. The SMS content and the phone number can be dynamically specified through ASCII commands

Remote Terminal Unit Function (RTU Firmware)

Support Modbus slave communication, up to 3 Modbus devices can be connected.
Up to 32x DI, 32x DO, 16x AI and 16x AO status can be inquired for each Modbus device.
Report I/O status of Modbus device, I/O status of GTP-541M and GPS data to M2M RTU Center software on PC regularly.

RTU Mode
-Report I/O status of Modbus device, I/O status of GTP-541M and GPS data to M2M RTU Center software on PC regularly.
-Data received by M2M RTU Center can be saved to MS SQL, MySQL or MariaDB database.
-Application on PC can set build-in DO through M2M RTU Center.
E-Mail, FTP Mode
-Periodically log Modbus device I/O status, built-in I/O status, and GPS data
-Log files are uploaded via E-Mail attachment or FTP

Remote Maintain Function(RMV, VSPE Firmware)

RMV Firmware Mapping RS-232/485 of GTP-541M to virtual COM port on PC Transparent transmission between physical COM port (GTP-541M) and virtual COM port (PC). PC need to provide a fixed IP address. PC need to install VxServer and VxComm software. VxServer and VxComm software support Windows XP/7/10, 32-bit, 64-bit operating system.

VSPE Firmware Mapping RS-232/485 of GTP-541M to virtual COM port on PC Transparent transmission between physical COM port (GTP-541M) and virtual COM port (PC). PC need to provide a fixed IP address. Support Windows and Linux operating system. Support pair connection of 2 GTP-541M.

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES GTP-541M CR	DESCRIPTION4G Multi Function Controller with GPS (RoHS) (Asia Only)(Does not support VoLTE)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Software
Service	Virtual COM, RTU, SMS Alarm

CPU Module
CPU	ARM Cortex™ A5 processor
Storage Expansion	SD Card (Max. 32GB SDHC)
Real Time Clock	Provide seconds, minutes, hours, day of week/month, month and year
Watchdog Timer	Yes

LED Indicators
Status	1 x PWR 1 x 4G 1 x STA 1 x GPS

2G System
Data Transmission Rate	GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 85.6kbps
Frequency Band	900/1800 MHz
Coding Schemes	CS 1, CS 2,CS 3,CS 4
CSD	GSM Downlink transfer: Max. 14.4 kbps; Uplink transfer: Max. 14.4 kbps
GPRS Multi-slot	GPRS class 12; GPRS station class B
Power Class	Class 4 (2 W @ 900 MHz) Class 1 (1 W @ 1800 MHz)
SMS Format	Sending: UCS2/7bits Receiving: UCS2/7bits

3G System
Data Transmission Rate	DC-HSPA+ Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps
Frequency Band	WCDMA 900/2100 MHz
Power Class	Class 3(250mW @ WCDMA)

4G System
Data Transmission Rate	LTE(Cat.3) Downlink transfer: Max. 100 Mbps; Uplink transfer: Max. 50Mbps
Frequency Band	FDD LTE : B1/B3/B8 TDD LTE : B38/B39/B40/B41

GPS/GNSS
Protocol	NMEA 0183
Support Channels	32

Analog Input
Channels	4
Type	Voltage
Range	+10V ~ -10V
Resolution	16-bit

Digital Input
Channels	5
Type	Wet Contact
Sink/Source (NPN/PNP)	Sink/Source, Isolated channel with common power or ground
ON Voltage Level	+5V ~ +24V
OFF Voltage Level	+1V Max

Digital Output
Channels	2
Load Voltage	+24 VDC Max
Load Current	100mA Max

COM Ports
Ports	1 x RS-232/485, Non-isolated
Baud Rate	9600、19200、38400、57600 and 115200 bps

Power
Consumption	4.8W ( 200 mA @ 24 VDC)

Mechanical
Casing	Metal
Dimensions (mm)	113 x 125 x 34 (W x L x H)
Installation	DIN-Rail/ Screw

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +80 °C
Humidity	5 ~ 95% RH, Non-condensing

Support Software


M2M RTU Center	M2M RTU series management software
M2M RTU Win32 API	M2M RTU development tool
NAPOPC.M2M DA Server	OPC Server for M2M RTU devices
