2G/3G Multi Function Controller with GPS
Features
- Support WCDMA 850/900/1900/2100 MHz frequency.
- Support GPRS 850/900/1800/1900 MHz frequency.
- Intelligent multiport serial to 2G/3G gateway.
- Intelligent 2G/3G Remote Terminal Unit (RTU).
- Intelligent 2G/3G SMS/Voice alarm controller(SMS).
- 1 x RS-232 port and 1 x RS-485 port for Virtual COM. 1 x Utility port for Configuration.
- Built-in Watch-dog Function.
- Power Reverse Polarity Protection.
- Power supply +10 VDC ~ +30 VDC.
- Support GPS function.
Introduction
GTP-500M is an intelligent Controller with GPS. Within the high performance 32 bit CPU, GTP-500M is suited for the harsh industrial environment. It features 3G module, 1 RS-232, 1 RS-485, SD and one I/O expansion bus interface. It can be used in M2M application fields to transfer GPS and data of Modbus device via WCDMA/GPRS. GTP-500M has three functions for different requirement, including RTU function, RMV function and SMS function. Therefore, GTP-500M is an ideal solution for environmental monitoring, remote device management and vehicle monitoring system for M2M applications.

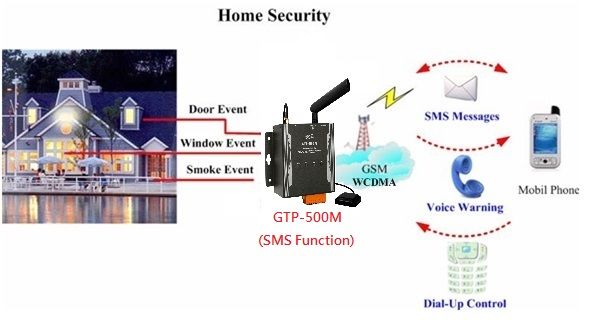

Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| Service | Virtual COM, RTU, SMS Alarm |
| CPU Module | |
|---|---|
| CPU | ARM Microprocessor |
| Watchdog Timer | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x PWR 1 x 3G 1 x STA1 1 x STA2 1 x GPS |
| 2G System | |
|---|---|
| Data Transmission Rate | GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps |
| Frequency Band | 850/900/1800/1900 MHz |
| Coding Schemes | CS 1, CS 2,CS 3,CS 4 |
| GPRS Multi-slot | GPRS class 12; GPRS station class B |
| Power Class | Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 MHz) |
| SMS Format | Sending: UCS2 Receiving: UCS2/7bits |
| 3G System | |
|---|---|
| Data Transmission Rate | HSPA Downlink transfer: Max. 7.2 Mbps; Uplink transfer: Max 5.76 Mbps HSDPA Max. 7.2 Mb/s WCDMA Max. 384 kb/s Download/Upload link |
| Frequency Band | WCDMA 850/900/1900/2100 MHz |
| Power Class | Class 3 (250mW @ WCDMA/HSPA) |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 1 x RS-485 (3000VDC Isolated) |
| Baud Rate | 9600 bps and 115200 bps |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 117 x 137 x 58 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Support Software
| M2M RTU Center | M2M RTU series management software | ||
| M2M RTU Win32 API | M2M RTU development tool | ||
| NAPOPC.M2M DA Server | OPC Server for M2M RTU devices | ||
| EZ Data Logger | The small data logger software of ICP DAS | ||
| InduSoft SCADA | SMS Monitor/Database System Software Solution for GT-53x series | ||
