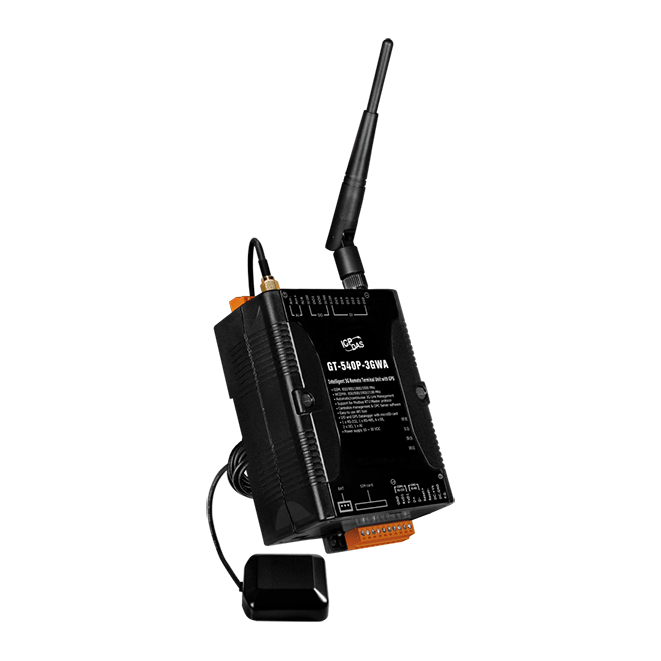

3G Remote Terminal Unit with GPS (Asia Only)
Features
- Automatic/continuous WCDMA/GPRS Link Management.
- Support Modbus RTU protocol to connect to Max 3 Modbus RTU devices via RS-485 port.
- Support M2M OPC server for SCADA system.
- Easy-to-use API tool for users to develop their applications by various program development tools.
- Be the WCDMA/GPRS I/O devices.
- Support GPS function.
- Local I/O linkage function to make the simple local control.
- Support 3.7V Li-ion Battery backup.
- Power supply 10 ~ 30 VDC.
Introduction

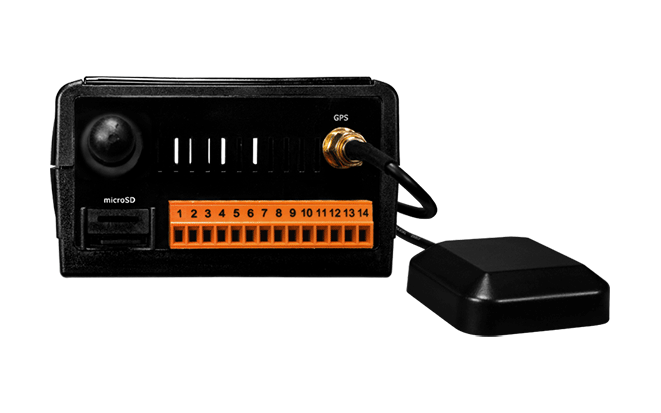

GT-540P-3GWA is an intelligent Active 3G Remote Terminal Unit with GPS. Within the high performance 32 bit CPU, GT-540P-3GWA is suit for the hard industrial environment. It features 3G module, 6 digital inputs, 2 digital outputs, 1 analog input, 1 RS-232, 1 RS-485 and SD interface. It can be used in M2M application fields to transfer the local I/O, GPS and Modbus device's data via WCDMA/GPRS by the defined period or DI/AI triggers. The local I/O and GPS data can also be stored in the SD card to become a remote data logger. For another communication path, GT-540P-3GWA offers the E-mail mode to transfer the data by E-mail via WCDMA/GPRS for users to choose. The simple I/O linkage function of GT-540P-3GWA can reach the real time control in the local field. It also supports Li-ion battery as another power source when the main power is failed temporarily. Therefore, GT-540P-3GWA is an ideal solution for environmental monitoring, remote device management and vehicle monitoring system for M2M applications. Meanwhile, it is supplied with easy-to-use API and OPC server Software that streamline application development process, freeing system integrators from dealing with complex communication protocols of WCDMA/GPRS and the Internet.

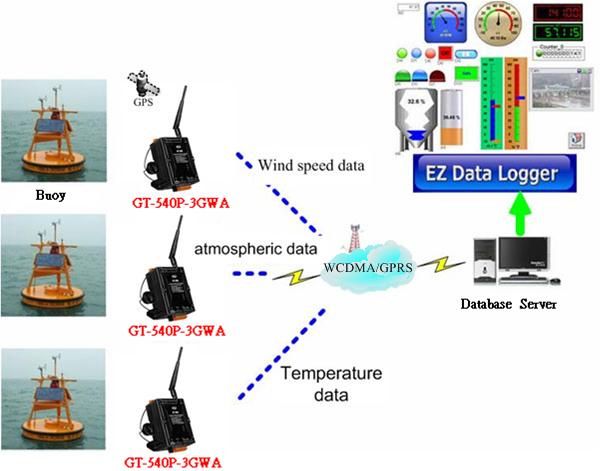

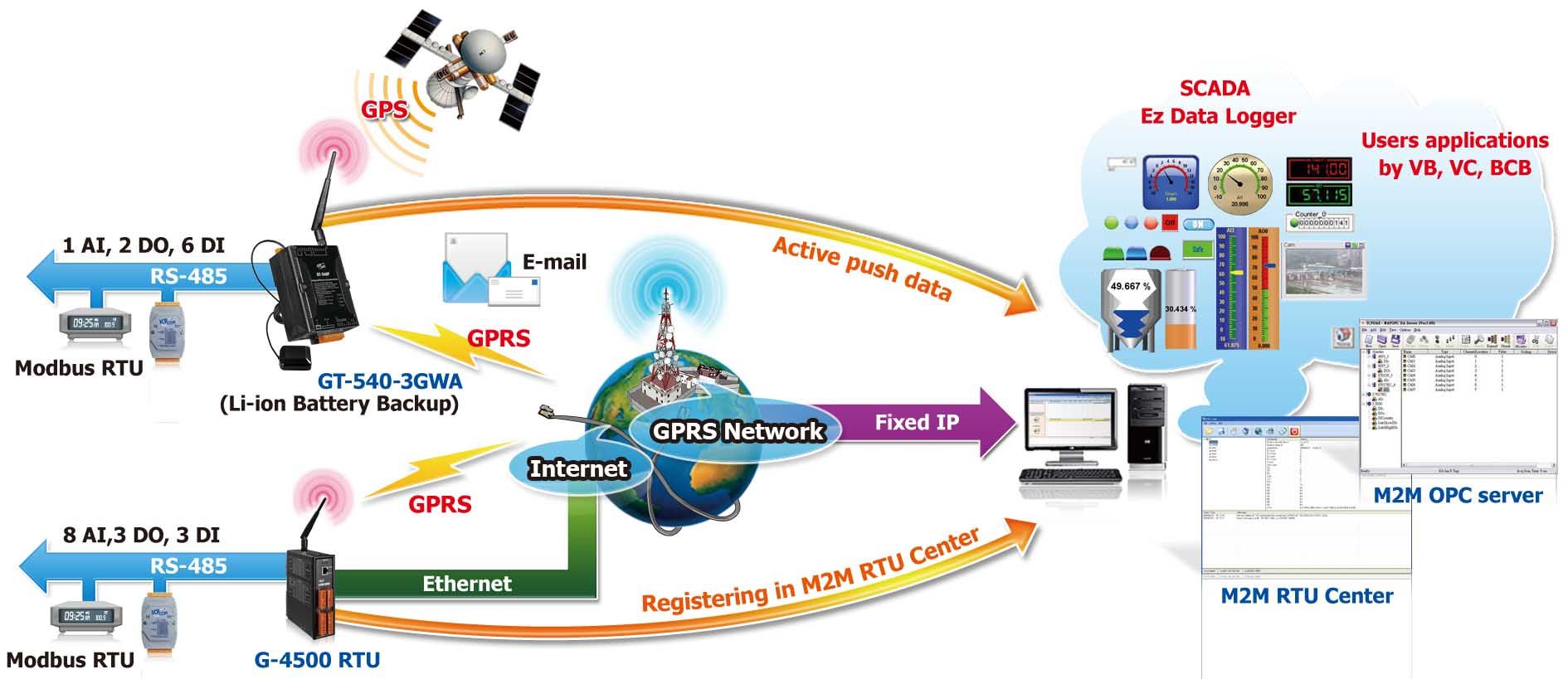

Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| Service | RTU |
| CPU Module | |
|---|---|
| CPU | 32 bit CPU |
| Flash | 512 Kbytes |
| SRAM | 64 Kbytes |
| Storage Expansion | 4GB max. |
| Real Time Clock | Gives time(sec, min, hour) & date, leap year compensation from 1980 to 2079 |
| Watchdog Timer | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x EXT 1 x 3G 1 x STA 1 x GPS |
| 2G System | |
|---|---|
| Data Transmission Rate | GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps |
| Frequency Band | 850/900/1800/1900 MHz |
| Coding Schemes | CS 1, CS 2,CS 3,CS 4 |
| GPRS Multi-slot | GPRS class 12; GPRS station class B |
| Power Class | Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 MHz) |
| 3G System | |
|---|---|
| Data Transmission Rate | HSPA Downlink transfer: Max. 7.2 Mbps; Uplink transfer: Max 5.76 Mbps HSDPA Max. 7.2 Mb/s WCDMA Max. 384 kb/s Download/Upload link |
| Frequency Band | WCDMA 850/900/1900/2100 MHz |
| Power Class | Class 3 (250mW @ WCDMA/HSPA) |
| GPS/GNSS | |
|---|---|
| Acquisition Time | Hot start (Open Sky) = 2 s(typical) Cold start (Open Sky) = 36 s(typical) |
| Protocol | GPRMC format (NMEA 0183 version 3.01) |
| Sensitivity | Tracking = up to -159 dBm (with external LNA) Cold start = up to -146 dBm (with external LNA) |
| Support Channels | 32 |
| Analog Input | |
|---|---|
| Channels | 1 |
| Type | Current |
| Range | 0 ~ 20 mA |
| Resolution | 12-bit |
| Digital Input | |
|---|---|
| Channels | 6 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source, Isolated channel with common power or ground |
| ON Voltage Level | +3.5 ~ 30 VDC |
| OFF Voltage Level | +1V max. |
| Response Speed | 6 (5~40Hz), Min. Pulse Width : 25ms |
| Isolation | 3750Vrms |
| Digital Output | |
|---|---|
| Channels | 2 |
| Type | Open-Collector (NPN) (100mA@30VDC) |
| Load Voltage | +30 V max. |
| Load Current | 100 mA max. |
| Isolation | 3750Vrms |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (Configuration) 1 x RS-485 |
| Power | |
|---|---|
| Consumption | Idle: 65 mA @ 24 VDC; Data Link: 170 mA @ 24 VDC; Peak: 450 mA @ 24 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 91 x 132 x 52 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ℃ ~ +75 ℃ |
| Storage Temperature | -40 ℃ ~ +80 ℃ |
| Humidity | 5~95% RH, non-condensing |
Utility

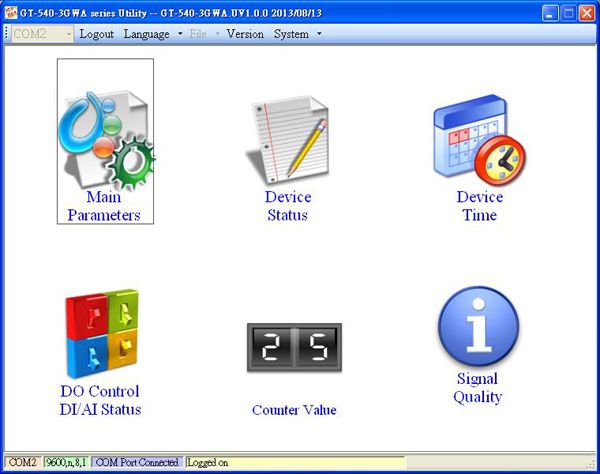

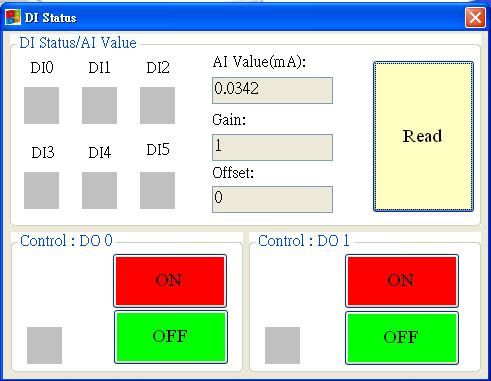

ICP DAS provide graphic tool for users to configure GT-540P-3GWA. The utility also can help users to test GT-540P-3GWA in the Lab before they apply in the real site.
Support Software
| M2M RTU Center | M2M RTU series management software | ||
| M2M RTU Win32 API | M2M RTU development tool | ||
| NAPOPC.M2M DA Server | OPC Server for M2M RTU devices | ||
| EZ Data Logger | The small data logger software of ICP DAS | ||
| InduSoft SCADA | SMS Monitor/Database System Software Solution for GT-53x series | ||
