GRP-500M
Ethernet/Serial/CAN to Ethernet/4G Gateway
Features
- Intelligent multiport serial gateway
- Intelligent Remote Terminal Unit (RTU)
- Support Ethernet, Serial port and CAN bus.
- Support Modbus RTU/TCP protocol
- Provide NAT and port forwarding function
- 4G / NB Modem (option)
- GPS function (option)
- High reliability in harsh environments.
- DIN-Rail mountable.
Introduction
The GRP-500M provided by ICP DAS is a gateway for Ethernet, serial port, and CAN. The GRP-500M can be used for wireless data transmission and other functions through its optional 4G / NB communication module. With the optional GPS module, the GRP-500M can also be used as a GPS tracking system for vehicle management or maritime system.
It can be used in M2M application to transmit remote I/O, Modbus data, or camera video. Within the high-performance CPU, the GRP-500M can process large amounts of data and is suitable for harsh industrial environments.
It can be used in M2M application to transmit remote I/O, Modbus data, or camera video. Within the high-performance CPU, the GRP-500M can process large amounts of data and is suitable for harsh industrial environments.
Applications
-

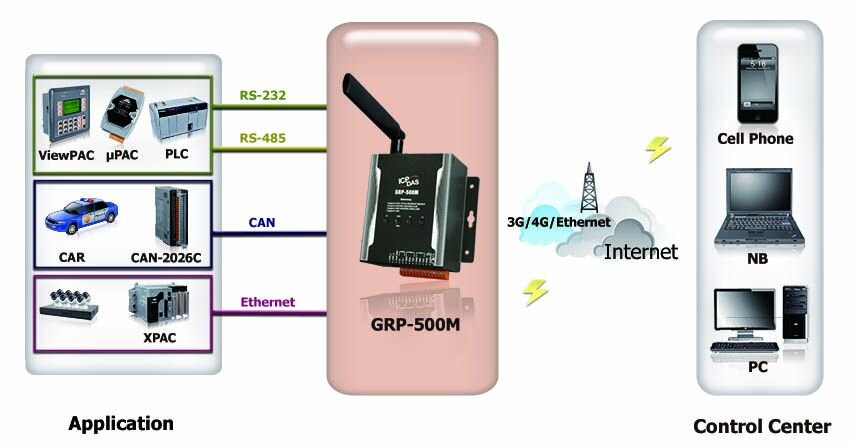

4G / Ethernet Gateway
-

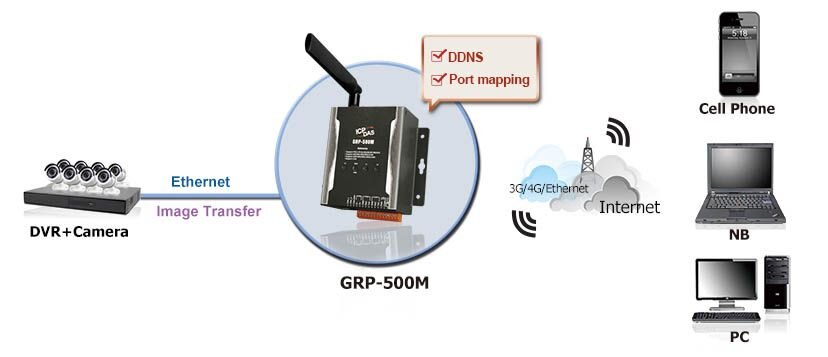

Remote Video Monitor
-

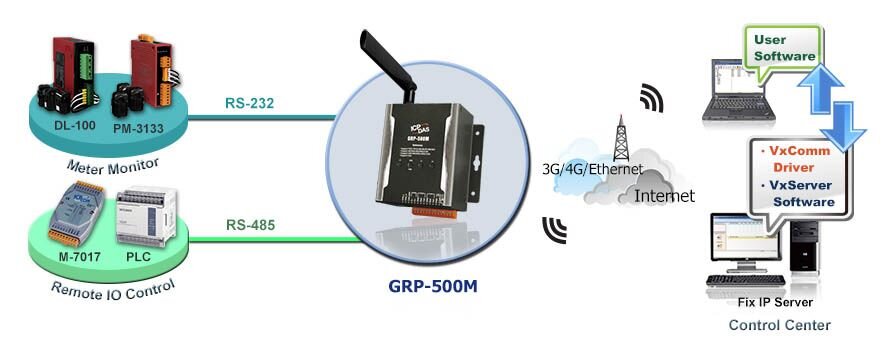

Serial Port to 4G / Ethernet Gateway Application
-

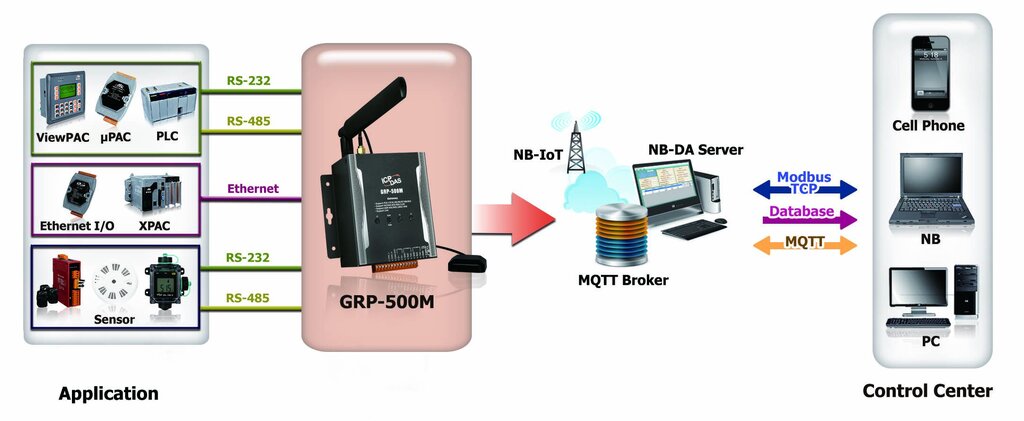

NB-IoT Gateway
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| CPU | ARM CPU |
| EEPROM | 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Storage Expansion | SD Card (Max. 32GB SDHC) |
| Watchdog Timer | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x RUN/PWR 1 x L1 1 x L2 1 x L3 |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100Base-T(X) |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (Console, Debug) 1 x RS-232 1 x RS-485 (3000VDC Isolated) |
| CAN | |
|---|---|
| Signal Line | CAN Bus (CAN_H, CAN_L) |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +48 VDC |
| Consumption | 4.8W ( 200 mA @ 24 VDC) |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
| Installation | DIN-Rail / Screw |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Support Software
| M2M RTU Center | M2M RTU series management software | ||
| M2M RTU Win32 API | M2M RTU development tool | ||
| NAPOPC.M2M DA Server | OPC Server for M2M RTU devices | ||
| EZ Data Logger | The small data logger software of ICP DAS | ||
| InduSoft SCADA | SMS Monitor/Database System Software Solution for GT-53x series | ||
