5G Edge Computing Controller (Asia Only)
Features
- Cortex-A53 CPU, 1.6 GHz, quad-core
- 1 GB LPDDR4 RAM and 8 GB eMMC Flash
- Linux Kernel 4.14.98
- Provide NAT and port forwarding function
- Intelligent Remote Terminal Unit (RTU)
- Intelligent multiport serial gateway
- Built-in 5G wireless module
- Support GPS/GLONASS/BeiDou (Compass)/Galileo
- Wi-Fi. Station & AP mode (option)
- Support Node-RED (flow-based programming tool)(option)
- 10/100/1000M Two Ethernet Ports
- 4 Serial Ports (RS-232/485)
Introduction

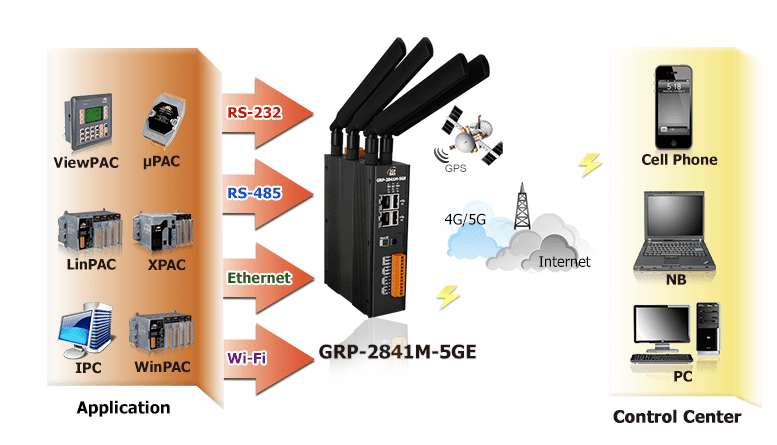

The GRP-2841M-5GE provided by ICP DAS is a 5G Edge Computing Controller. GRP-2841M-5GE can become a wireless router through its built-in 5G communication module, providing Ethernet and Wi-Fi (option) data transmission. It also has built-in GPS/GNSS functionality and can also be used as a GPS tracking system for vehicle management or marine systems. GRP-2841M-5GE supports Node-RED (flow-based programming tool), Users can create user control logic for field requirements through Node-Red. The GRP-2841M-5GE can process a large amount of data in a high-performance CPU and is suitable for harsh industrial environments.
Applications
-
5G Wireless Router
-
Remote Video Monitor
-

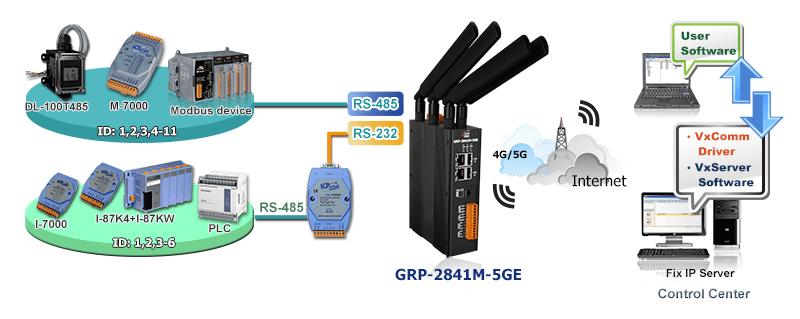

Serial Port Gateway Application
-
Node-RED Application
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| OS | Linux Kernel 4.14.98 |
| Service | SSH, Web, SNMP Server, SMTP, DDNS |
| Function | NAT and port forwarding function Remote Terminal Unit (RTU) Multiport serial gateway 5G wireless router (option) |
| Main Unit | |
|---|---|
| CPU | Cortex-A53 CPU, 1.6 GHz, quad-core |
| System Memory | 1 GB LPDDR4 SDRAM |
| Storage | 8 GB eMMC Flash, 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory | 64 KB FRAM; 128 KB MRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates,day of week, month, year |
| Watchdog Timer | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x PWR 1 x NET 1 x RUN 1 x L1 1 x L2 1 x L3 |
| 3G System | |
|---|---|
| Frequency Band | WCDMA B1/B2/B3/B4/B5/B6/B8/B19 |
| 4G System | |
|---|---|
| Frequency Band | FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/ B30/B32/B66/B71 TDD: B34/B38/B39/B40/B41/B42/B48 |
| 5G System | |
|---|---|
| Frequency Band | n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79 |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100/1000 Base-T(X) |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232(Console,Debug) 1 x RS-232 2 x RS-485(2500VDC,Isolated) |
| USB | |
|---|---|
| Ports | 2 x USB 2.0 |
| Power | |
|---|---|
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 9.6 W (0.4 A @ 24 VDC) |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 44 x 164 x 129 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
