GRP-2841M
4G/5G/ Ethernet Gateway
Features
- Cortex-A53 CPU, 1.6 GHz, quad-core
- 1 GB LPDDR4 RAM and 8 GB eMMC Flash
- Linux Kernel 4.14.98
- Provide NAT and port forwarding function
- Intelligent Remote Terminal Unit (RTU)
- Intelligent multiport serial gateway
- 4G / 5G wireless module (option)
- 64-bit Hardware Serial Number for Software Protection
- 10/100/1000M Two Ethernet Ports
- 4 Serial Ports (RS-232/485)
Introduction
The GRP-2841M provided by ICP DAS is a gateway for Ethernet and serial port. The GRP-2841M can be used for wireless data transmission and other functions through its optional 4G / 5G communication module. With the optional GPS function, the GRP-2841M can also be used as a GPS tracking system for vehicle management or maritime system. It can be used in M2M application to transmit remote I/O, Modbus data or camera video. Within the high-performance CPU, the GRP-2841M can process large amounts of data and is suitable for harsh industrial environments.
Applications
-

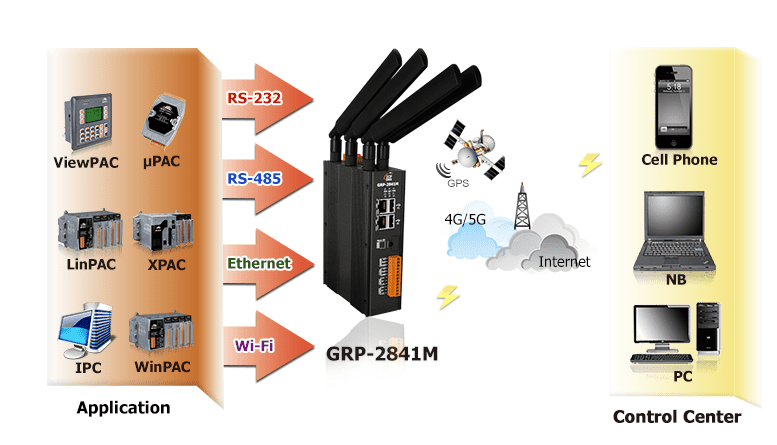

4G / 5G / Ethernet Gateway Application
-

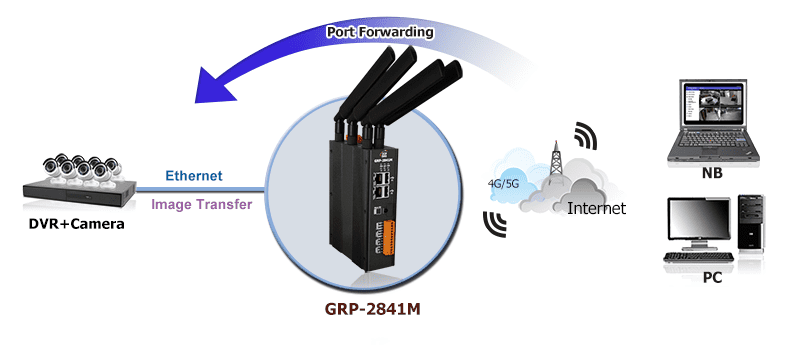

Remote Video Monitor
-

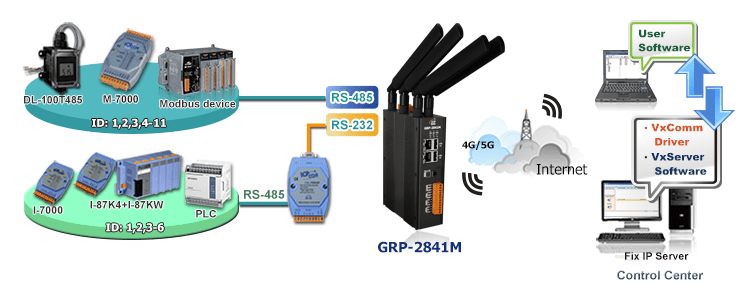

Serial Port Gateway Application
-

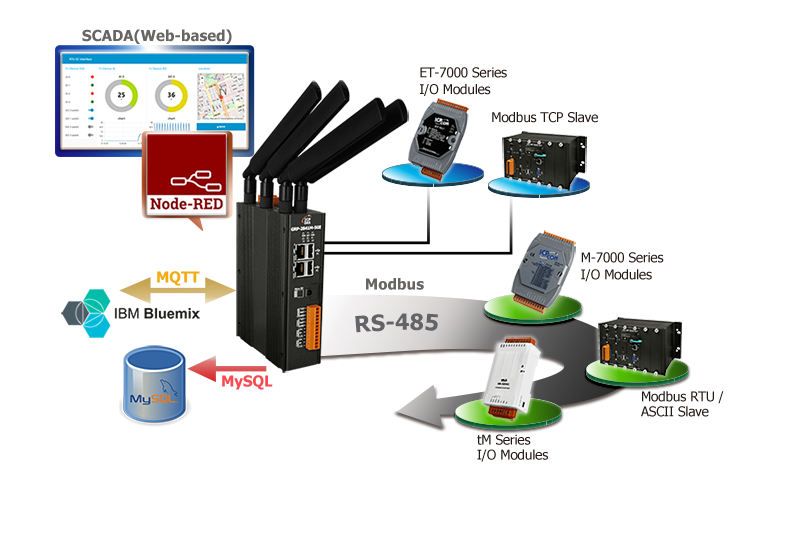

Node-RED Application
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| OS | Linux Kernel 4.14.98 |
| Service | SSH, Web, SNMP Server, SMTP, DDNS |
| Function | NAT and port forwarding function Remote Terminal Unit (RTU) Multiport serial gateway 4G/5G wireless router (option) |
| Main Unit | |
|---|---|
| CPU | Cortex-A53 CPU, 1.6 GHz, quad-core |
| System Memory | 1 GB LPDDR4 SDRAM |
| Storage | 8 GB eMMC Flash, 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory | 64 KB FRAM; 128 KB MRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates,day of week, month, year |
| Watchdog Timer | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x PWR 1 x NET 1 x RUN 1 x L1 1 x L2 1 x L3 |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100/1000 Base-T(X) |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232(Console,Debug) 1 x RS-232 2 x RS-485(2500VDC,Isolated) |
| USB | |
|---|---|
| Ports | 2 x USB 2.0 |
| Power | |
|---|---|
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 9.6 W (0.4 A @ 24 VDC) |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 44 x 164 x 129 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
