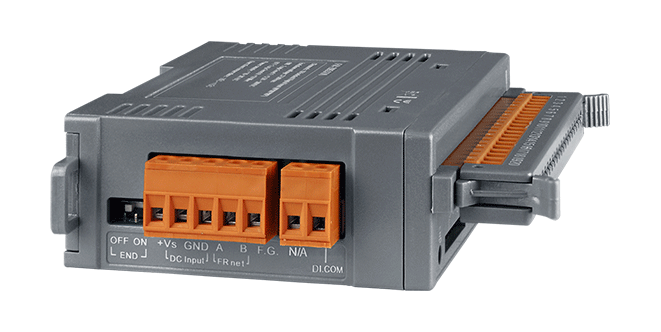

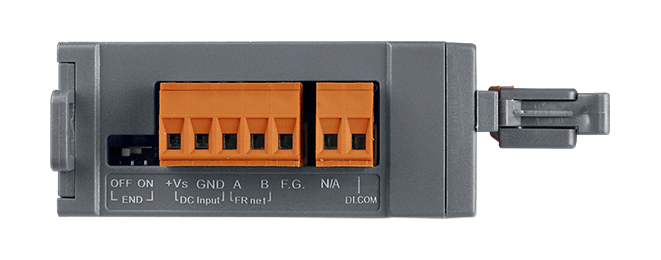

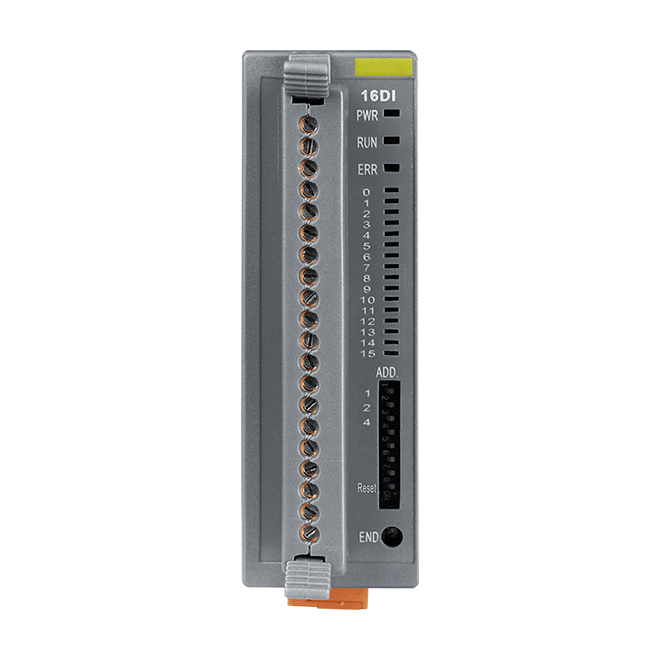

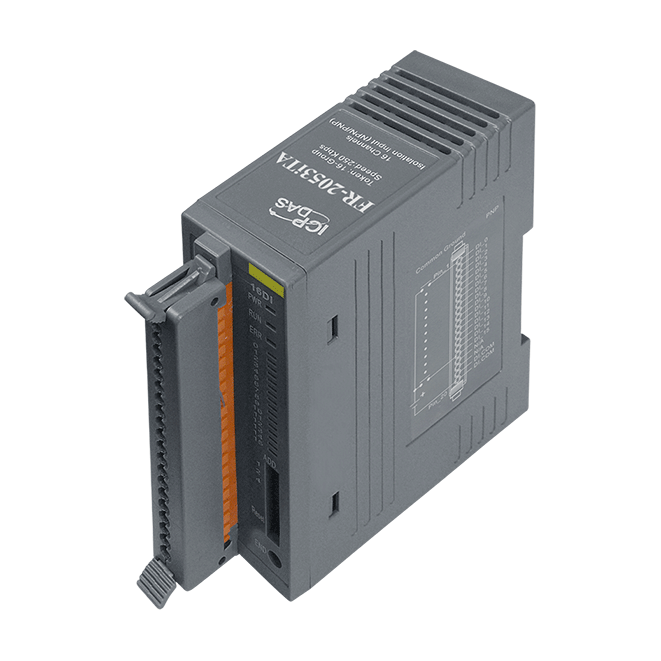

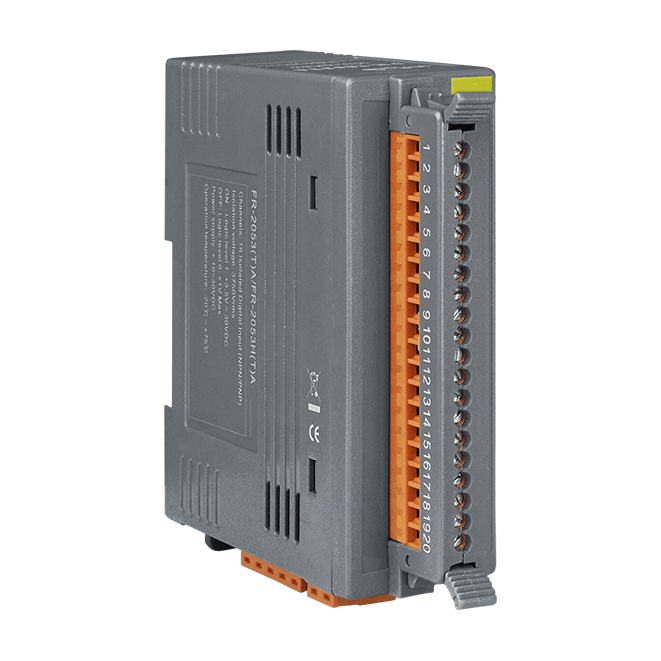

FR-2053iTA
FRnet I/O Module with 16-channel Isolated DI (3.5 ~ 30 VDC) and Isolated Communication Line
Features
- Built-in Wire-saving FRnet DI/DO control
- Simple synchronization mechanism
- No software overhead on protocol processing
- Supporting broadcasting (1:n data transmission)
- Duplicating output easily
- Fixed I/O scan-time and I/O synchronization
Introduction
The FR-2053iTA has 16-channel isolated Sink/Source input. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2053iTA; refer to literature related to I-8172W, FRB-200U.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 Vrms |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| Surge (IEC 61000-4-5) | Yes |
| LED Indicators | |
|---|---|
| Status | Power, Communication Run, Communication Error, Terminal Resistor, Digital Input |
| Digital Input | |
|---|---|
| Channels | 16 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source (NPN/PNP) |
| ON Voltage Level | +3.5 ~ +30 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Isolation | 3750 Vrms |
| Input Impedance | 3 KΩ |
| FRnet | |
|---|---|
| Wire Cable | 2-wire cabling Belden 9841 (2P twisted-pair cable), When different cables are used, the transmission distance may change |
| Transfer Speed | 250 kbps and 1Mbps (Default) DIP Switch Settings |
| Transfer Distance | Max. 400 m for speed 250 kbps Max. 100 m for speed 1M (Default) |
| Cyclic Time | 2.88 ms for speed 250 K 0.72 ms for speed 1M (Default) |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC (Isolation) |
| Consumption | 2.4 W Max. |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 x 102 x 107 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
