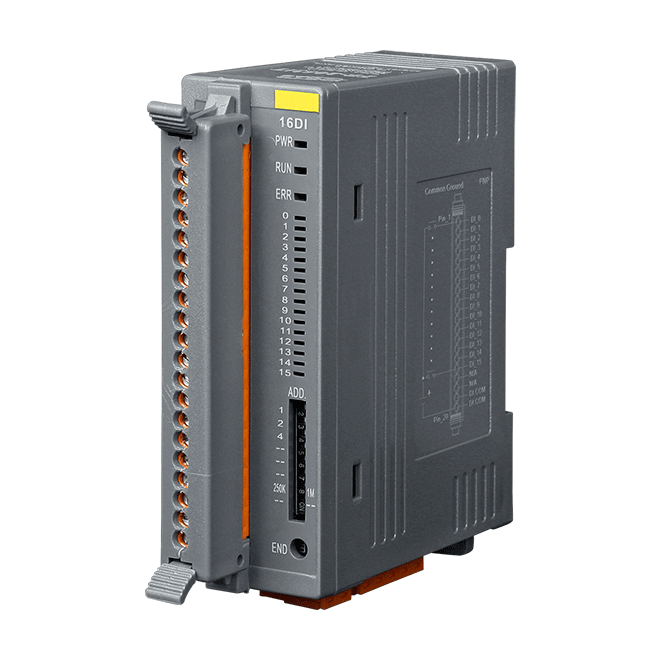

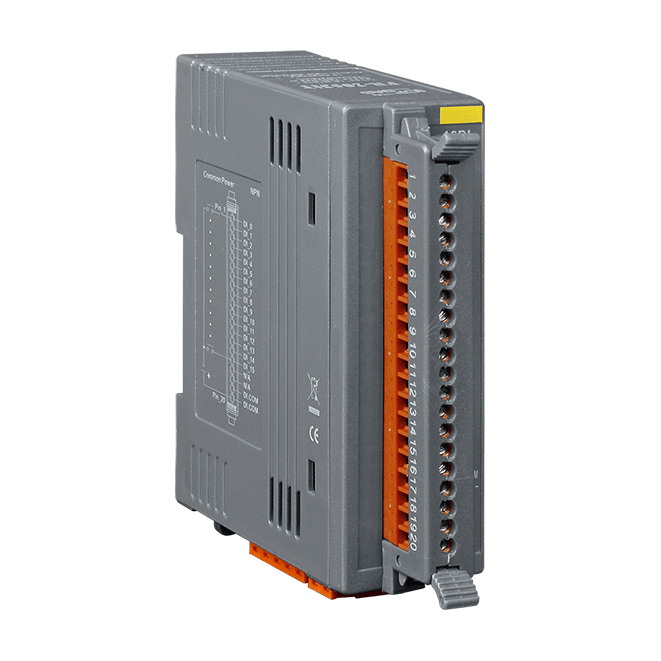

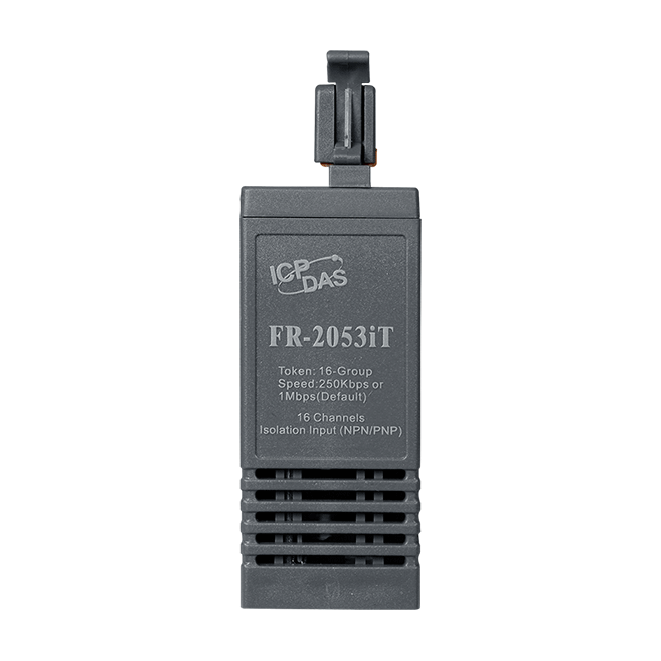

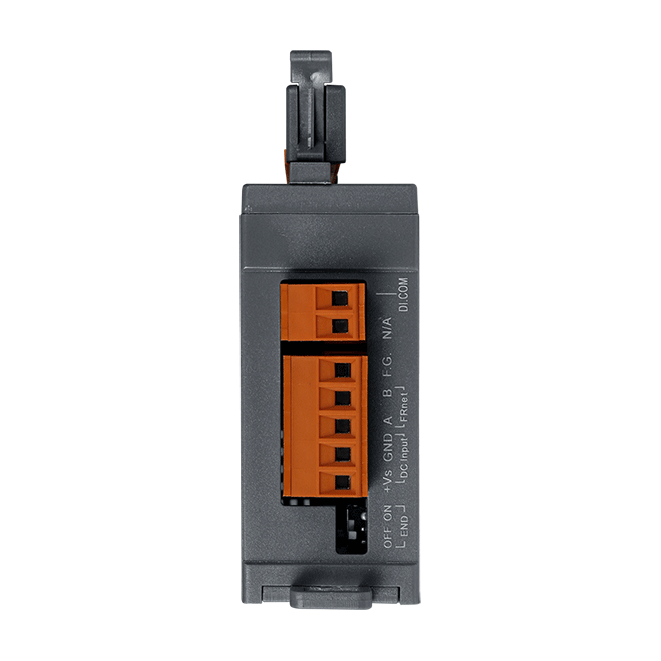

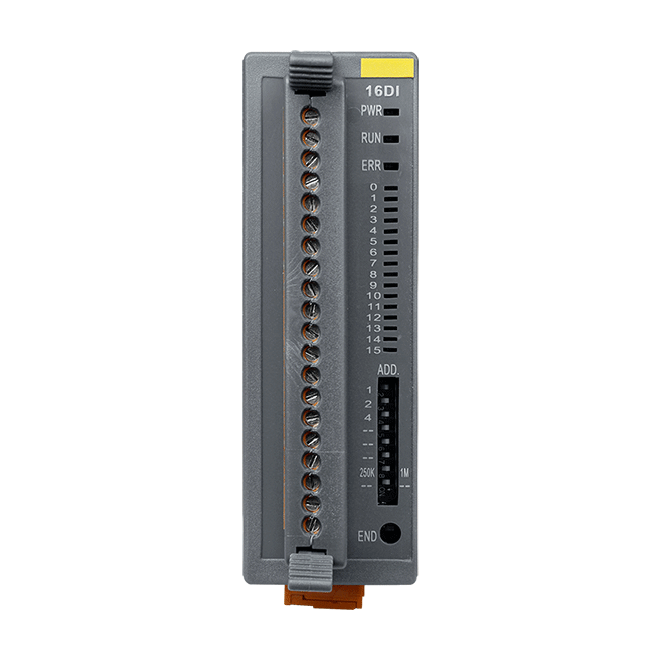

FR-2053iT
Introduction
The FR-2053iT has 16-channel isolated Sink/Source input. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2053iT; refer to literature related to I-8172W, FRB-200U.
Applications
Ordering Information
PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
---|---|---|---|
This combination include other products.
Similar Products
Isolation | |
---|---|
Intra-module Isolation | 3000 Vrms |
EMS Protection | |
---|---|
EFT (IEC 61000-4-4) | Yes |
ESD (IEC 61000-4-2) | Yes |
Surge (IEC 61000-4-5) | Yes |
LED Indicators | |
---|---|
Status | Power, Communication Run, Communication Error, Terminal Resistor, Digital Input |
Digital Input | |
---|---|
Channels | 16 |
Type | Wet Contact |
Sink/Source (NPN/PNP) | Sink/Source (NPN/PNP) |
ON Voltage Level | +19 ~ +30 VDC |
OFF Voltage Level | +11 VDC Max. |
Isolation | 3750 Vrms |
Input Impedance | 3.25 KΩ, 0.25 W |
FRnet | |
---|---|
Wire Cable | 2-wire cabling Belden 9841 (2P twisted-pair cable), When different cables are used, the transmission distance may change |
Transfer Speed | 250 kbps and 1Mbps (Default) DIP Switch Settings |
Transfer Distance | Max. 400 m for speed 250 kbps Max. 100 m for speed 1M (Default) |
Cyclic Time | 2.88 ms for speed 250 K 0.72 ms for speed 1M (Default) |
Power | |
---|---|
Reverse Polarity Protection | Yes |
Input Range | +10 ~ +30 VDC (Isolation) |
Consumption | 2.4 W Max. |
Mechanical | |
---|---|
Casing | Plastic |
Dimensions (mm) | 33 x 102 x 107 (W x L x H) |
Installation | DIN-Rail Mounting |
Environment | |
---|---|
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -30 ~ +85 °C |
Humidity | 10 ~ 90% RH, Non-condensing |
