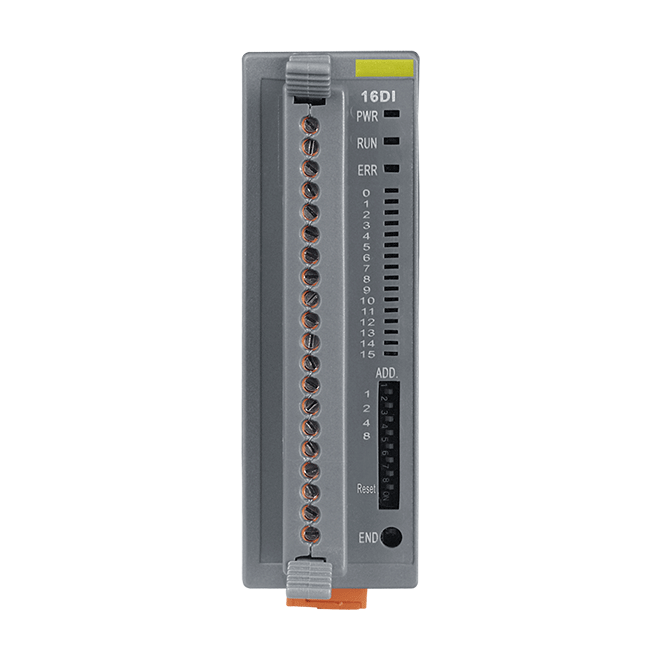

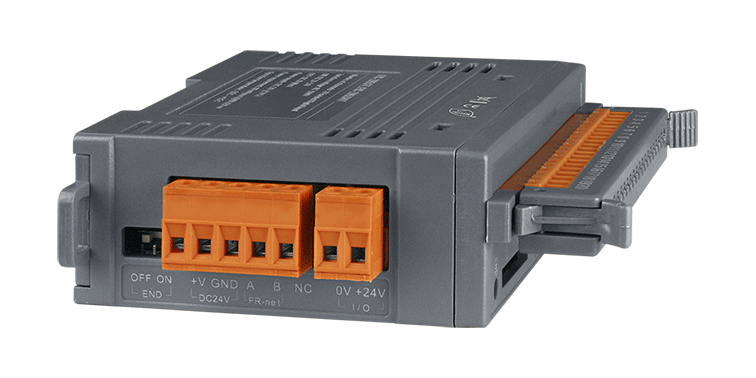

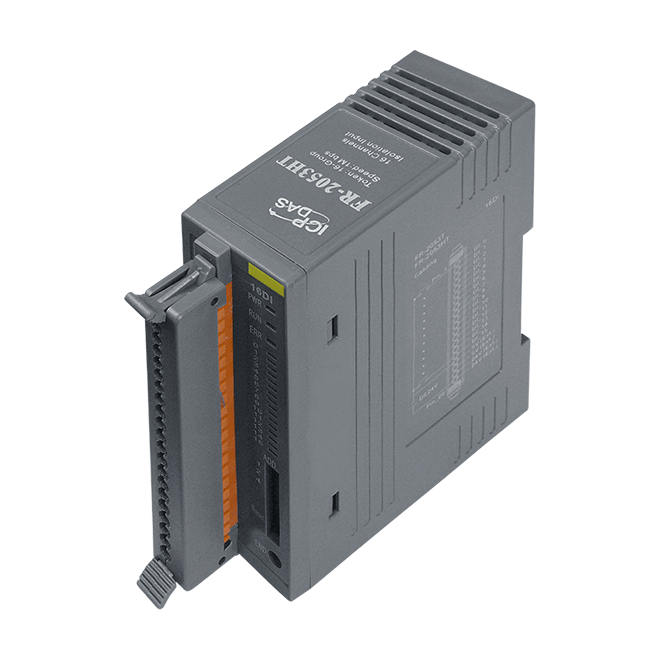

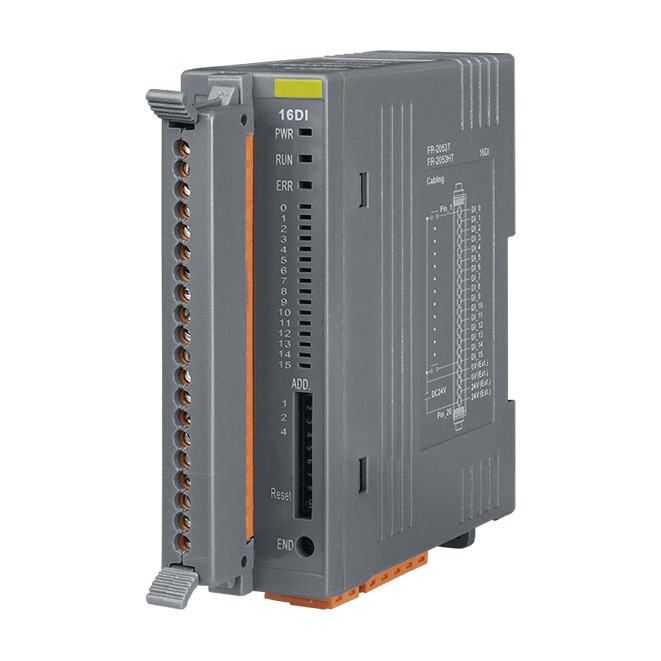

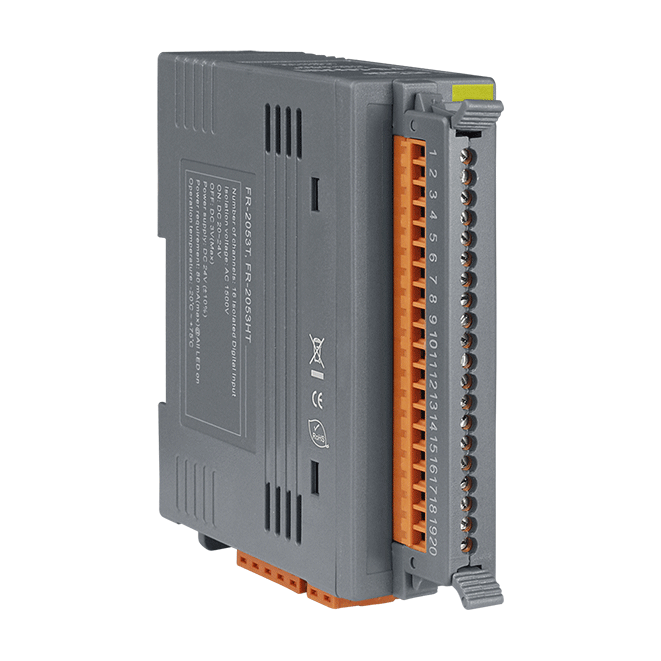

FRnet I/O Module with 16-channel Isolated DI (20~24VDC)
Features
• Built-in Wire-saving FRnet DI/DO control
• Simple synchronization mechanism
• No software overhead on protocol processing
• Supporting broadcasting (1:n data transmission)
• Duplicating output easily
• Fixed I/O scan-time and I/O synchronization
• DIN-Rail mountable
Introduction
The FR-2053T/2053HT has 16-channel isolated photo coupler input, while the FR-2057 has 16-channel isolated photo-coupler output. The default signal connector of FR-2057 is a 20-pin header. The "T" stands for screw terminal connector and the "S" stands for 3-pin shroud connector. Each 3-pin connector has one Vcc pin, one ground and one signal pin. According to different applications, the users can choose suitable modules. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2057; refer to literature related to I-8172W, FRB-100/200U.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
|---|---|
| Status | Power, Communication Run, Communication Error, Terminal Resistor, Digital Input |
| Digital Input | |
|---|---|
| Channels | 16 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| ON Voltage Level | +20 ~ 24 VDC |
| OFF Voltage Level | +3 VDC Max. |
| Isolation | 1500 Vrms |
| Input Impedance | 4.7 KΩ |
| FRnet | |
|---|---|
| Wire Cable | 2-wire cabling Belden 9841 (2P twisted-pair cable), When different cables are used, the transmission distance may change |
| Transfer Speed | 250 kbps for FR-2053T 1 Mbps for FR-2053HT |
| Transfer Distance | Max. 400 m |
| Cyclic Time | 2.88 ms |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 VDC ~ +24 VDC (Non-isolated) |
| Consumption | 2 W Max. |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 x 102 x 107 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
