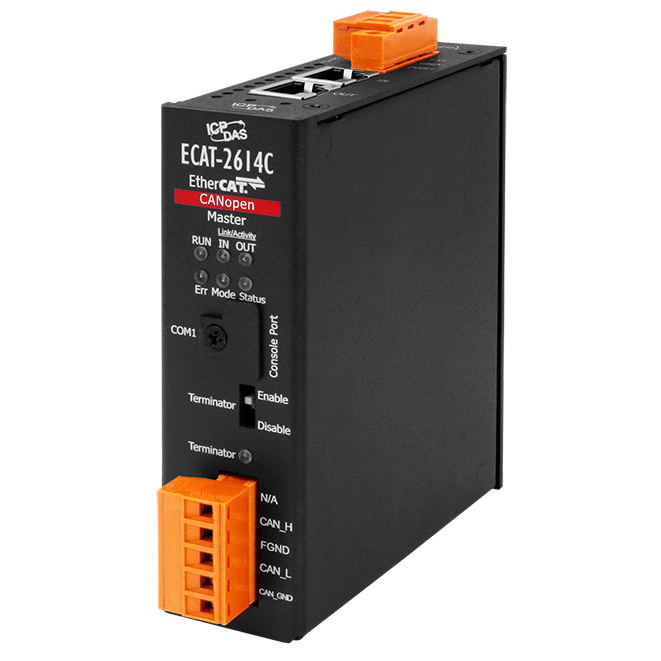

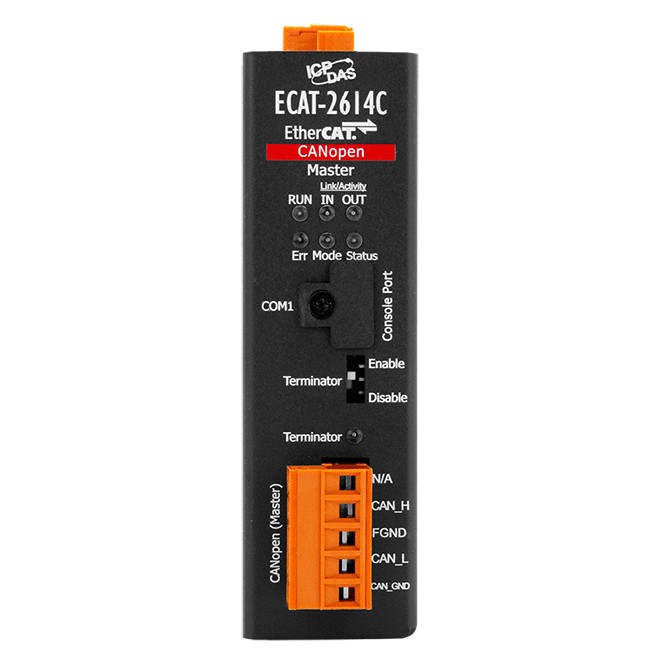

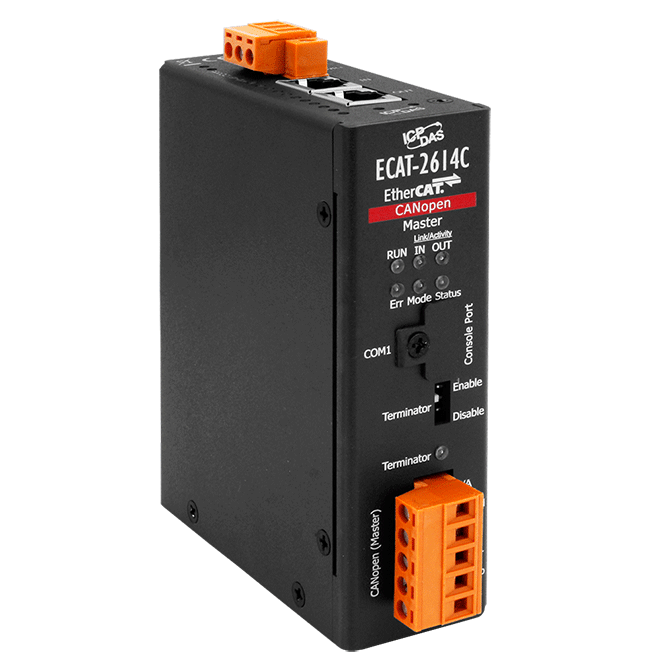

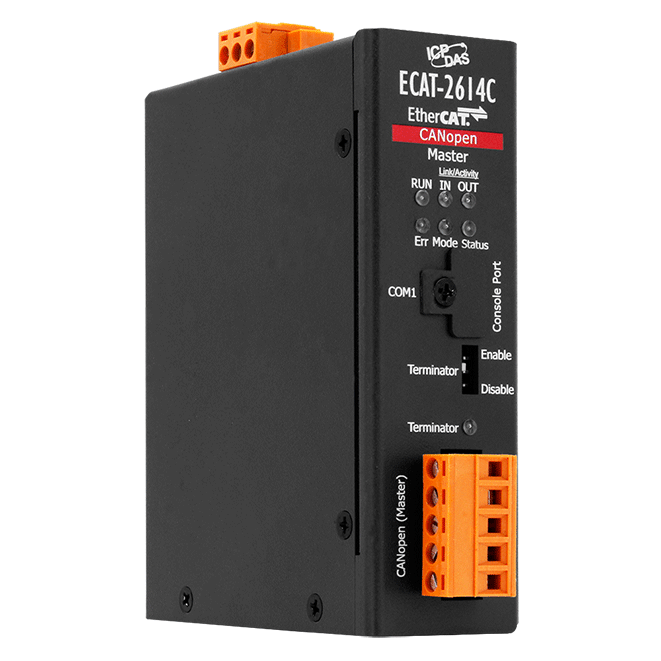

ECAT-2614C
EtherCAT SubDevice to CANOpen Gateway
Features
- Powerful MCU handles efficient network traffic
- 2 x RJ-45 EtherCAT connectors
- Integrate CANopen device to EtherCAT
- Allows system integrators to retro-fit older automation devices into modern EtherCAT communication structures
- Requires no hardware or software changes to be made to the connected device
- Compatible with all PLCs with EtherCAT support
- Performs complete serial protocol conversion, no PLC function blocks required
- Supports maximum 256 WORD Input and 256 WORD Output Data
- Supports CAN interface
- CANOpen Version: DS-301 v4.02
- Device Profile: DS-301 v2.1
- Supports maximum Baud Rate 1M bps
Introduction
Integrate your serial CAN based industrial devices and equipment to an EtherCAT control system without the need for any changes to the device. Just connect, configure and it's finished.
The ECAT-2614C Communicator is a proven and trusted protocol converter gateway that connects non-networked industrial devices and equipment to EtherCAT. The gateway performs an intelligent protocol conversion and presents the serial data to the Main Device PLC/Controller as easily processed I/O data.
* EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.
The ECAT-2614C Communicator is a proven and trusted protocol converter gateway that connects non-networked industrial devices and equipment to EtherCAT. The gateway performs an intelligent protocol conversion and presents the serial data to the Main Device PLC/Controller as easily processed I/O data.
* EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.

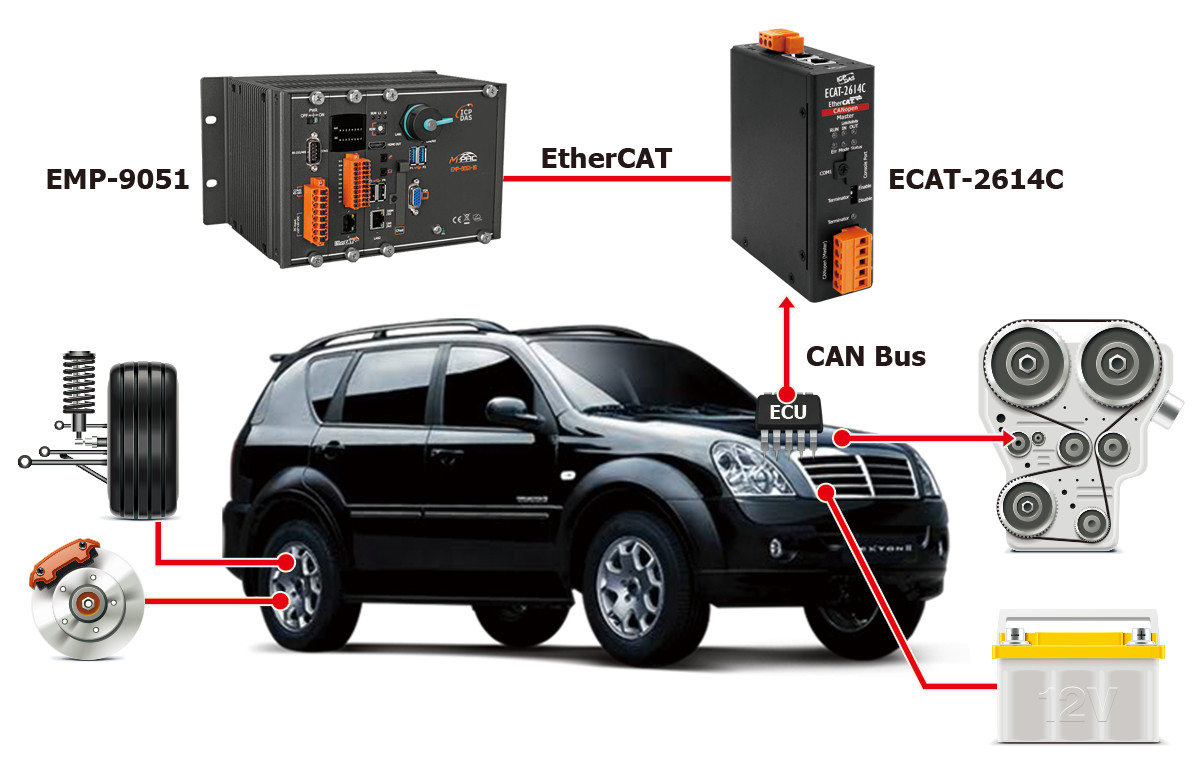

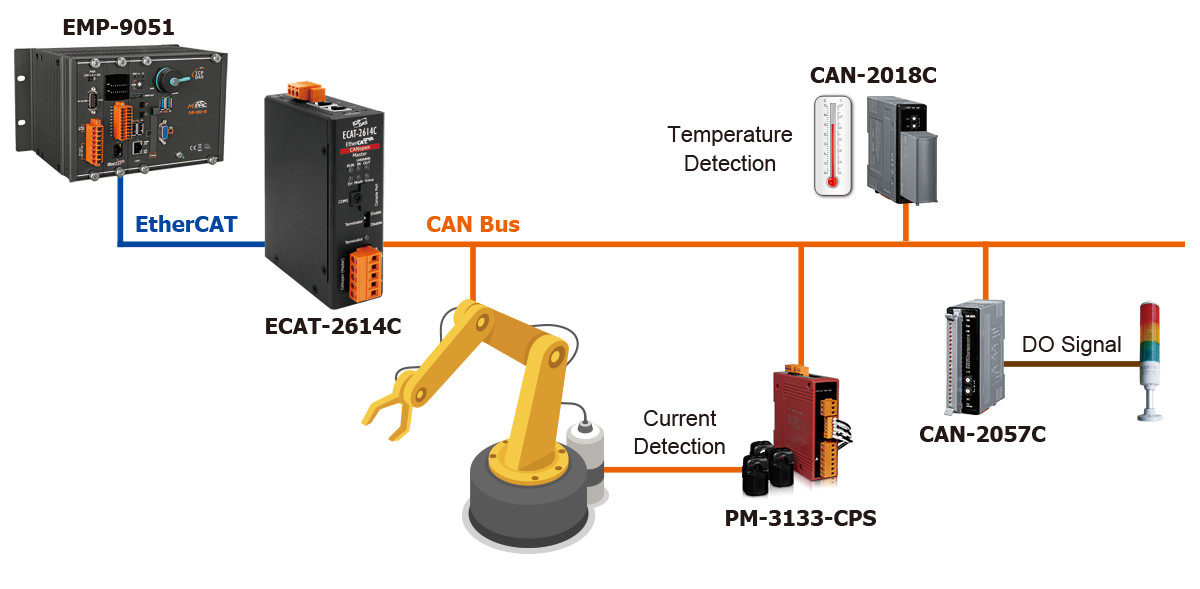

Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| COM Ports | |
|---|---|
| Ports | 1 |
| Protocol | CANopen (Master) |
| EtherCAT | |
|---|---|

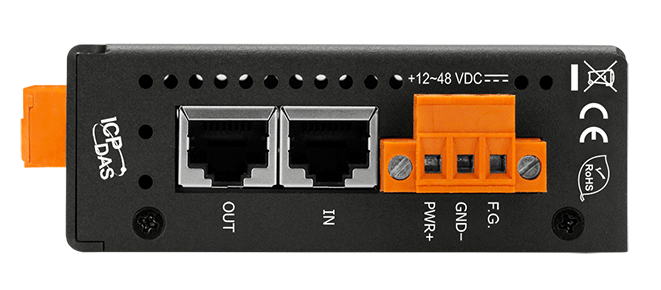

| Ports | RJ-45 x 1 Max. Distance between Stations: 100 m (100BASE-TX) Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e) |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +12 ~ +48 VDC |
| Consumption | 0.1 A @ 24 VDC |
| Powered from Terminal Block | 3-pin Removable Terminal Block (5.08 mm) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 110 x 90 x 33 (W x L x H) |

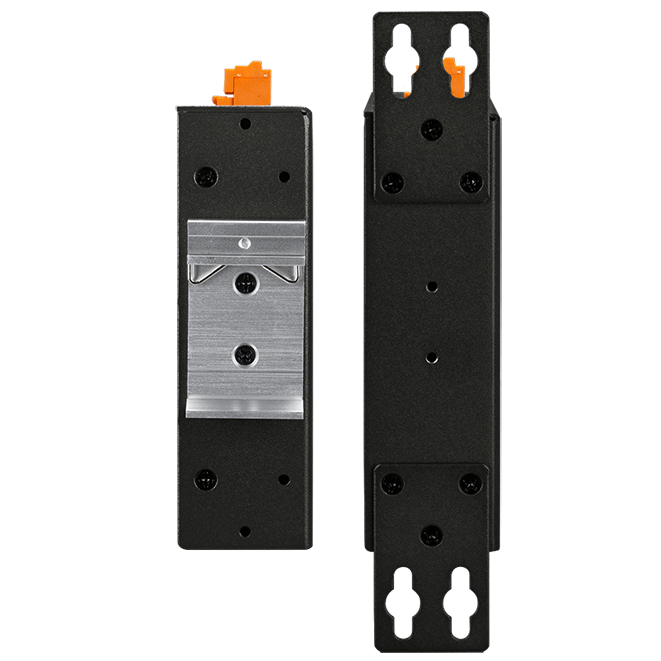

| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 to +75°C |
| Storage Temperature | -30 to +80°C |
| Humidity | 10 to 90% RH, Non-condensing |
