ECAT-2601
Modbus/OPC UA to EtherCAT Main Device Accelerator
Features
- Built-in EtherCAT MainDevice
- Supports Free Run mode
- Connects to SubDevice PDO without requiring an ESI file
- Supports third-party EtherCAT SubDevices
- Automatically connects to EtherCAT SubDevices within 10 seconds after power-on
- Supports user-defined SDO startup entries
- Minimum cycle time: 125us
- Supports Modbus Server
- Supports OPC UA Server
- Built-in Web Server (HTTP/HTTPS)
Introduction
The ECAT-2601 is a proven and reliable protocol converter gateway module that enables seamless connectivity between EtherCAT and Modbus/OPC UA networks. Acting as an EtherCAT MainDevice, the ECAT-2601 allows I/O data to be exchanged between the two networks efficiently. It provides a data exchange buffer that enables EtherCAT and Modbus/OPC UA systems to exchange data quickly and easily, supporting a wide range of industrial automation applications.
An OPC UA Server is integrated into the ECAT-2601 firmware, providing a secure, open and reliable mechanism for information exchange. OPC UA supports both horizontal communication between machines and vertical communication between machine and higher-level IT systems, such as SCADA systems, and Cloud platforms. Standard OPC UA clients can connect directly to the ECAT-2601 without any customization, reducing system integration complexity and application development costs.
An OPC UA Server is integrated into the ECAT-2601 firmware, providing a secure, open and reliable mechanism for information exchange. OPC UA supports both horizontal communication between machines and vertical communication between machine and higher-level IT systems, such as SCADA systems, and Cloud platforms. Standard OPC UA clients can connect directly to the ECAT-2601 without any customization, reducing system integration complexity and application development costs.

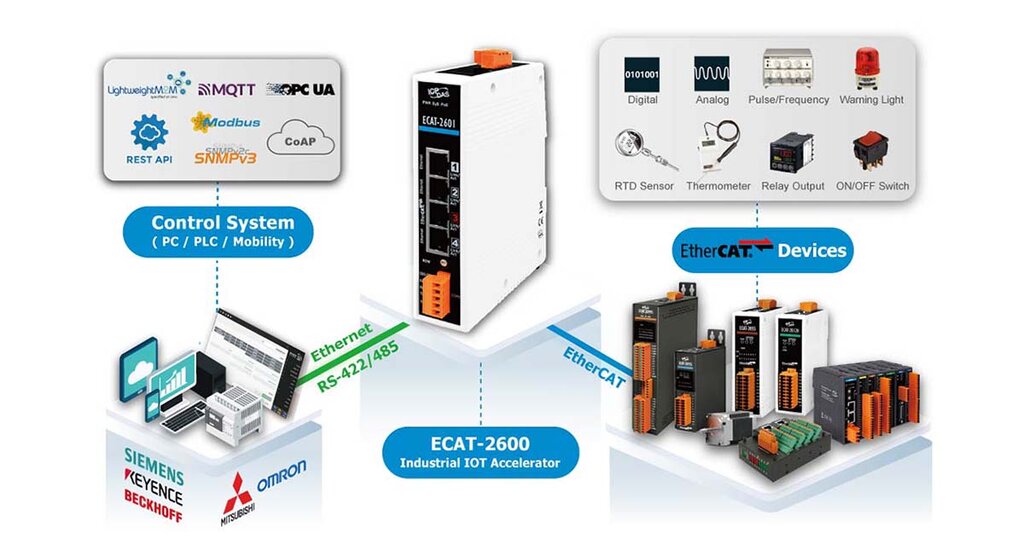

Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| Function | • Web Interface for Configuration |
| Ethernet | |
|---|---|
| Ports | RJ-45 x 3 2 x Distance between Stations: Max. 100 m (100BASE-TX) 1 x PoE (IEEE 802.3af, Class 2) |
| Protocol | Modbus TCP, Modbus TCP/TLS, Modbus UDP, OPC UA, SNTP, HTTP/HTTPS, IPv4, IPv6 |
| COM Ports | |
|---|---|
| Ports | 1 x 422/485 |
| Protocol | Modbus RTU (Slave) |
| EtherCAT | |
|---|---|
| Ports | RJ-45 x 1 Distance between Stations: Max. 100 m (100BASE-TX) Data Transfer Medium: Ethernet/EtherCAT Cable (Min. CAT 5e) |
| Cycle Time | 0.125 ~ 32ms |
| Distributed Clocks | Yes |
| Power | |
|---|---|
| Consumption | 0.22 A @ 24 VDC |
| Powered from PoE | IEEE 802.3af, Class 2 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 119 x 31 x 157 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
