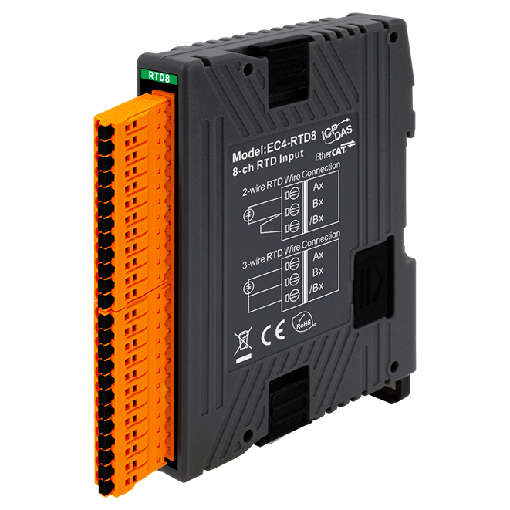

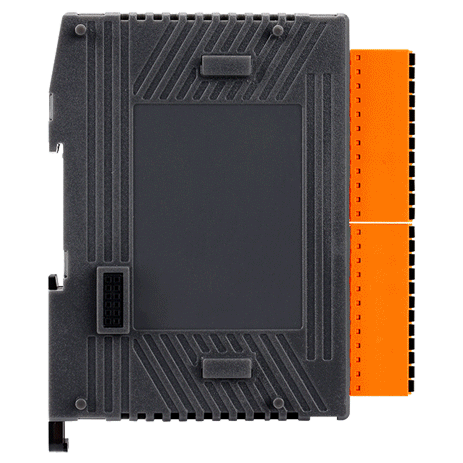

EC4-RTD8
EtherCAT Slim I/O Module with 8-ch High Speed RTD Inputs
Features
- On the fly processing: EtherCAT

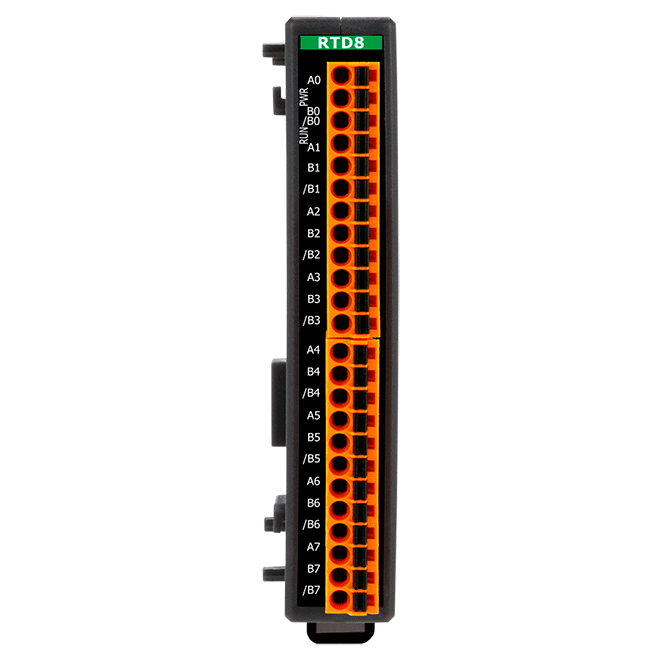

- Removable terminal block connector
- Built-In 8-channel RTD Intputs

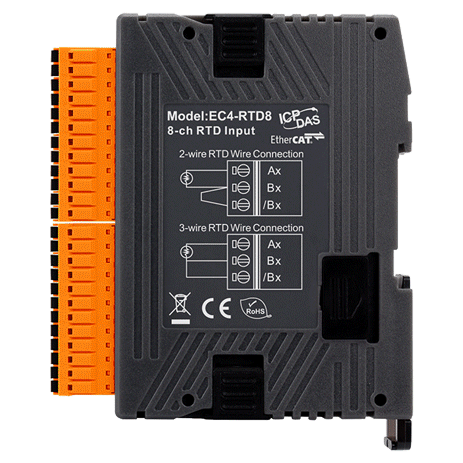

- 3-wire RTD Lead Resistance Compensation
- 90 Hz High-speed Sampling Rate for each Channel
- Open Wire Detection
- Individual Channel Configuration
Introduction
The EC4-RTD8 is an industrial I/O module built in 8 RTD intputs, based on the slim-type design. That provides 90Hz high-speed measurement and open wire detection for each channel. Each channel can be connected to different types of RTD sensors and supports 3-wire RTD lead wire compensation, ensuring accurate measurements regardless of wire length. It features the EtherCAT protocol, providing a system with higher scalability and fewer cables. Having passed consistency tests and verification, the EC4-RTD8 can be easily operated by compatible EtherCAT MainDevice, facilitating the implementation of various applications.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: 1 KV Class B; Power: 1 KV Class B |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Analog Input | |
|---|---|
| Channels | 8 |
| Type | Pt100, Ni120, Cu50, Cu100 |
| Resolution | 16-bit |
| Accuracy | Fast Mode：±0.1 % of FSR ( 25℃ ) Normal Mode：±0.05 % of FSR ( 25℃ ) |
| Sampling Rate | Fast Mode：90 Hz ( per channel ) Normal Mode：1.5Hz ( per channel ) |
| Input Impedance | > 1 MΩ |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| 3-wire RTD Lead Resistance Elimination | Yes |
| EtherCAT | |
|---|---|
| Ports | EtherCAT |
| Cycle Time | 100 us |
| Distributed Clocks | Yes |
| Power | |
|---|---|
| Input Range | +24 VDC |
| Consumption | 1 W (max.) |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 17.5 x 108 x 90 (W x L x D) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
