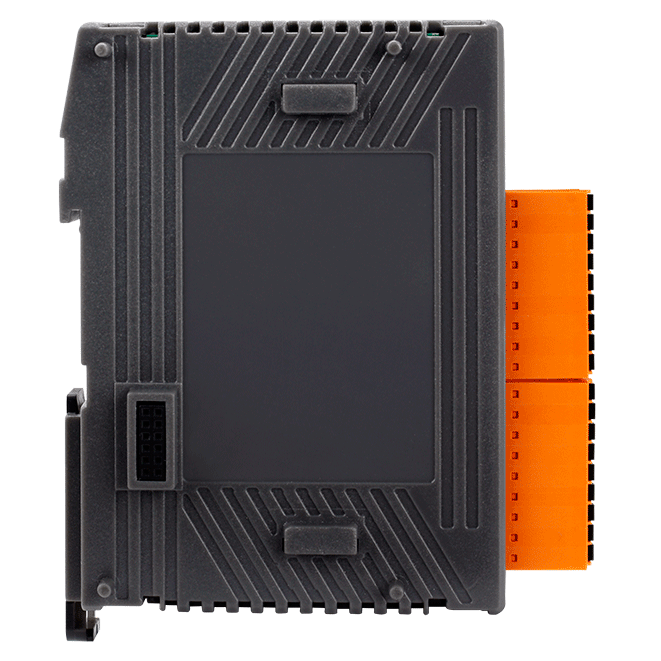

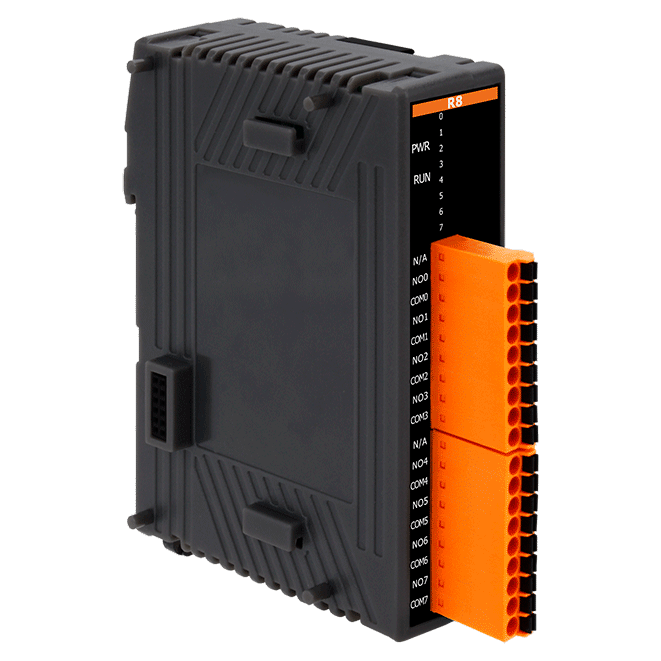

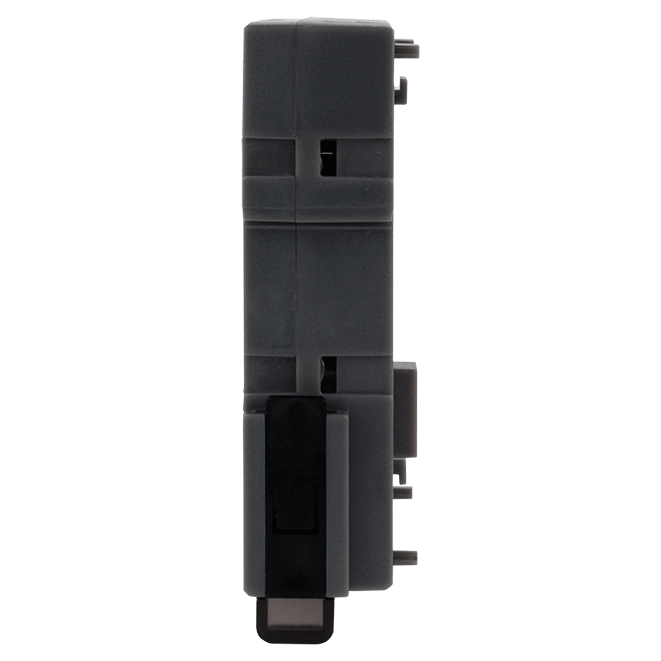

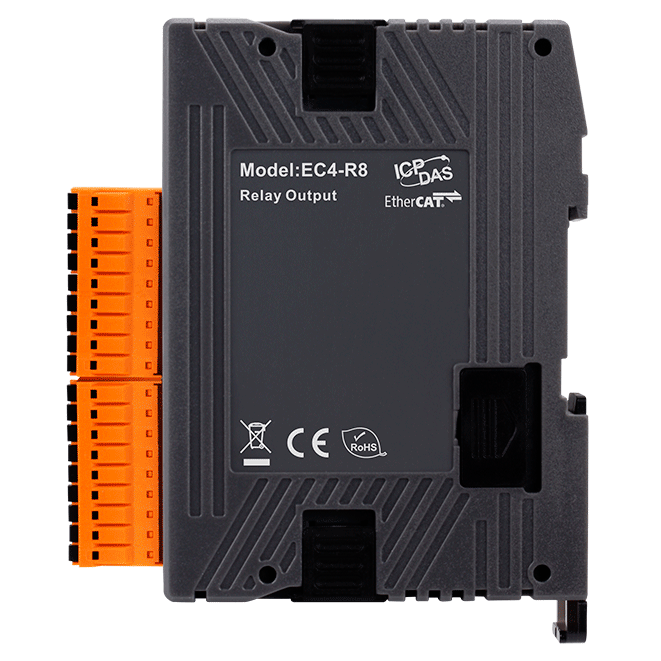

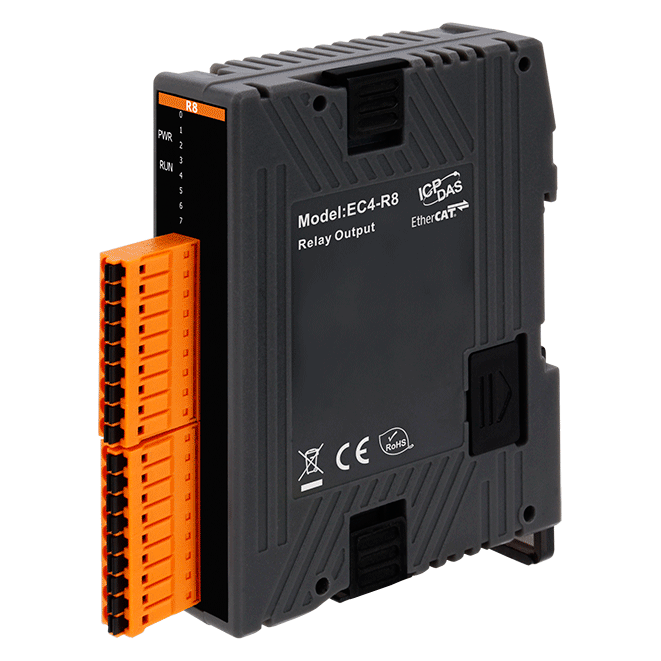

EC4-R8
EtherCAT SubDevice Slim Module with Isolated 8-ch Relay DO
Features
- Interface: EtherCAT
- Removable terminal-block connector

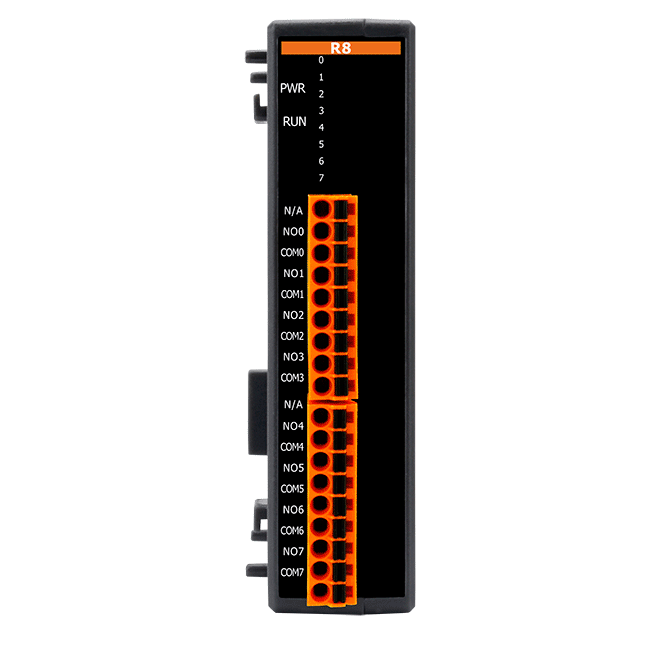

- LED indicators for the I/O status
- Built-In isolated 8-channel Relay outputs
- Configurable Power-on Value Settings
- Keep output values after state machine change (selectable)
Introduction
The EC4-R8 is an industrial I/O module designed with a slim-type form factor, featuring 8 isolated Relay output channels. It features the EtherCAT protocol, providing a system with higher scalability and fewer cables. Users can check the current output status through LED indicators on the enclosure. In addition, the module has passed the test and verification of the conformance testing tool. It is also compatible with various standard EtherCAT MainDevices to enable diversified applications.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±8KV (Air for Random Point) |
| Relay Output | |
|---|---|
| Channels | 8 |
| Type | Form A |
| Contact Rating | 3 A @ 250 VAC , 3 A @ 30 VDC |
| Operate Time | 10ms Max. |
| Release Time | 5ms Max. |
| Electrical Endurance | 1 x 10⌃5 ops |
| Mechanical Endurance | 2 x 10⌃7 ops |
| Isolation | 3000VDC |
| EtherCAT | |
|---|---|
| Cycle Time | 100 μs |
| Distributed Clocks | Yes |
| Power | |
|---|---|
| Input Range | +24 VDC |
| Consumption | 2.5 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 25 x 108 x 73 (W x L x D)(excluding terminals) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +70°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
