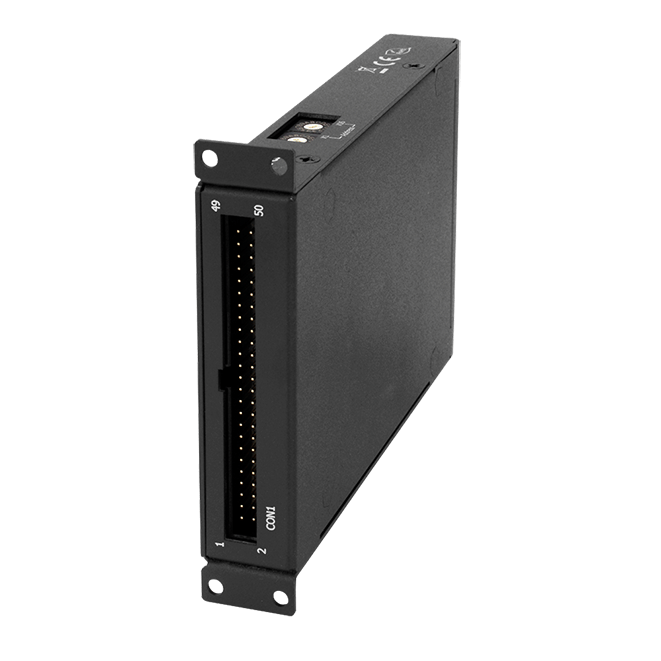

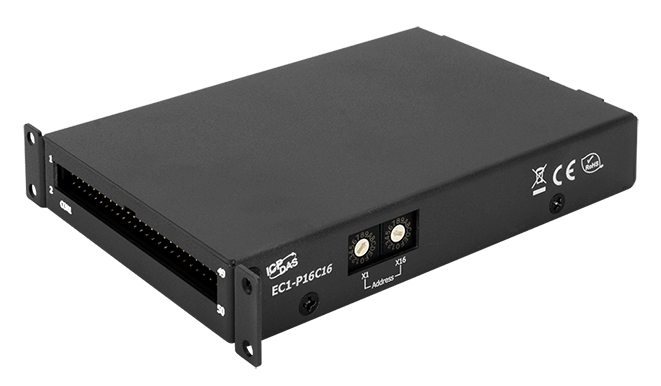

EC1-P16C16
EtherCAT Slave I/O Module with Isolated 16-channel Digital Inputs and 16-channel Digital Outputs
Features
- On the fly processing: EtherCAT
- Powerful MCU handles efficient network traffic
- Maximum distance between Stations can be up to 100 m (100BASE-TX)
- Support daisy chain and star connection
- EtherCAT conformance test tool verified

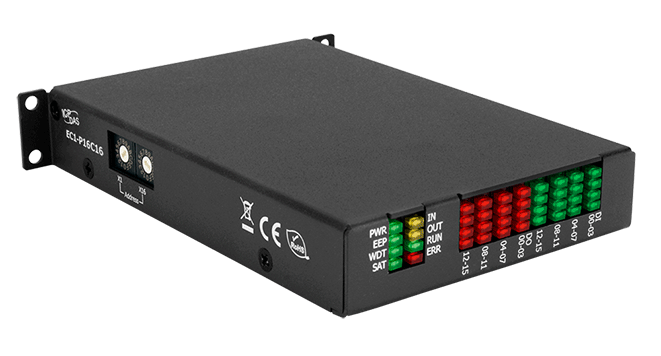

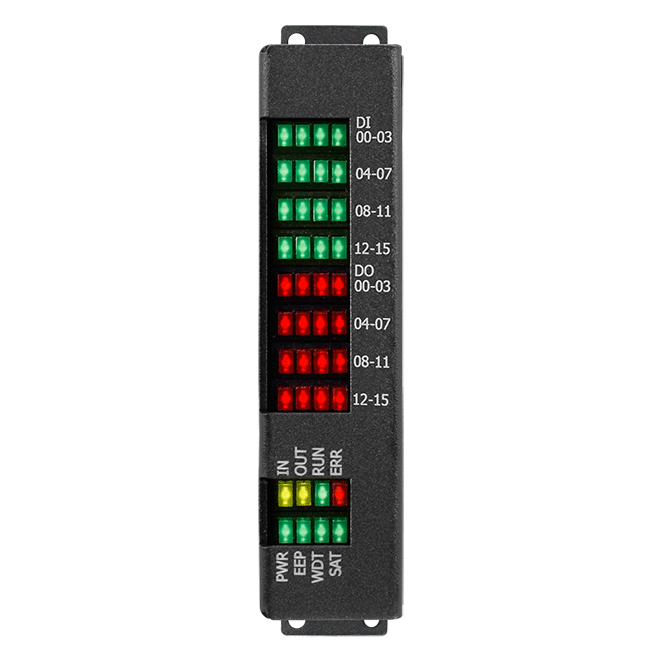

- LED indicators for the I/O status
- Built-In Inputs and Outputs: 16 DI and 16 DO
- Configurable Power-on Value Settings
- Keep output values after state machine change
- Low Pass Filter
- ESD Protection 4 KV Contact for each channel
Introduction
The EC1-P16C16 is an industrial slave I/O module built in 16 digital inputs and 16 digital outputs. It is equipped with the EtherCAT protocol and installed by daisy chain connection that provides a more scalable system with fewer wires. Users can obtain the input and output status not only via the process data but also from its LED indicators. The EC1-P16C16 has passed and verified by the conformance test tool, therefore eligible EtherCAT Master or configurator can manipulate it simply and implement your various applications easily.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: 1 KV Class B; Power: 1 KV Class B |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ± 1 kV Class A |
| Digital Input | |
|---|---|
| Channels | 16 |
| Type | Wet (Sink & Source )/ Dry (Source) |
| ON Voltage Level | Wet Contact: +10 V ~ +24 V Dry Contact: Close to GND |
| OFF Voltage Level | Wet Contact :+4 V Max. Dry Contact: Open |
| Isolation | 3750 VDC |
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | Open Collector (Sink),with internal flywheel diode |
| Load Voltage | 40 VDC Max. |
| Load Current | 500mA/Channel(Sink) |
| Isolation | 3000 VDC |
| EtherCAT | |
|---|---|
| Node ID | Up to 256 |
| Distance Between Stations | Max. 100m (100Base-Tx) |
| Data Transfer Medium | Ethernet/EtherCAT cable(min. CAT5), shielded |
| Cycle Time | 100 us |
| Distributed Clocks | Yes |
| Power | |
|---|---|
| Input Range | +24 VDC |
| Consumption | 3 W |
| Mechanical | |
|---|---|
| Casing | Metal with IP40 |
| Dimensions (mm) | 20 x 98 x 120 (W x L x D) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
