Power Supply, 85~270 VAC to 24 VDC/2.5 A, 5 V/0.5 A, 65 W, DIN-rail mounting
Features
- DC Outputs:
- +24 V/2.5 A
+5 V/0.5 A - Short circuit protection: latch off
- Over voltage protection: latch off
- Cooling: free air convection
Introduction
DP-660 is a 65 W,universal input switching mode power supply.
It is with 24V/5 V output options. DP-660 is intended for power device like motor or solenoid application.Build in +5 V 3T-regulator for DP-660 is for if there is a logical control circuit.

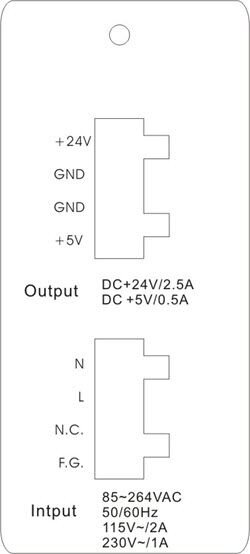

Pin Assignments
It is with 24V/5 V output options. DP-660 is intended for power device like motor or solenoid application.Build in +5 V 3T-regulator for DP-660 is for if there is a logical control circuit.
Pin Assignments
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Input | |
|---|---|
| Voltage Range | 85 VAC ~ 270 VAC |
| Frequency Range | 47 Hz ~ 63 Hz |
| Inrush Current (Typ.) | Cold start: less than 30A at 115 VAC less than 60A at 230 VAC |
| Output | |
|---|---|
| Hold Up Time (Typ.) | 16ms at rated load and 115 VAC |
| DC Voltage | +24VDC/2.5A +5 VDC/0.5A |
| Efficiency | higher than 70% at rated load and 115 VAC |
| Short Circuit Protection | latch off |
| Protection | |
|---|---|
| Over Voltage | hiccup mode |
| Mechanical | |
|---|---|
| Casing | Metal |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -40 °C ~ +85 °C |
