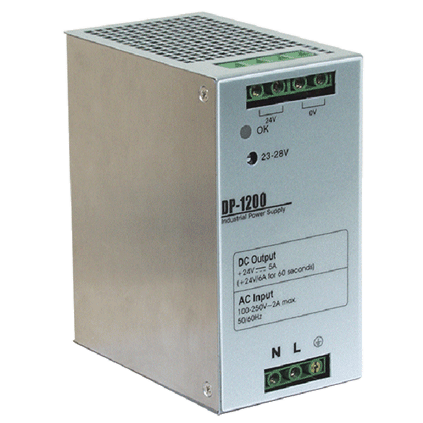

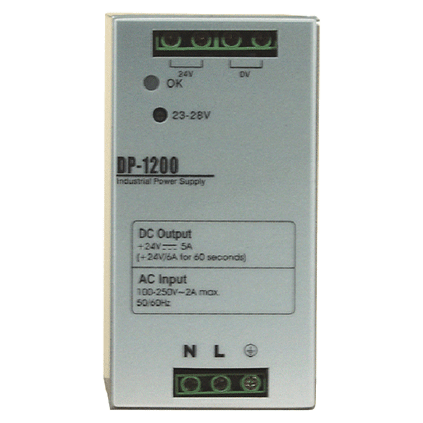

Power Supply, 85~264 VAC to 24 VDC/5 A, 120 W, DIN-rail mounting
Features
- With built in PFC
- 90% efficiency
- 60% power boost ability
- 23 V ~ 28 V adjustable range
Introduction
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Safety | |
|---|---|
| Standard | UL 1950, UL 508 CSA 22.2 No. 950-M90 EN 60 950 |
| EMC | |
|---|---|
| Standard | FCC: docket 20780 curve "B" EN55022 "B", EN61000-3-2 class D |
| Input | |
|---|---|
| Voltage Range | 85 VAC ~ 264 VAC |
| Frequency Range | 47 Hz ~ 63 Hz |
| Inrush Current (Typ.) | COLD START less than 15A at 115 VAC less than 30A at 230 VAC |
| Output | |
|---|---|
| Ripple & Noise (Max.) | <50mVp-p |
| Voltage Tolerance | ±2% |
| Linearity | ±0.1% |
| Load Regulation | ±0.5% |
| Hold Up Time (Typ.) | longer than 20 ms at 115 VAC |
| DC Voltage | 24 VDC |
| Rated Power | 120 W |
| Rated Current | 5 A |
| Efficiency | 90% typical at 230 VAC |
| Short Circuit Protection | auto recovery |
| Protection | |
|---|---|
| Over Voltage | latch off |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | (65 * 125 * 103)mm |
| Environment | |
|---|---|
| Operating Temperature | -10°C ~ +70°C (derating: typ. 3W/K > 60°C) |
| Storage Temperature | -25°C ~ +85°C |
