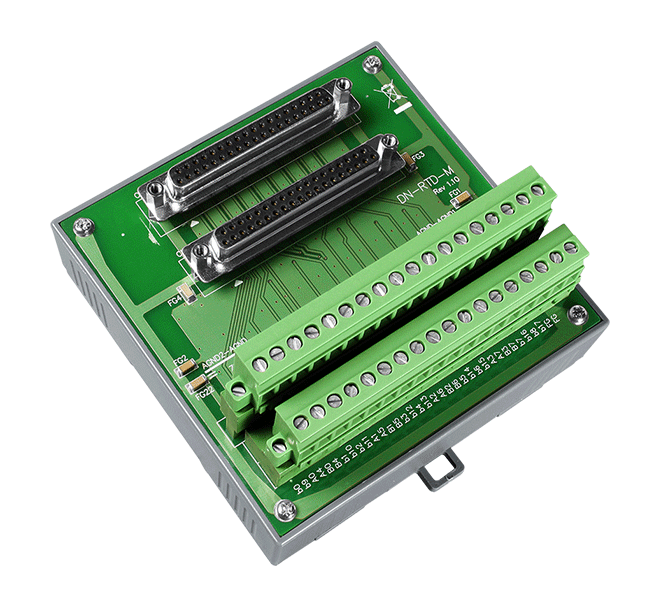

DN-RTD-M
Termination board for RTD module
Features
Introduction
The DN-RTD-M is a termination board for RTD input modules. The size of this termination board is also small and same as other mini termination boards for users’ installation.

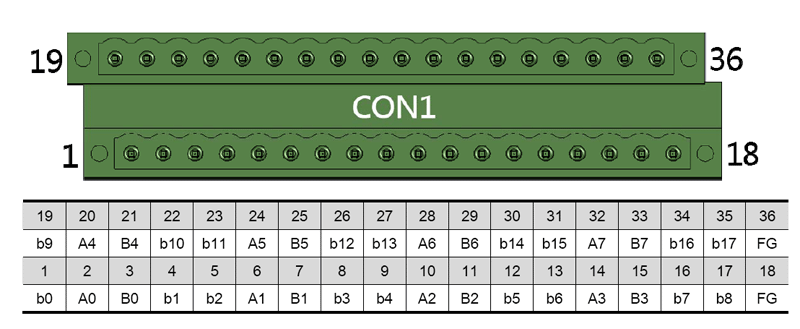

PIN Assignments

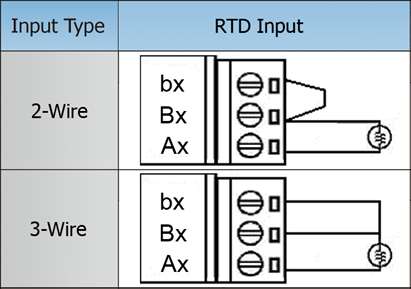

Wiring
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Digital Output | |
|---|---|
| Channels | 8 |
| Mechanical | |
|---|---|
| Dimensions (mm) | 112 x 117 x 29 |
| Installation | DIN-Rail & wall mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ 75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
