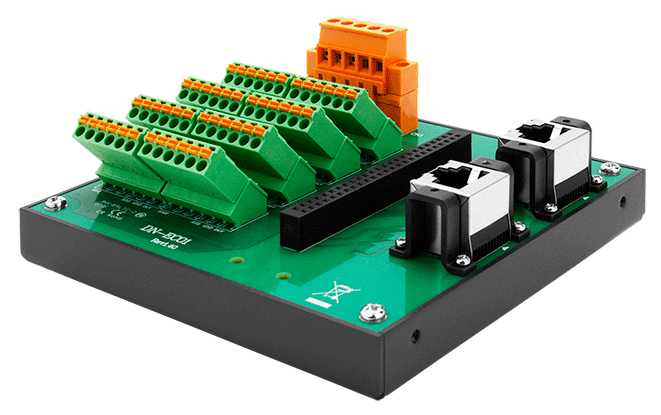

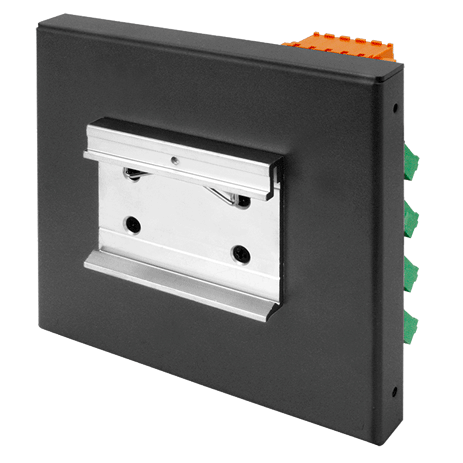

DN-EC01
The development board of EC1 Series
Features
- On the fly processing : EtherCAT
- 2 x RJ-45 bus interface
- Maximum distance between stations can be up to 100m (100BASE-TX)
- Support daisy chain connectio
- Removable terminal block connector
Introduction

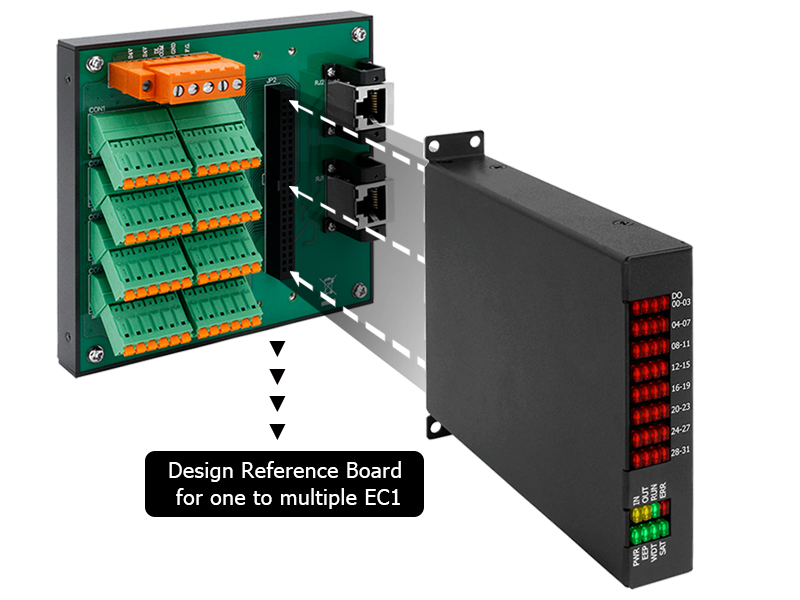

DN-EC01 is the development board for EC1 Series. The development board introduces the use of EC1 series modules. No need to develop a separate signal distribution board first. The development board can be used for verification and direct testing of EC1 series modules. This development board distributes signals and power to each corresponding connector, let EC1 series I/O modules and qualified EtherCAT Master make operation simple and easily implement your various applications.
Customers can design their own development version according to this model. In addition, if you want to design multiple sets of slots, please extend the TX and RX signals downwards.
Customers can design their own development version according to this model. In addition, if you want to design multiple sets of slots, please extend the TX and RX signals downwards.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EtherCAT | |
|---|---|
| Ports | EtherCAT, 2 X RJ45 |
| Mechanical | |
|---|---|
| Dimensions (mm) | 111 x 115 x 15 (W x L x D) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
