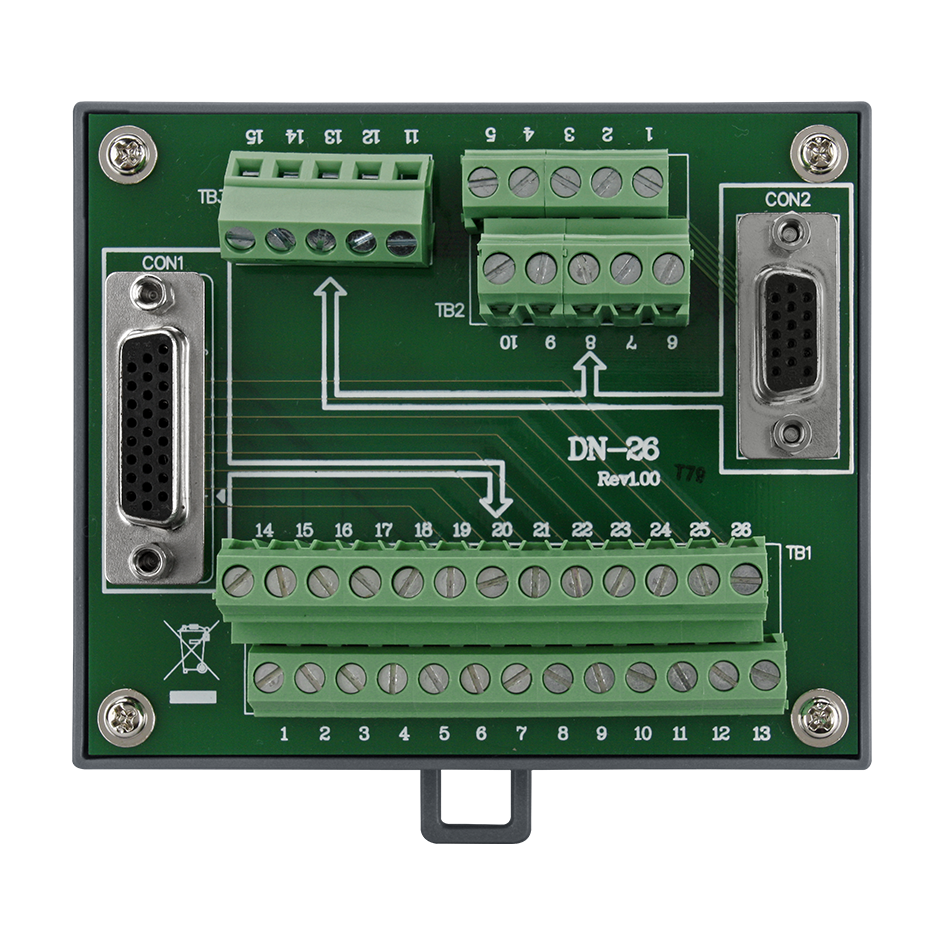

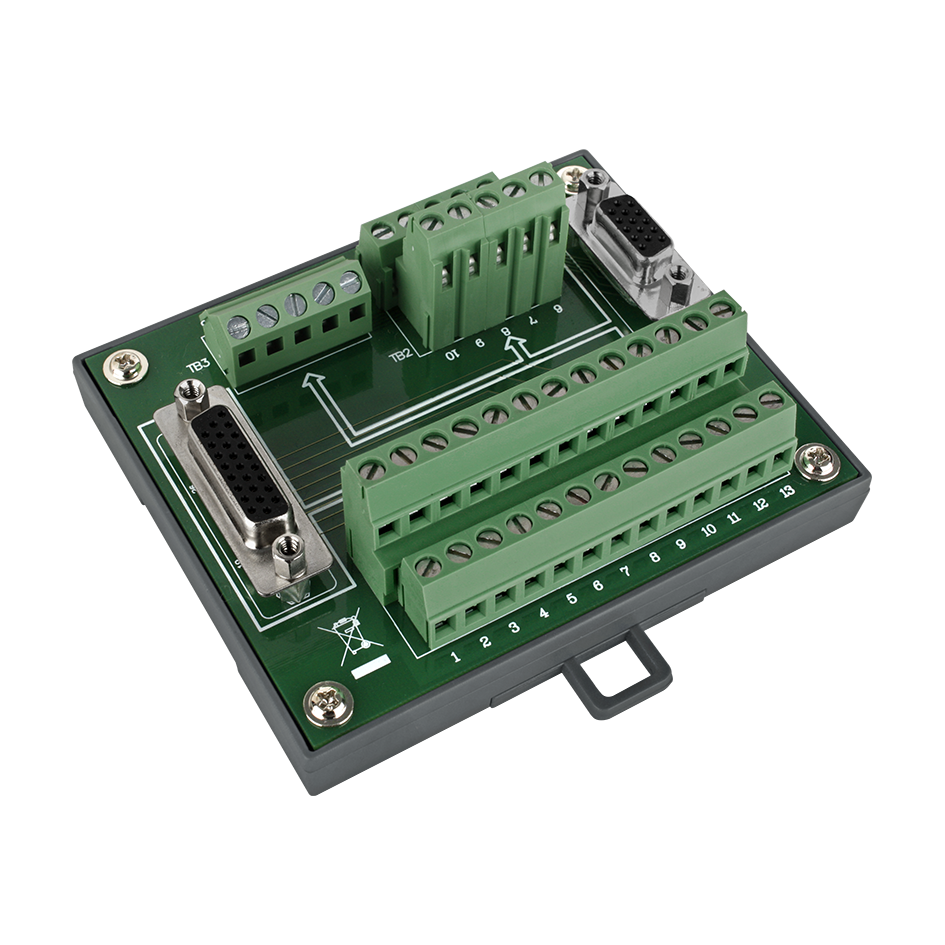

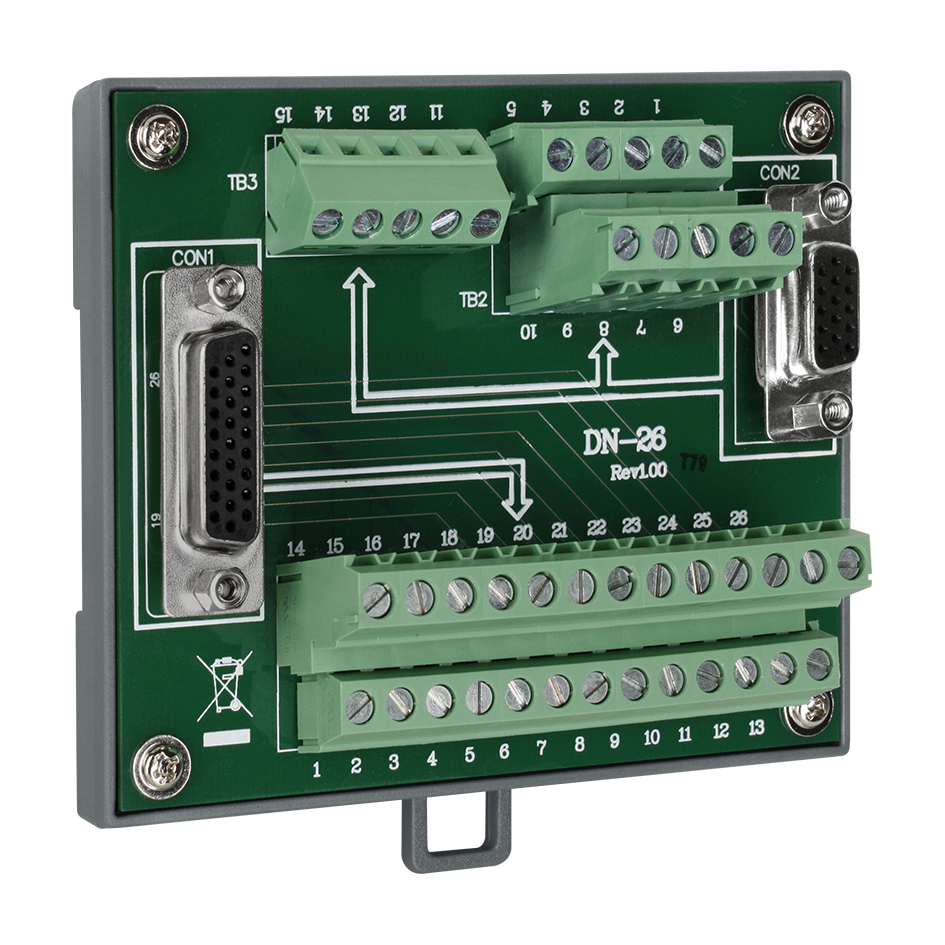

DN-26
Female HD D-Sub26 and HD D-Sub15 to Screw Terminal Board with DIN-rail Mounting
Features
- I/O Connector Block with Din-Rail Mounting
- Female HD D-Sub 26 and HD D-Sub 15 Connector
- Pin to Pin Screw Terminal for I/O Connected
- Screw Terminals for Easy Field Wiring
- Dimension: 103 mm x 86 mm
Introduction
The DN-26 is an I/O terminal board with DIN-rail mounting provides pin to pin screw terminal I/O connection of HD D-Sub 26 and HD D-Sub 15 connector for easy field wiring.
Applications

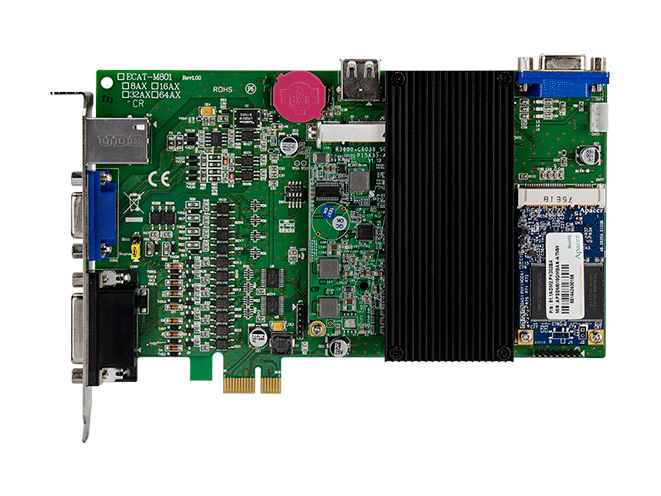

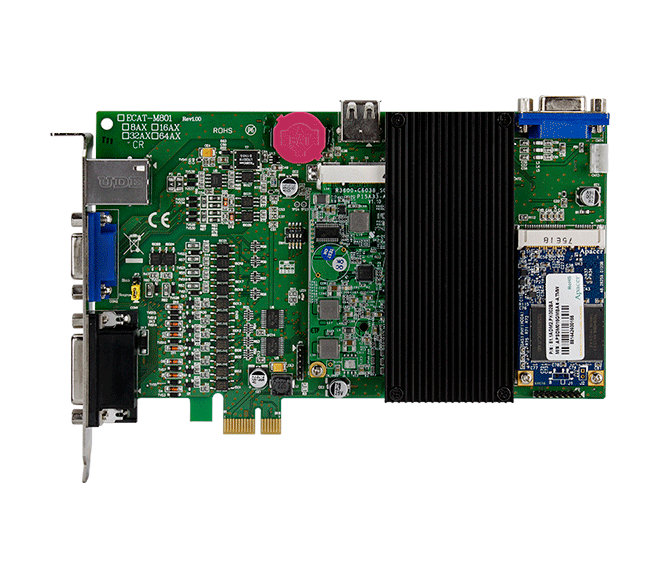

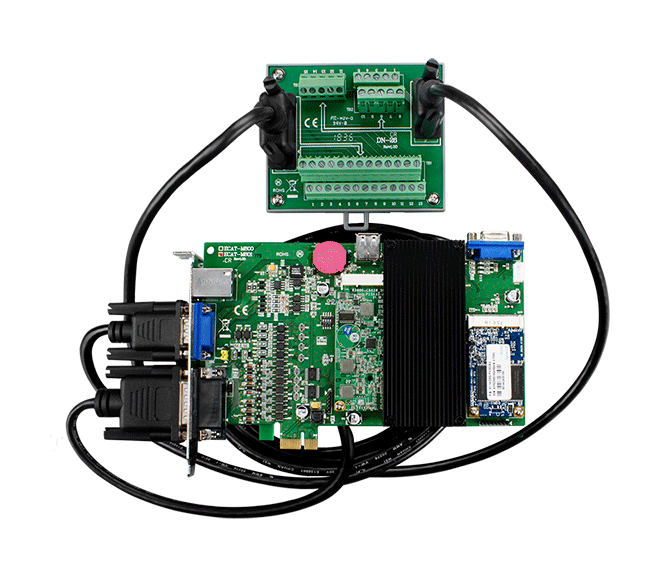

Terminal board for ECAT-M801
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Mechanical | |
|---|---|
| Dimensions (mm) | 103 mm X 86 mm |
| Environment | |
|---|---|
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
