DN-20M
Manual-Pulse-Generator (MPG) and FRnet Input Board for PISO-PS600/VS600/PMDK
Features
- MPG and FRnet Connector Block with Din-Rail Mounting
- 20-pin SCSI-II Connector
- Pin to Pin Screw Terminal for Manual Pulsar Generator Connected
- Screw Terminals for Easy Field Wiring
- RJ-45 for FRnet Connector
Introduction

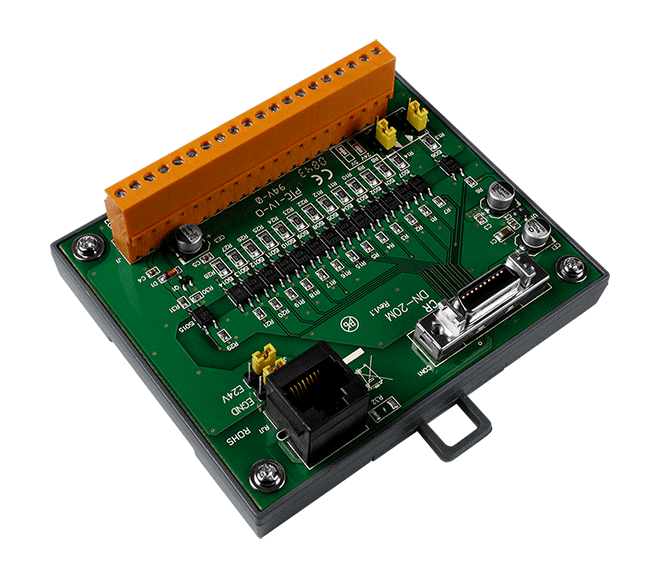

The DN-20M is a daughter-board that is designed for ICP DAS’s 6-axis motion controllers, such as PISO-PS600, PISO-VS600, I-8196F, I-9196F and PMDK. It is designed to be easily connected with a full function manual pulse generator. It is not only a screw terminal board for easy connection of signals; it also provides on-board isolating circuitry to protect the controllers. A RJ-45 connector is also adopted for FRnet connection.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.1 A |
| Consumption | 2.4 W (24 VDC) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 103 mm X 86 mm |
| Environment | |
|---|---|
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
