DL-302

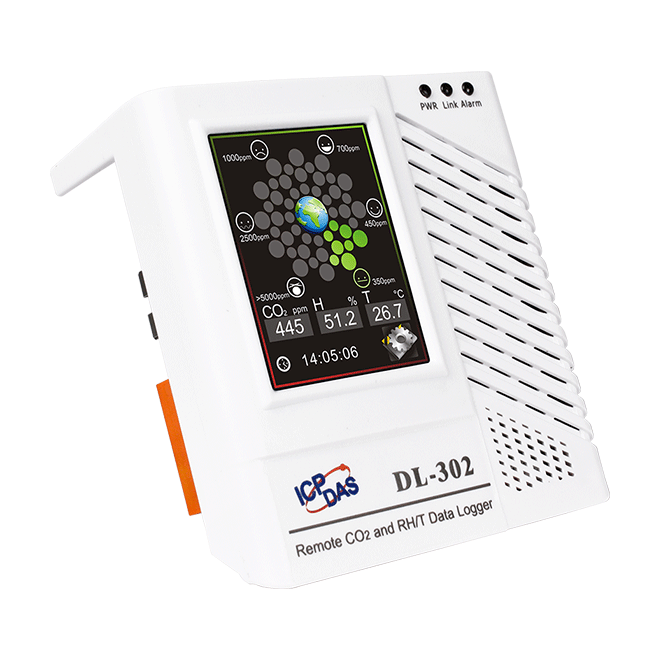

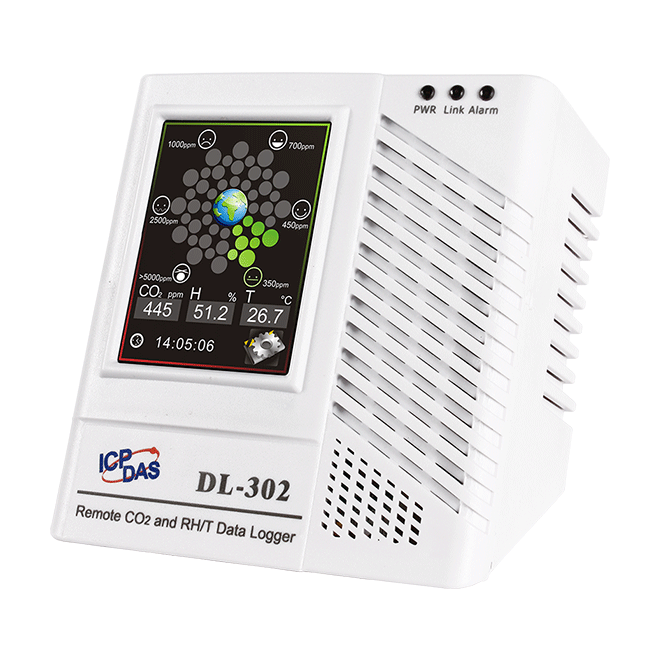

Remote CO2/Temperature/Humidity/Dew Point Data Logger with Safety Alarm (RS-485, Ethernet, PoE)
DL-302
DL-302
DL-302
DL-302
DL-302
DL-302
DL-302
DL-302
DL-302
DL-302
DL-302
DL-302

Features

  • Simultaneous Display for CO2, Temperature, Humidity and Dew Point
  • Measurement Range
    • CO2: 0 ~ 9999 ppm
  • Non-dispersive Infrared (NDIR) CO2 Sensor
  • 2.8" LCD Touch Screen
  • Able to store up to 450,000 records with date and time stamps
  • Touch-screen and Web-based Configuration Interfaces
  • Free Software Utility, iOS App and Android App Included
  • Able to Display Multilingual Messages
  • Supports the DCON, Modbus RTU, Modbus TCP and MQTT Protocols
  • Includes RS-485/Ethernet/PoE Communication Interfaces
  • Relay Output for Alarm Device or IAQ Device Control
  • Desktop, DIN-Rail or Wall Mounting
CE UKCA FCC RoHS WEEE

Introduction

The DL-300 series of Data Logger devices can be used to record CO, CO2, Temperature, Humidity and Dew Point information, including date and time stamps, and are able to store up to 450,000 downloadable records. Real-time data can be accessed from the DL-300 Data Logger from anywhere and at any time using the free Windows software, the iOS App or the Android App. Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine-to-machine (M2M)/)IoT (Internet of Things) connectivity protocol – MQTT. The DL-300 Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system.



► Large 2.8" LCD Touch Screen, with clear Color Chart to indicate the CO/CO2 Level




►Supports the MQTT Protocol for IoT Applications





►Free and Power DL300 Utility Software

The DL300 Utility can be used to configure the modules, monitor real-time data, group DL-300 modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV fi le that can then be imported into any industry-standard software or spread sheet for analysis.





►Display Messages in Multiple Languages

The display-message-on-screen function supports multiple language character sets based on UTF-8 encoding. Users can remotely display either pre-configured messages or dynamic messages to prompt an operator with a daily schedule or IAQ device control instructions.






►Multi-platform Remote Access Software

Real-time data from the DL-300 Data Logger can be accessed from anywhere and at any time using the DL300 Utility, the iOS or Android App, or via a regular web browser, as long as they are connected to the same local network as the Data Logger.


Applications

  • Transportation of Food or Pharmaceuticals
  • Food and Beverage Industry (HACCP)
  • Blood Stations and Pharmacies
  • Building and Energy Management
  • Warehouse Management
  • Museums, Archives and Galleries

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES DL-302     CR DESCRIPTIONRemote CO2/Temperature/Humidity/Dew Point Data Logger with Safety Alarm (RS-485, Ethernet, PoE) (RoHS)
This combination include other products.
OK

Similar Products

Software
Built-in Web Server Yes
CPU Module
Real Time Clock Yes
Display
Backlight Life 20,000 hours
Brightness 160 cd/m2
Touch Panel Yes
LCD Information Displayed 2.8 TFT (Resolution 240 x 320 x 16), Defective Pixels <= 3
System
Real Time Clock Yes
Data Logger Yes, up to 450,000 records
Temperature Measurement
Range -10 ~ +50°C
Resolution 0.1°C
Accuracy ±0.6°C
Humidity Measurement
Range 0 ~ 100% RH
Resolution 0.1% RH
Accuracy ±5% RH
Dew Point
Range Calculated using temperature and relative humidity
Resolution 0.1°C
CO2 Measurement
Sensor Type Non-dispersive infrared (NDIR) Sensor
Range 0 ~ 9999 ppm
Resolution 1 ppm
Accuracy ±30 ppm ±3% of measured value
Response Time 20 seconds
Warm-up Time 60 seconds
Relay Output
Type Form A × 1, SPST
Contact Rating 30 VDC @ 16 A or 250 VAC @ 16 A
Ethernet
Ports 1x 10/100 Base-TX (Auto-negotiating, Auto-MDI/MDIX, LED indicators)
PoE Yes
Protocol Modbus/TCP, MQTT
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Protocol DCON, Modbus/RTU
Power
Consumption PoE: 2.65 W (Max.)
Non-PoE: 2.14 W (Max.)
Powered from PoE IEEE 802.3af, Class 1 (48 V)
Powered from Terminal Block +12 ~+48 VDC
Mechanical
Dimensions (mm) 106 x 114 x 56 (W x L x H)
Installation Desktop, DIN-Rail or Wall Mounting
Environment
Operating Temperature 0 ~ +50°C
Storage Temperature -30 ~ +75°C
Humidity 10 ~ 90% RH, Non-condensing
