DL-1027
PM1/2.5/10/HCHO/Temperature/Humidity/Dew Point Data Logger Module
Features
- Able to record PM1/2.5/10, HCHO, Temperature, Humidity, and Dew Point Measurements
- Electrochemical Sensor
- Up to 180,000 records with date and time stamps
- Web-based Configuration Interface
- Simple and Powerful Software Utility, iOS APP and Android App Included
- Supports the DCON, Modbus RTU/TCP, and MQTT Protocols
- Includes RS-485/Ethernet/PoE Communication Interfaces
- Relay Output for Audible/Visual Alarm or IAQ Device Control
- Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
- IP 43 Protection Approval
Introduction

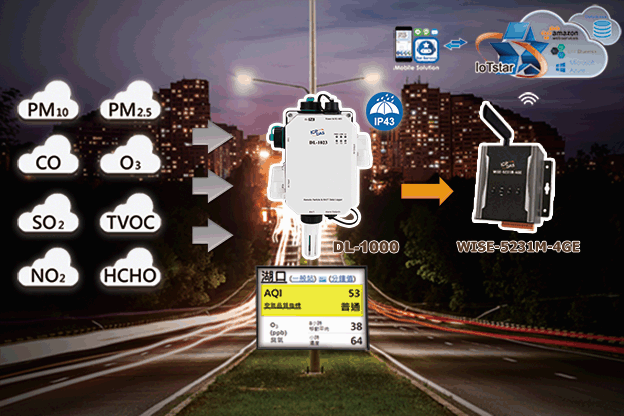

► Intelligent Street Lighting in Smart City
DL-1000 series products, with standard industrial communication protocol Modbus RTU/TCP, can integrate with smart city to achieve outdoor air quality monitoring such as O2, CO, CO2, SO2, TVOC, HCHO, and Particle Matter 1/2.5/10. Since these aerosol could accumulate around the sensor and would cause error record after using for a period of time, DL-1000 supports replaceable dust filter patches to easily change the patches inside the filter hood rather than uninstall the device.
► Outdoor Mobile Air Quality Detection Application
In developed countries, the air quality detection, statistics and evaluation is in urgent need for improvement. In a vast area, it can only rely on the vehicle to move to record status of air quality in the area, and to extract the off-line data and send it back. ICP DAS's DL-1000 series can integrate with our 3G/ 4G controllers to transmit data back to the control center wirelessly.

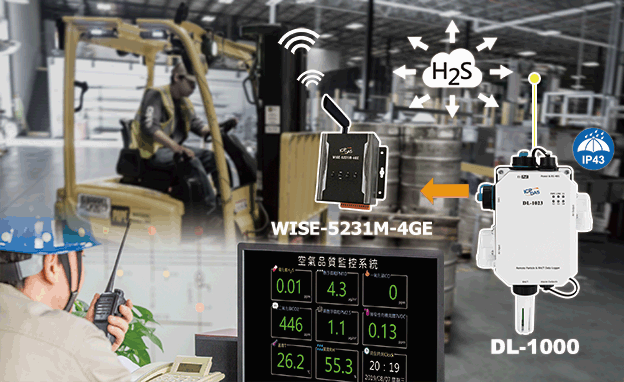

► Factory Gas Detection Application
In some factories, H2S is one of the harmful gases. Since the colorless and odorless are two characteristics quite hard to find or feel, sometimes the workers inside the factory get injured inevitably. Joint liability from the injury brings the company massive fines.
DL-1026 H2S detector module can be put on the spot. It is equipped with standard industrial protocols and with high flexibility to integrate information from devices and transmit it back to the control center. When the concentration of gas is too high, DL-1026 can also send alarm signals to inform relative personnel to evacuate people there.
DL-1026 H2S detector module can be put on the spot. It is equipped with standard industrial protocols and with high flexibility to integrate information from devices and transmit it back to the control center. When the concentration of gas is too high, DL-1026 can also send alarm signals to inform relative personnel to evacuate people there.
Applications
Intelligent Street Lighting in Smart City
In smart city applications, smart street lights integrate various communication technologies and are no longer illumination only. The high-density construction of streetlights have become one of the most important sources of government collecting road information in recent years. DL-1000 series products, with standard industrial communication protocol Modbus RTU/TCP, can integrate with smart streetlights to achieve outdoor air quality monitoring such as: O3, CO, CO2, SO2, NO2, TVOC, HCHO, and PM1/2.5/10. Due to these aerosols could accumulate around the sensor and would cause error record after using for a period, DL-1000 support replaceable dust filter patch to easily change the patches inside the filter hood rather than uninstall the device.
Outdoor Mobile Air Quality Detection Application
In developed countries, the Air Quality detection, statistics and evaluation is the most for improvement. In a vast area, it can only rely on the vehicle moving to record status of air quality, and to offline extract these and send back sorting out.
ICP DAS DL-1000 series can integrate with our 3G/ 4G controllers to transmit data back to control center wirelessly.
ICP DAS DL-1000 series can integrate with our 3G/ 4G controllers to transmit data back to control center wirelessly.
Factory Gas Detection Application
In some factories, H2S is one of the harmful gases. Due to the colorless and odorless are two characteristics quite hard to find or feel it, sometimes the workers inside the factory get injured inevitably. Joint liability from the injury brings the company massive fines.
DL-1026 H2S detector module can put in the spot. It equip with standard industrial protocols and with high flexible to integrate information from devices and transmit back to control center. When the concentration of gas is too high, DL-1026 can also send alarm signals to inform relative person to evacuate people there.
DL-1026 H2S detector module can put in the spot. It equip with standard industrial protocols and with high flexible to integrate information from devices and transmit back to control center. When the concentration of gas is too high, DL-1026 can also send alarm signals to inform relative person to evacuate people there.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| LED Indicators | |
|---|---|
| Status | PWR: Green for normal operation Link: Green for the Ethernet-linked S1 ~ S4: Red for an alarm condition |
| System | |
|---|---|
| Security | IP filter (whitelist) and Password (web) |
| Alarm | PM1/PM2.5/PM10/HCHO/RH/Temperature/ Real Time Clock |
| Real Time Clock | Yes |
| Data Logger | Yes, up to 180,000 records |
| Relay Output | PhotoMOS Relay, Form A x4, SPST 100 VDC @ 1 A |
| Temperature Measurement | |
|---|---|
| Range | -20 ~ +50°C |
| Resolution | 0.1°C |
| Accuracy | ±0.6°C |
| Humidity Measurement | |
|---|---|
| Range | 0 ~ 100% RH |
| Resolution | 0.1% RH |
| Accuracy | ±5% RH |
| Life Time | 10 years |
| Dew Point | |
|---|---|
| Range | Calculated using temperature and relative humidity |
| Resolution | 0.1°C |
| HCHO Measurement | |
|---|---|
| Range | 0 to 2000 ppb (Electrochemical) |
| Resolution | 1 ppb |
| Accuracy | 0 ~ 300ppb : ±30ppb > 300ppb : ±10% |
| Response Time | ≤ 60 sec |
| Warm-up Time | 180 sec |
| Life Time | 3 years |
| PM1/PM2.5/PM10 Measurement | |
|---|---|
| Range | 0 to 1,000μg/m3 ( Laser Type) |
| Resolution | 1μg/m3 |
| Accuracy | ± 10% of FSR. |
| Response Time | 1 sec |
| Warm-up Time | 20 sec |
| Life Time | 5 years, Customer has to replace the filter patch. |
| Particle | |
|---|---|
| Sizes | 0.3μm, 0.5μm,,1μm, 2.5μm,,5μm, 10μm |
| Ethernet | |
|---|---|
| Ports | 10/100 Base-TX, 8-Pin RJ-45 x1 |
| Protocol | Modbus TCP(Ethernet) and MQTT(Ethernet) |
| COM Ports | |
|---|---|
| Baud Rate | 1200 ~ 115200 bps |
| Protocol | Modbus/RTU(RS-485) |
| Power | |
|---|---|
| Consumption | PoE: 3.2 W (Max.) Non-PoE: 2.8 W (Max.) |
| Powered from PoE | IEEE 802.3af, Class 1 (48 V) |
| Powered from Terminal Block | +8 ~ +48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 130 x 210 x 70 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Ingress Protection Rating | IP43 |
| Environment | |
|---|---|
| Operating Temperature | -20 ~ +50°C |
| Storage Temperature | -30 ~ +75°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
