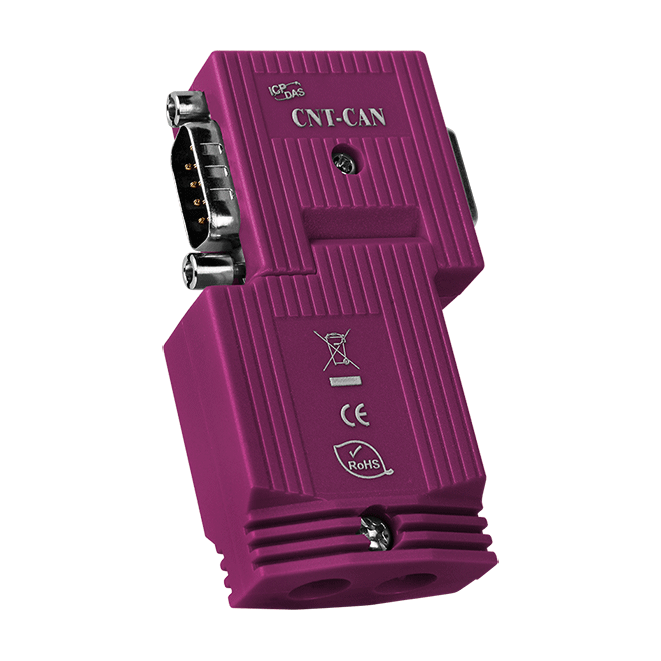

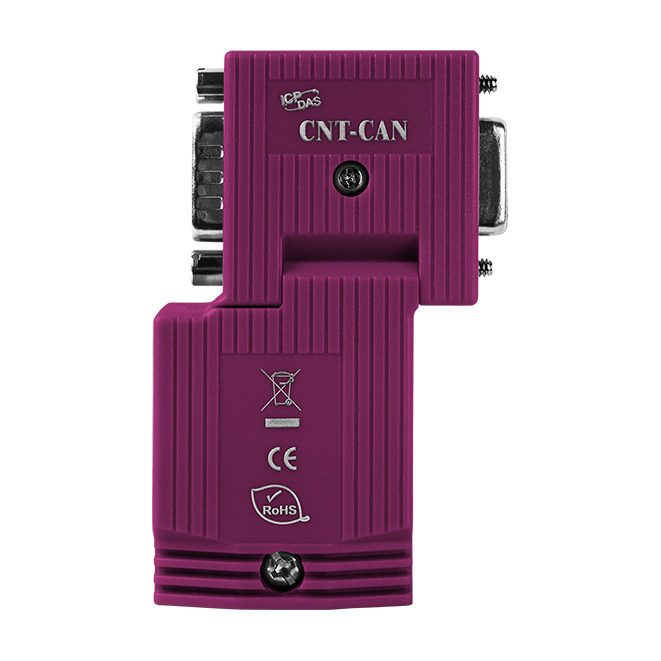

CNT-CAN
CAN bus Connector
Features
- Built-in switch to select 120Ω terminal resistor
- 2 cable entries
- Available with programming interface
Introduction
The Controller Area Network(CAN) is a serial communication way, which efficiently supports distributed real-time control with a very high level of security. The CNT-CAN connector is used to connect a CAN bus node to the CAN bus line featuring quick-connect technology, making the stripping of bus conductors superfluous. The connector is quick to install, and has a plastic housing and integrated terminating resistors. Anyway the CNT-CAN could link a CAN device to a CAN bus line easily and fast.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CAN | |
|---|---|
| Baud Rate | 10 k ~ 1 M bps |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 48 x 75 x 19 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
| Cable | |
|---|---|
| Type | 9-pin, D-Sub female connector |
| Angle | 90° cable outlet |
I/O Structure
Dimensions
