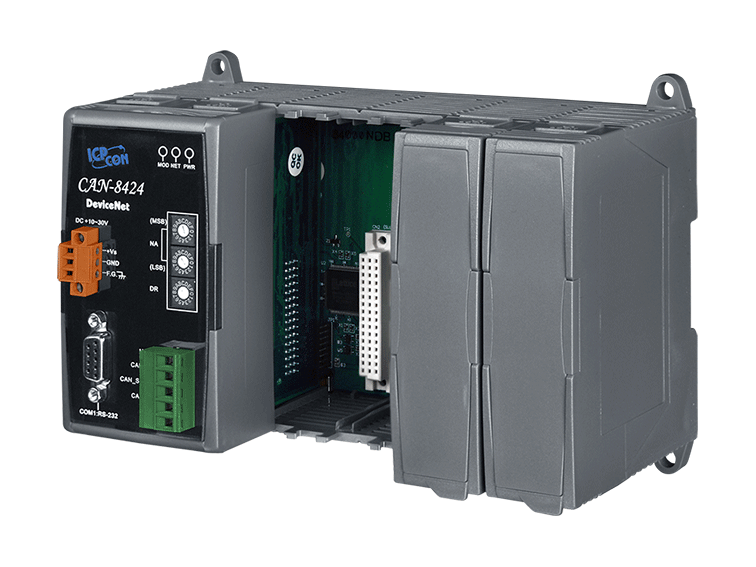

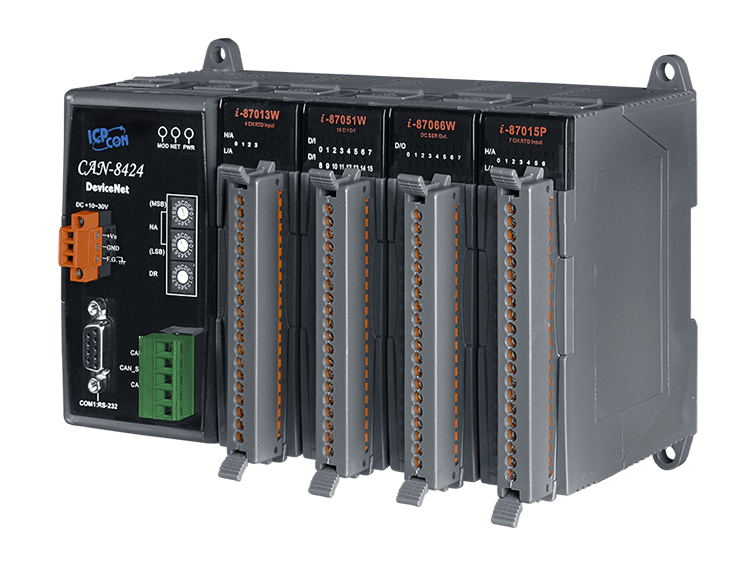

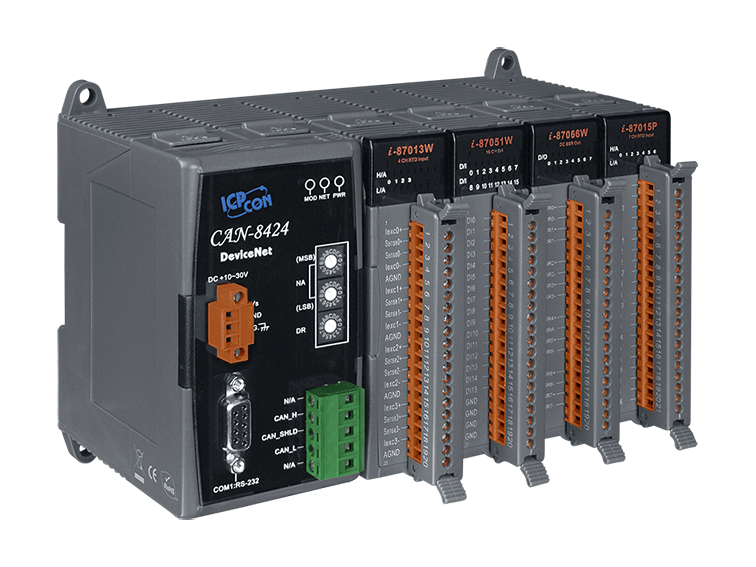

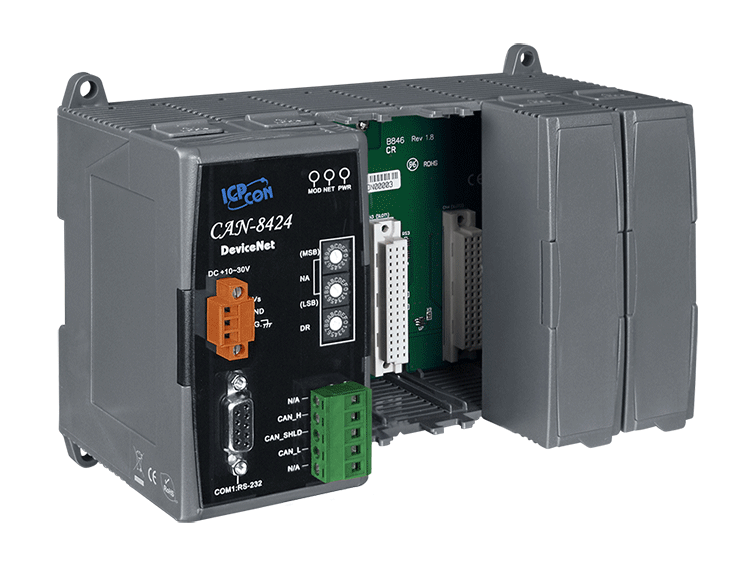

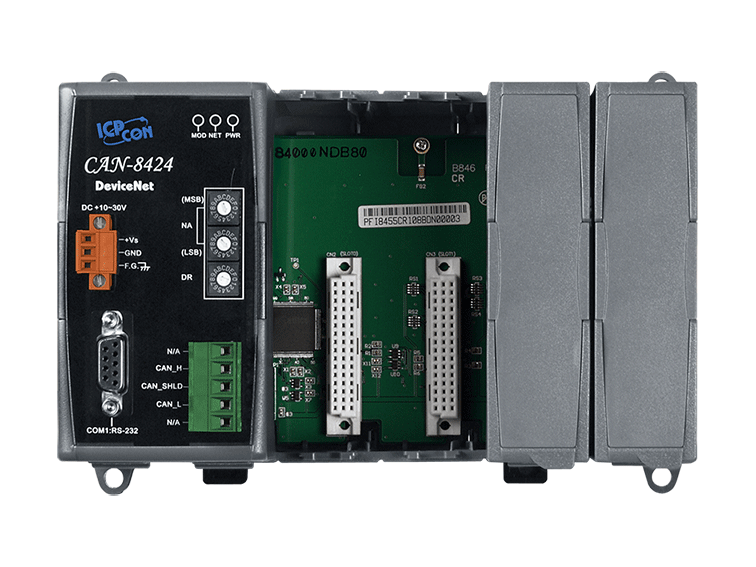

CAN-8424-G
DeviceNet Remote I/O Unit with 4 I/O Slots
Features
- DeviceNet Version : DeviceNet Specification Volume I & II, Release 2.0
- Number of Nodes : 64(Max)
- Support Message Groups : Group 2 only Server
- UCMM : Not Support
- I/O Operating Modes : Poll, Bit-Strobe, Change of State/ Cyclic
- No. of Fragment I/O : 128 Bytes (Max) (Input/ Output)
- MAC ID Setting : Rotary Switch
- Baud Rate Setting : Rotary Switch
Introduction
The CAN-8424 main unit based on the modular design offers many good features to the users and provides more flexibility in data acquisition and control system. In addition, ICP DAS also presents a CAN-8424 Utility tool to allow users to configure and create the EDS file for the specific IO modules plugged in. Therefore, users can easily apply the CAN-8424 embedded controller in DeviceNet network.

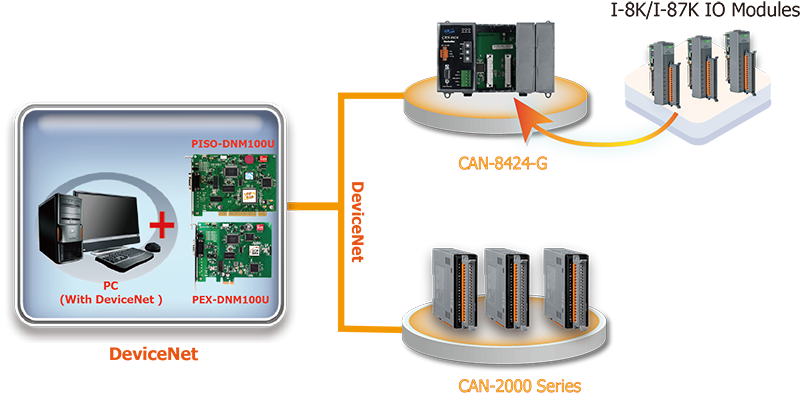

Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
Similar Products
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 bytes (battery backup, data valid for up to 10 years) |
| SRAM | 512 KB |
| Real Time Clock | Yes |
| Watchdog Timer | Watchdog IC |
| LED Indicators | |
|---|---|
| Status | 1 x Power 2 x DeviceNet status |
| I/O Expansion | |
|---|---|
| Slots | 4 slots |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (Utility Port) 9-pin male D-Sub (DTE: RxD, TxD, RTS, CTS, DTR, DSR, RI, GND) |
| DeviceNet | |
|---|---|
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Connection Supported | 1 connection for Explicit Messaging 1 connection for Polled I/O 1 connection for Bit-Strobe I/O 1 connection for COS/Cyclic I/O |
| Baud Rate | 125 k, 250 k, 500 k |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Specification | Volume I, Release 2.0 & Volume II, Release 2.0 |
| Node ID | 0 ~ 63 |
| Shutdown Message | Yes |
| Subscribe | Group 2 Only Server |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 2.5 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 188 x 132 x 91 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
CAN-8424 main unit can be plugged in the DCON(/I-8K/I-87K) IO modules to create a customized DeviceNet slave device and application. Before applying the CAN-8424 in DeviceNet applications, users must understand the relationship between these DeviceNet applications and assembly objects within CAN-8424 DeviceNet slave. In order to allow user to easy apply the device on the network, ICP DAS also provides the CAN-8423 Utility tool to configure the IO connection path, assembly and application objects information and create the EDS file of the device.
Design Flowchart
The following simple steps show how to use CAN-8x24 in the DeviceNet protocol.
