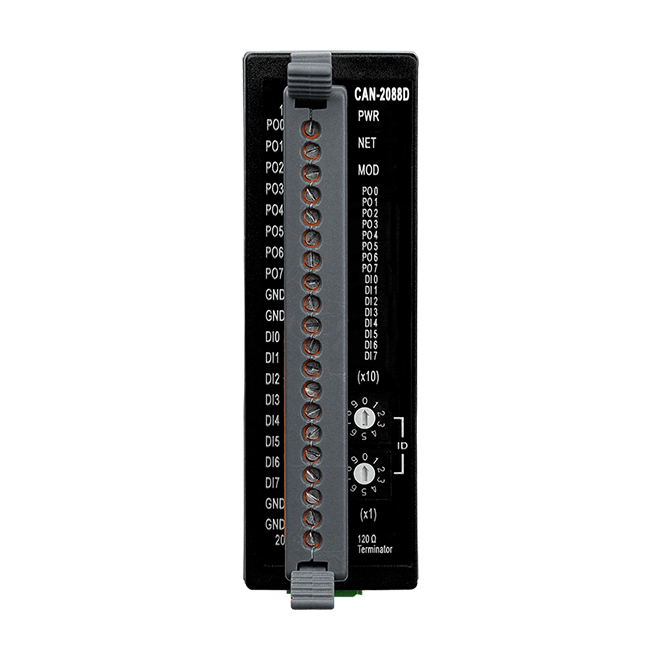

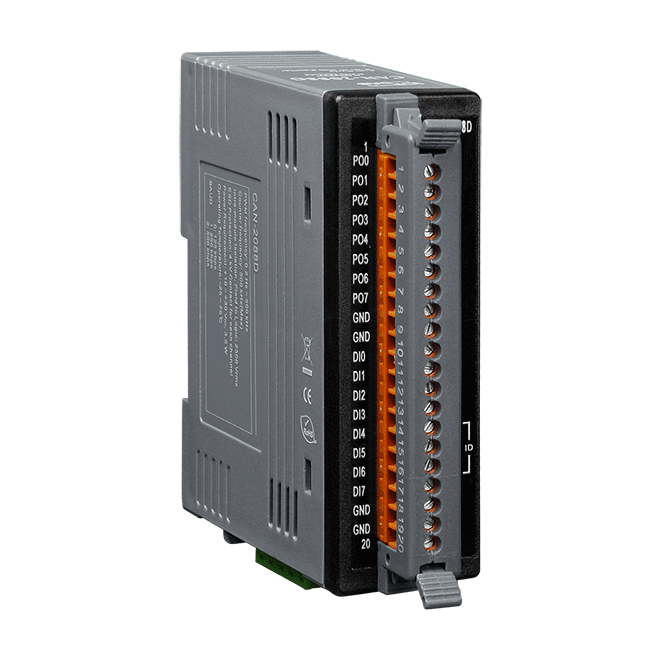

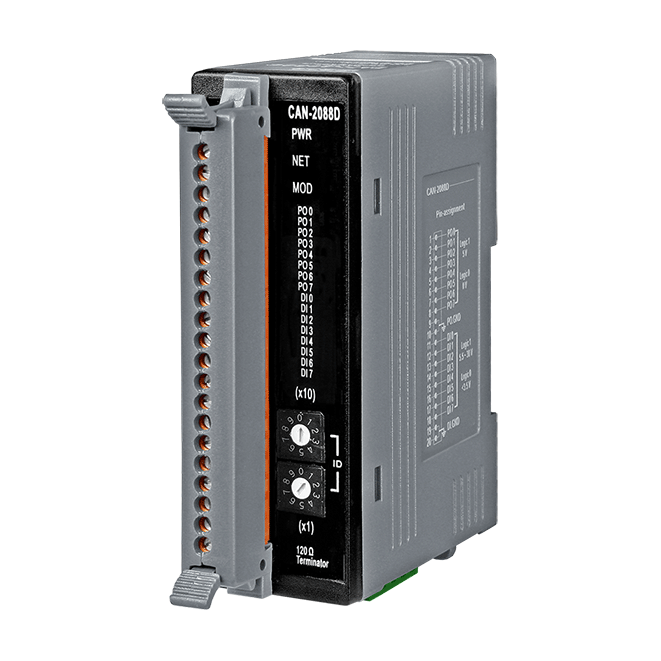

CAN-2088D
DeviceNet Slave Module of 8-channel PWM Output, 8-channel High Speed Counter Input
Features
- Hardware-controlled PWM output
- PWM output frequency: 0.2 Hz ~ 500 kHz with 0.1%~99.9% duty cycle

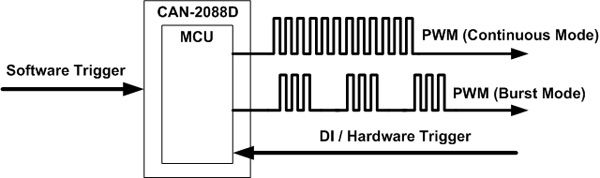

- PWM Output Modes: software trigger / hardware trigger
- Trigger each PWM output individually or all PWM outputs synchronously
- Support Burst output mode and Continue output mode
- Provide 32-bit 500 kHz high-speed counter for each DIchannel
- Pass the validation of DeviceNet conformance test
- Provide EDS file for DeviceNet master interface
Introduction
PWM (Pulse width modulation) is a powerful technique for controlling analog circuits. It uses digital outputs to generate a waveform with variant duty cycle and frequency to control analog circuits. CAN-2088D is a PWM slave module of DeviceNet protocol. It has 8 PWM output channels and 8 high speed counter channels. It can be used to develop powerful and cost effective analog control system.
Applications
- Controlling the position/speed of motors
- Dimming the brightness of lamps
- Controlling the speed of fans
- High speed counter
We have communicated with the following DeviceNet masters or gateways.
• Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
• OMRON CJ1W-DRM21
• OMRON CS1W-DRM21-V1
• OMRON C200HW-DRM21-V1
• OMRON 3G8F7-DRM21-E
• OMRON CJ1W-DRM21
• OMRON CS1W-DRM21-V1
• OMRON C200HW-DRM21-V1
• OMRON 3G8F7-DRM21-E
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| LED Indicators | |
|---|---|
| Status | 1 x Power 2 x DeviceNet status |
| Digital Input | |
|---|---|
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink |
| ON Voltage Level | +5.5 ~ +30 V |
| OFF Voltage Level | <3.5 V |
| Input Impedance | 4.7 kΩ, 1/4 W |
| PWM | |
|---|---|
| Channels | 8 |
| Sink/Source (NPN/PNP) | Source |
| Load Current | 1 mA |
| Frequency | 0.2 ~ 500 kHz (non-continuous) |
| Duty Cycle | 0.1 ~ 99.9 % |
| Mode | Burst mode, Continuous mode |
| Burst Count | 1~65535 counts |
| Trigger Start | Hardware (Start and Stop) or Software (Start and Stop) |

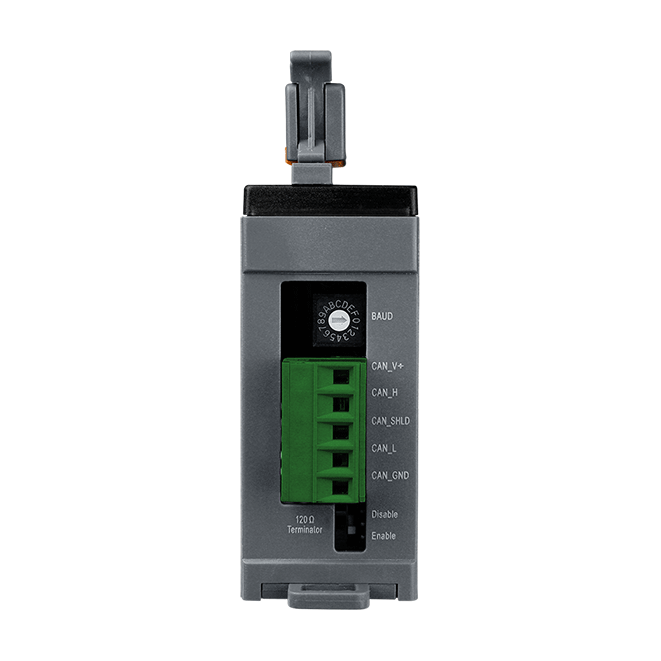

| DeviceNet | |
|---|---|
| Ports | 1 |
| Connection Supported | 1 connection for Explicit Messaging 1 connection for Polled I/O 1 connection for Bit-Strobe I/O |
| Baud Rate | 125 kbps, 250 kbps, 500 kbps |
| Terminal Resistor | Switch for 120 Ω terminal resistor |
| Specification | Volume I, Release 2.0 & Volume II, Release 2.0, Errata5 |
| Node ID | 0 ~ 63 |
| Shutdown Message | Yes |
| Heartbeat Message | Yes |
| Subscribe | Group 2 Only Server |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 2 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 32.3 x 99 x 77.5 ( W x L x H ) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 ℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
