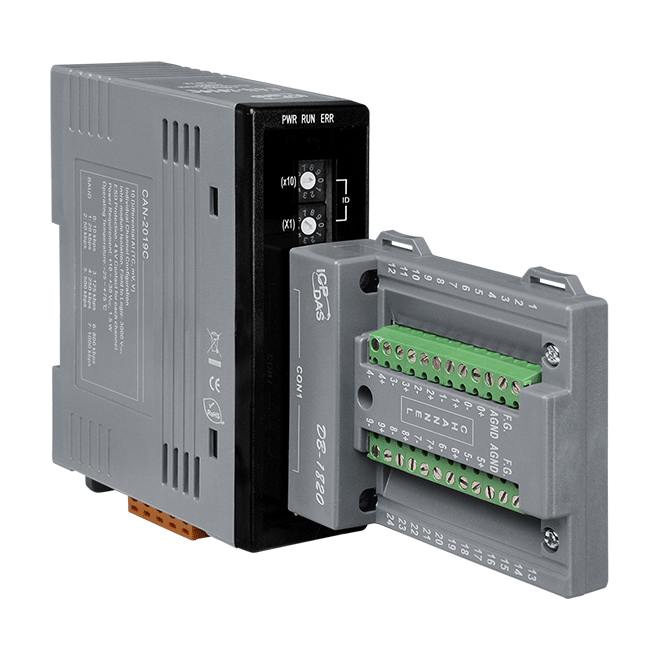

CAN-2019C/S
CANopen Slave Module of 10-channel Universal AI
Features
- NMT Slave
- Provide Pair-Connect function
- Provide default EDS file
- ESD Protection 4KV Contact for each channel
- Support Power supply 10 ~30 VDC
- Support CiA-301 v4.02, CiA-401 v2.1
- Support PDO Mapping
Introduction
CAN-2019C module follows the DS-301 version 4.02 and DSP-401 version 2.1. You can access the thermocouple input status and set the configuration by using standard CANopen protocol. CAN-2019C has passed the validation of the CiA CANopen Conformance Test tool. Therefore, you can use it with standard CANopen master easily by applying the EDS file. The CAN-2019C is a 10-channel universal analog input CANopen slave module with voltage and current input types. It provides extremely accurate thermocouple measurement and automatically cold-junction compensation for each channel. By owing to the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements.

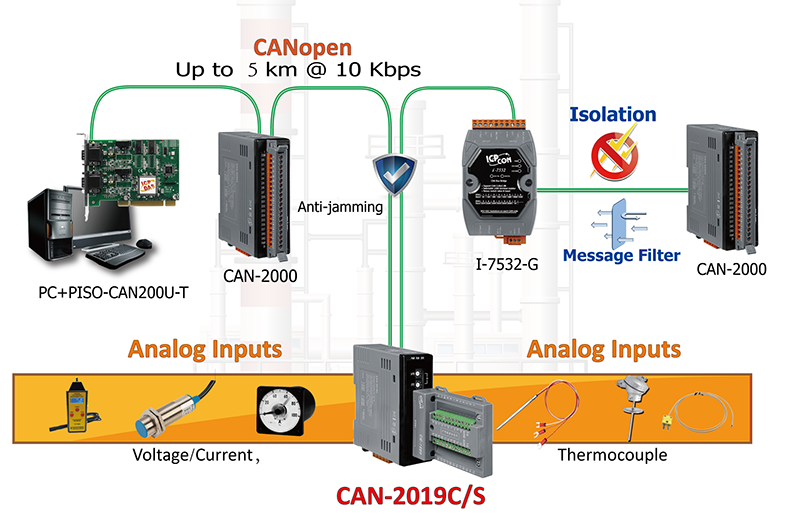

Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| Watchdog Timer | Hardware watchdog |
| LED Indicators | |
|---|---|
| Status | 3 LEDs to PWR, RUN and ERR |
| Analog Input | |
|---|---|
| Channels | 10 (Differential) |
| Sensor Type | +/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V, +/- 5V, +/- 10V +/-20mA,(Requires Optional External 125 Ohm Resistor) Thermocouple (J, K, T, E, R, S, B, N, C) |
| Resolution | 16-bit |
| Accuracy | +/-0.1% FSR |
| Sampling Rate | 10 Samples/Sec. (Total) |
| Input Impedance | >400 kΩ |
| Common Mode Rejection | 86 dB Min. |
| Normal Mode Rejection | 100 dB |
| Overvoltage Protection | 240 Vrms |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| Zero Drift | +/- 10 μV/ °C |
| Span Drift | +/-25 ppm/ °C |
| Isolation | 3000 VDC |
| CANopen | |
|---|---|
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Built-in 120Ω |
| Protocol | CiA 301 v4.02, CiA 401 v2.1 |
| Node ID | 1 ~ 99 |
| No. of PDOs | 10 RxPDO , 10 TxPDO |
| PDO Mode | Event-triggered, remotely-requested, Cyclic and acyclic SYNC |
| Error Control | Node Guarding protocol / Heartbeat Producer |
| NMT | Slave |
| EMCY Message | Yes |
| Power | |
|---|---|
| Consumption | 1.5 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 x 99 x 78 ( W x L x H ) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
| Type Code | Temperature Range (°C) |
|---|---|
| J | -210 °C ~ +1200 °C |
| K | -270 °C ~ +1372 °C |
| T | -270 °C ~ +400 °C |
| E | -270 °C ~ +1000 °C |
| R | -50 °C ~ +1765 °C |
| S | -50 °C ~ +1765 °C |
| B | 0 °C ~ +1820 °C |
| N | -270 °C ~ +1300 °C |
| C | 0 °C ~ +2320 °C |
