CAN-2018C/S

CANopen Slave Module of 8-channel Thermocouple Input
CAN-2018C/S
CAN-2018C/S
CAN-2018C/S
CAN-2018C/S

Features

  • NMT Slave
  • NMT Error Control support Guarding and Heartbeat
  • Provide default EDS file
  • Passed the validation of CiA CANopen conformance test tool
  • ESD Protection 4 KV Contact for each channel
  • Support Power Supply +10 ~ +30 VDC
  • Support CiA DS-301 v4.02, DSP-401 v2.1
  • Support Dynamic PDO
CE FCC RoHS WEEE

Introduction

CAN-2018C module follows the DS-301 version 4.02 and DSP-401 version 2.1. You can access the thermocouple input status and set the configuration by using standard CANopen protocol. CAN-2018C has passed the validation of the CiA CANopen Conformance Test tool. Therefore, you can use it with standard CANopen master easily by applying the EDS file. CAN-2018C has 8-channel thermocouple input. It can be used to various applications. By owing to the CANopen masters of ICP DAS, you can quickly build a CANopen network to approach your requirements. For more information about the CANopen master interfaces and other CANopen products, please refer to the following web site, please refer to the following web site.

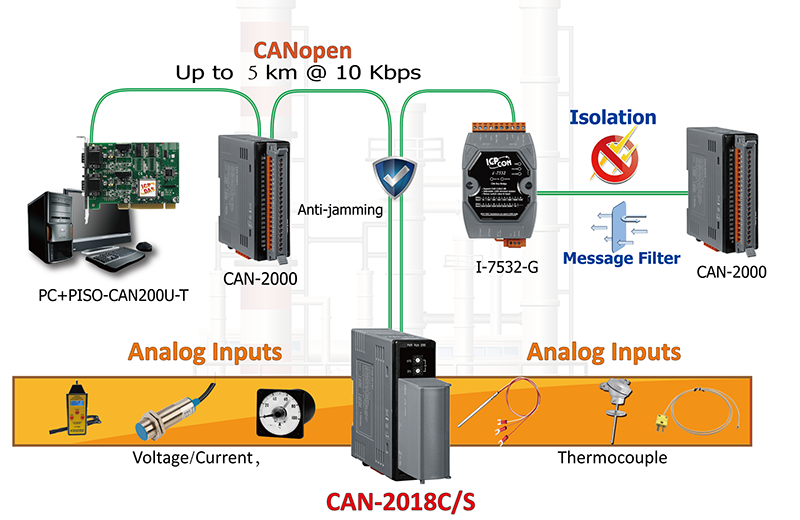

Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES CAN-2018C/S     CR DESCRIPTIONCANopen Slave Module of 8-channel Thermocouple Input (RoHS)
Includes a CN-1824 daughter board
This combination include other products.

Similar Products

CPU Module
Watchdog Timer Hardware watchdog
LED Indicators
Status 3 LEDs to PWR, RUN and ERR
Analog Input
Channels 8
Sensor Type +/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V
+/-20mA,(Requires Optional External 125 Ohm Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C)
Resolution 16-bit
Accuracy +/-0.1% FSR
Sampling Rate 10 Samples/Sec. (Total)
Input Impedance >400 kΩ
Common Mode Rejection 86 dB
Normal Mode Rejection 100 dB
Overvoltage Protection 240 Vrms
Individual Channel Configuration Yes
Open Wire Detection Yes
Zero Drift +/- 10 μV/ °C
Span Drift +/- 25 ppm/ °C
Isolation 3000 VDC
CANopen
Baud Rate 10 k ~ 1 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Built-in 120Ω
Protocol CiA 301 v4.02, CiA 401 v2.1
Node ID 1 ~ 99
No. of PDOs 10 RxPDO , 10 TxPDO
PDO Mode Event Triggered, Remotely requested, Cyclic and acyclic SYNC
Error Control Node Guarding protocol / Heartbeat Producer
NMT Slave
EMCY Message Yes
Power
Consumption 1.5 W
Mechanical
Dimensions (mm) CAN-2018C, 33 x 99 x 78 ( W x L x H )
CN-1824, 29 x 43 x 83 ( W x L x H )
Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing
