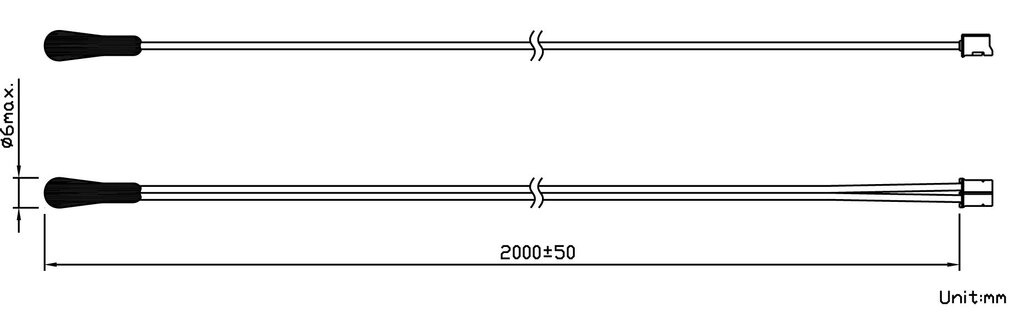

CA-TM-P100-L020P
NTC Thermistor, Epoxy Resin to Connector Cable (-40 °C~+80 °C)
Features
- Resistance: R25=10K(Ω)±1%
- B Constant: R25/85=3435(K)±1%
- Dissipation Factor: ≧3 (mW/°C)
- Thermal Time Constant: ≦ 10 (sec)
- Measuring Temperature Range: -40 °C ~ +80 °C
- Material of Coating: Epoxy Resin (Color: Black)
- Wire: 1.98m, UL2468 #24AWG*2C (TS)
- Connector: JST PHR-2 or CS JS-1124-2 or WST P2-I20001 or JMT JP24181-2 or Equivalent (Color: White)
Introduction
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
