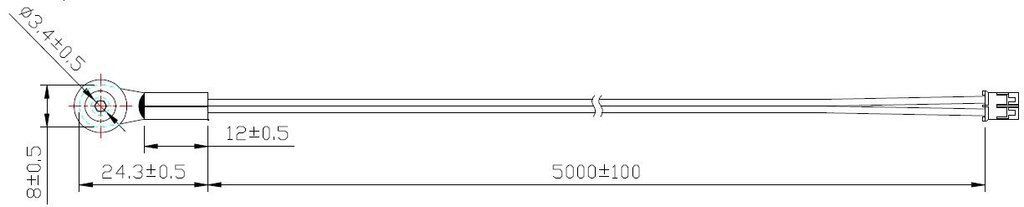

CA-TM-M200-L050P
NTC Thermistor, Magnet to Connector Cable (-40 °C~+105 °C)
Features
- Resistance : R25=10K(Ω)±1%
- B Constant : B25/85=3435(K)±1%
- Dissipation Facto : ≧3 (mW/℃)
- Thermal Time Constant : ≦ 15 (sec)
- Operating Temperature Range : -40 °C ~ +105 °C
- Material of Coating : Epoxy Resin (Color: Black)
- Wire : 5.00m, UL2651 #26AWG*2C (TS)
- Connector : JST PHR-2 or CS JS-1124-2 or WST P2-I20001 or JMT JP24181-2 or Equivalent (Color: White)
- Magnet : M3-N35-D10xT 2.8 mm 80 °C
- Electrical Terminal : φ3.4+φ5x12 mm
